BC92 Series
Manufacturer: Quectel
Beta
⌘K

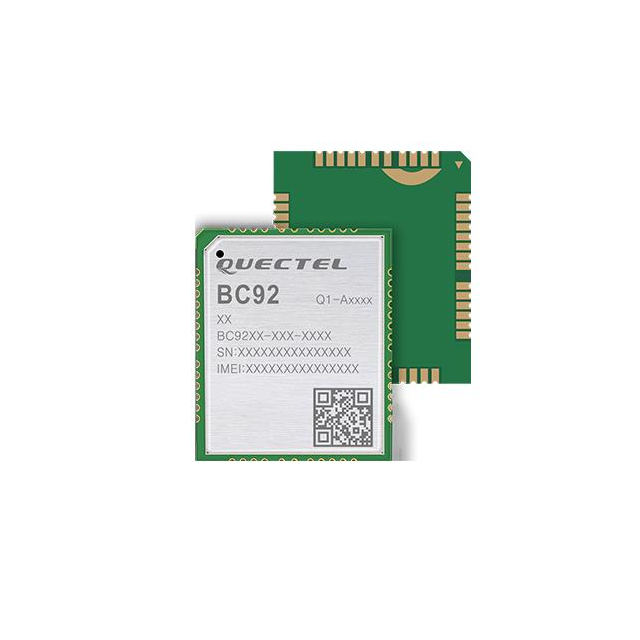

CELLULAR MODULE, GSM, LTE CAT NB2, NB-IOT, 3.4V TO 4.2V, 23.6MM X 19.9MM X 2.2MM
| Part | Utilized IC / Part | Power - Output | Frequency | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Current - Receiving | Data Rate | Operating Temperature [Min] | Operating Temperature [Max] | Serial Interfaces | Protocol | Sensitivity | RF Family/Standard | Package / Case | Antenna Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Quectel | RDA8909B | 33 dBm | 1.8 GHz 1.9 GHz 850 MHz 900 MHz | Surface Mount | 3.4 V | 4.2 V | 1.2 mA | 158.5 kbps | -25 °C | 75 ░C | ADC UART | GPRS GSM LTE | -129 dBm | Cellular | 50-SMD Module | Antenna Not Included |
