DG1209 Series

Low-Leakage, Single 8-Channel and Dual 4-Channel, Analog Multiplexer

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Low-Leakage, Single 8-Channel and Dual 4-Channel, Analog Multiplexer

Part	Operating Temperature [Max]	Operating Temperature [Min]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Crosstalk	Supplier Device Package	Voltage - Supply, Dual (V±) [Max]	Voltage - Supply, Dual (V±) [Min]	Mounting Type	Package / Case	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	-3db Bandwidth	Current - Leakage (IS(off)) (Max) [Max]	Switch Circuit	Charge Injection	Number of Circuits	On-State Resistance (Max) [Max]	Channel-to-Channel Matching (ΔRon) [custom]	Multiplexer/Demultiplexer Circuit	Channel-to-Channel Matching (ΔRon)	Supplied Contents	Function	Contents	Utilized IC / Part	Primary Attributes [Max]	Primary Attributes [Min]	Primary Attributes	Type	Package / Case [y]	Package / Case [y]	Voltage - Supply, Dual (V±)	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]
Analog Devices Inc./Maxim Integrated DG1209ETE+T	85 °C	-40 C	400 ns	400 ns	-80 dB	16-TQFN (4x4)	20 V	-5 V	Surface Mount	16-WQFN Exposed Pad	4 pF	15 pF	250 MHz	1 nA	SP4T - Open	0.5 pC	2	160 Ohms	10 Ohm	4:1
Analog Devices Inc./Maxim Integrated DG1209ETE+	85 °C	-40 C	400 ns	400 ns	-80 dB	16-TQFN (4x4)	20 V	-5 V	Surface Mount	16-WQFN Exposed Pad	4 pF	10 pF	250 MHz	1 nA		0.5 pC	2	160 Ohms		4:1	30 Ohm

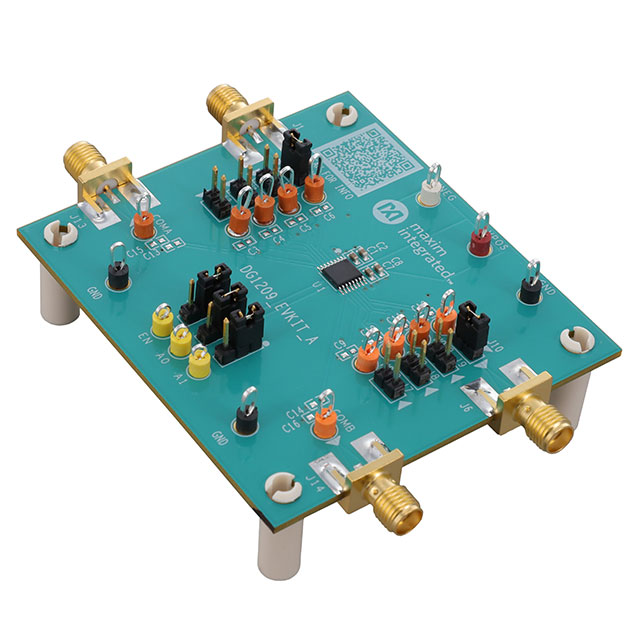

Analog Devices Inc./Maxim Integrated DG1209EVKIT#																						Board(s)	Multiplexer	Board(s)	DG1209	20 V	-20 V	Tri-Output DC Power Supply	Interface
Analog Devices Inc./Maxim Integrated DG1209EUE+T	85 °C	-40 C	400 ns	400 ns	-80 dB	16-TSSOP	20 V	-5 V	Surface Mount	16-TSSOP	4 pF	15 pF	250 MHz	1 nA	SP4T - Open	0.5 pC	2	160 Ohms	10 Ohm	4:1										4.4 mm	0.173 in
Analog Devices Inc./Maxim Integrated DG1209EUE+	85 °C	-40 C	400 ns	400 ns	-80 dB	16-TSSOP			Surface Mount	16-TSSOP	15 pF	10 pF	250 MHz	30 µA		0.5 pC	2	160 Ohms		4:1	30 Ohm									4.4 mm	0.173 in	15 V	10 V	20 V

Catalog

Low-Leakage, Single 8-Channel and Dual 4-Channel, Analog Multiplexer

Description

The DG1208 and DG1209 are low-leakage, low-charge injection, single 8-channel or dual 4-channel multiplexing switch devices. The DG1208 uses three selection inputs A2, A1, and A0 to determine the switching logic; the DG1209 uses two selection inputs A1 and A0. On both devices, an enable (EN) input is used to enable or disable the device.The low capacitance and low charge injection of the DG1208/DG1209 make them ideal for automatic test equipment systems, data acquisition systems and sample-and- hold systems where low glitch and fast settling time are required.The DG1208/DG1209 are available in 4mm x 4mm 16-lead TQFN or 16-lead TSSOP packages. The devices are specified for operation over the -40°C to +85°C temperature range.ApplicationsAutomatic Test Equipment SystemsData Acquisition SystemsSample-and-Hold SystemsCommunication SystemsAudio and Video Routing
