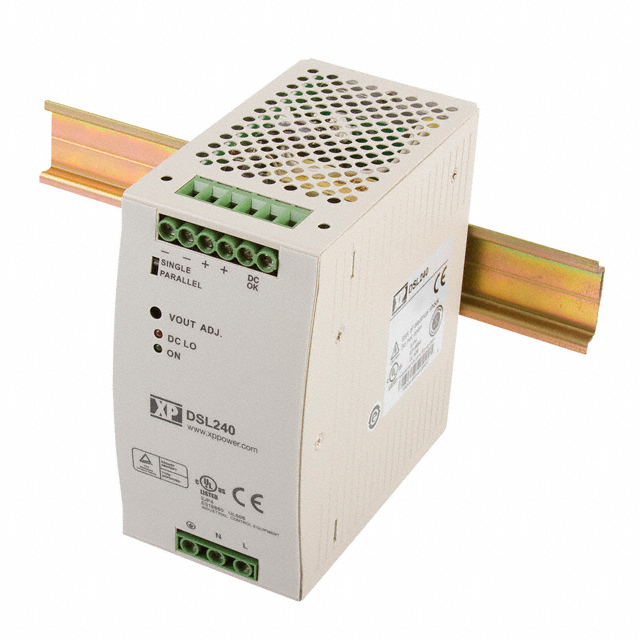

DSL240 Series

Manufacturer: XP Power

Catalog

AC/DC DIN RAIL SUPPLY 24V 240W

Part	Minimum Load Required	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Standard Number	Power (Watts)	Features	Current - Output (Max) [Max]	Efficiency	Voltage - Isolation	Number of Outputs	Voltage - Output 1	Input Type	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Applications
XP Power DSL240PS24-I		CE cULus TUV	5.65 in	4.59 in	116.6 mm	143.5 mm	64 mm	2.52 in	62368-1	240 Watts	Adjustable Output Load Sharing Universal Input	10 A	93 %	3000 V	1	24 V	AC	264 VAC	88 VAC	ITE (Commercial)
XP Power DSL240PS12-I		CE cULus TUV	5.65 in	4.59 in	116.6 mm	143.5 mm	64 mm	2.52 in	62368-1	192 W	Adjustable Output Load Sharing Universal Input	16 A	90 %	3000 V	1	12 V	AC	264 VAC	88 VAC	ITE (Commercial)
