IRF6712 Series
Manufacturer: INFINEON
Beta
⌘K

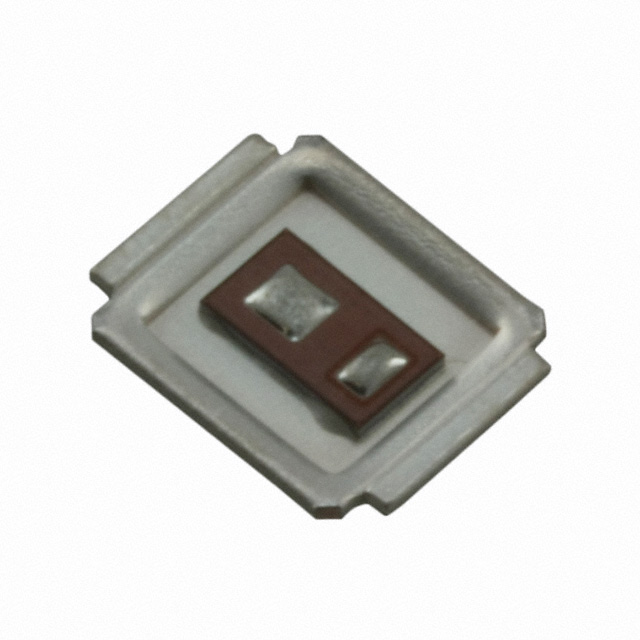

STRONGIRFET™ N-CHANNEL POWER MOSFET ; DIRECTFET™ S PACKAGE; 4.9 MOHM;
| Part | Mounting Type | Vgs(th) (Max) @ Id | Package / Case | Vgs (Max) | FET Type | Current - Continuous Drain (Id) @ 25°C | Input Capacitance (Ciss) (Max) @ Vds | Supplier Device Package | Drain to Source Voltage (Vdss) | Technology | Operating Temperature [Min] | Operating Temperature [Max] | Rds On (Max) @ Id, Vgs | Drive Voltage (Max Rds On, Min Rds On) | Power Dissipation (Max) | Gate Charge (Qg) (Max) @ Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Surface Mount | 2.4 V | DirectFET™ Isometric SQ | 20 V | N-Channel | 17 A 68 A | 1570 pF | DIRECTFET™ SQ | 25 V | MOSFET (Metal Oxide) | -40 °C | 150 °C | 4.9 mOhm | 4.5 V 10 V | 2.2 W 36 W | 18 nC |
