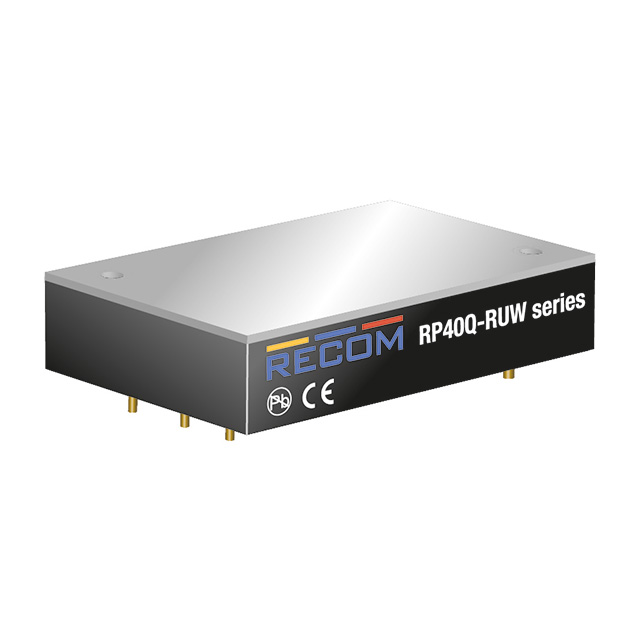

RP40Q-RUW Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, RAILWAY, QUARTER BRICK, 12:1, 40 W, 1 OUTPUT, 24 V

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Number of Outputs	Current - Output (Max) [Max]	Package / Case	Applications	Voltage - Isolation	Supplier Device Package	Efficiency	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Type	Size / Dimension [z]	Size / Dimension [y]	Control Features	Standard Number	Approval Agency
Recom Power RP40Q-11024SRUW/P-HC	OCP OTP OVP Remote On/Off SCP UVLO	105 C	-40 °C	Through Hole	16 V	24 V	1	1.67 A	Quarter Brick	ITE (Commercial) Railway	3000 V	Quarter Brick	90 %	40 W	36.8 mm	1 in	1.45 in	57.9 mm	25.4 mm	2.28 "	160 V	Isolated Module

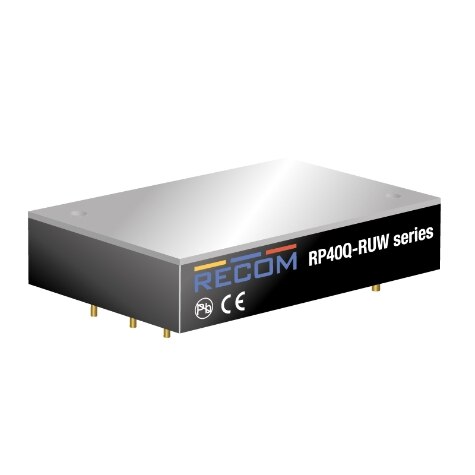

Recom Power RP40Q-11024SRUW/P	OCP OTP OVP Remote On/Off SCP UVLO	105 C	-40 °C	Through Hole	16 V	24 V	1	1.67 A	Quarter Brick	ITE (Commercial) Railway	3000 V	Quarter Brick	90 %	40 W		0.5 in	1.45 in	57.9 mm		2.28 "	160 V	Isolated Module	12.7 mm	36.8 mm
Recom Power RP40Q-11048SRUW/P-HC	OCP OTP OVP Remote On/Off SCP UVLO	105 C	-40 °C	Through Hole	16 V	48 V	1	830 mA	Quarter Brick	ITE (Commercial) Railway	3000 V	Quarter Brick	89 %	40 W	36.8 mm	1 in	1.45 in	57.9 mm	25.4 mm	2.28 "	160 V	Isolated Module
Recom Power RP40Q-11005SRUW/N-HC	OCP OTP OVP Remote On/Off SCP UVLO	105 C	-40 °C	Through Hole	16 V	5 V	1	8 A	Quarter Brick	ITE (Commercial) Railway	3000 V	Quarter Brick	91 %	40 W	36.8 mm	1 in	1.45 in	57.9 mm	25.4 mm	2.28 "	160 V	Isolated Module

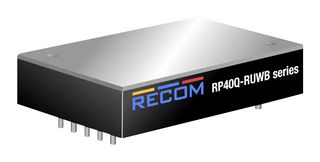

Recom Power RP40Q-11015SRUWB/P	Adjustable Output Remote On/Off Remote Sense Standby Output	105 C	-40 °C	Through Hole	14 V	15 V	1	2.67 A	Quarter Brick	ITE (Commercial)	3000 V	Quarter Brick	91 %	40 W		0.5 in	1.45 in	57.9 mm		2.28 "	160 V	Isolated Module	12.7 mm	36.8 mm	Active High Enable	62368-1	CE cURus
Recom Power RP40Q-11012SRUW/N-HC	OCP OTP OVP Remote On/Off SCP UVLO	105 C	-40 °C	Through Hole	16 V	12 V	1	3.33 A	Quarter Brick	ITE (Commercial) Railway	3000 V	Quarter Brick	90 %	40 W	36.8 mm	1 in	1.45 in	57.9 mm	25.4 mm	2.28 "	160 V	Isolated Module
Recom Power RP40Q-11024SRUW/N	OCP OTP OVP Remote On/Off SCP UVLO	105 C	-40 °C	Through Hole	16 V	24 V	1	1.67 A	Quarter Brick	ITE (Commercial) Railway	3000 V	Quarter Brick	90 %	40 W		0.5 in	1.45 in	57.9 mm		2.28 "	160 V	Isolated Module	12.7 mm	36.8 mm
Recom Power RP40Q-11015SRUW/P-HC	OCP OTP OVP Remote On/Off SCP UVLO	105 C	-40 °C	Through Hole	16 V	15 V	1	2.67 A	Quarter Brick	ITE (Commercial) Railway	3000 V	Quarter Brick	90 %	40 W	36.8 mm	1 in	1.45 in	57.9 mm	25.4 mm	2.28 "	160 V	Isolated Module
Recom Power RP40Q-11012SRUWB/P	Adjustable Output Remote On/Off Remote Sense Standby Output	105 C	-40 °C	Through Hole	14 V	12 V	1	3.33 A	Quarter Brick	ITE (Commercial)	3000 V	Quarter Brick	91 %	40 W		0.5 in	1.45 in	57.9 mm		2.28 "	160 V	Isolated Module	12.7 mm	36.8 mm	Active High Enable	62368-1	CE cURus
Recom Power RP40Q-11015SRUW/P	OCP OTP OVP Remote On/Off SCP UVLO	105 C	-40 °C	Through Hole	16 V	15 V	1	2.67 A	Quarter Brick	ITE (Commercial) Railway	3000 V	Quarter Brick	90 %	40 W		0.5 in	1.45 in	57.9 mm		2.28 "	160 V	Isolated Module	12.7 mm	36.8 mm
