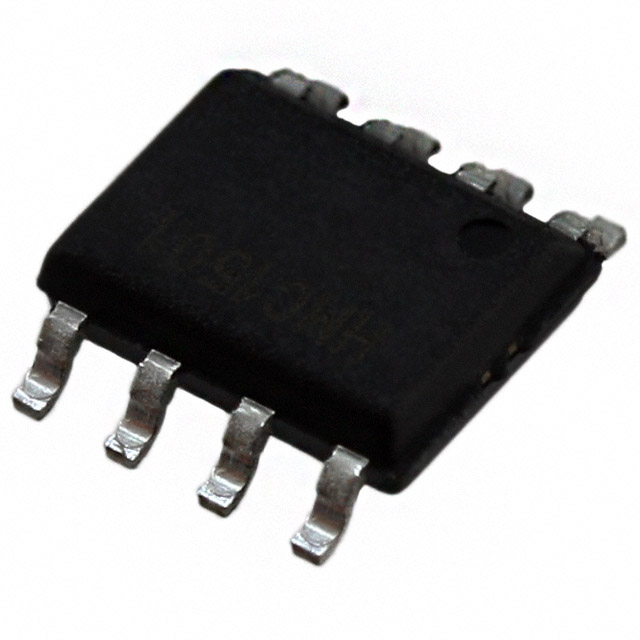

HMC1501 Series
Manufacturer: Honeywell Aerospace
Beta
⌘K
SENSOR ANGLE 90DEG 8MM SMD
| Part | Actuator Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Technology | Termination Style | Resistance | Rotation Angle - Electrical, Mechanical | Mounting Type | Linear Range [Max] | Linear Range [Max] | Linear Range [Min] | Linear Range [Min] | Output | For Measuring | Package / Case | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Aerospace | External Magnet Not Included | 1 V | 25 V | 125 °C | -40 C | 8-SOIC | Magnetoresistive | Gull Wing | 6.5 kOhms | 90 ° | Surface Mount | 8 mm | 0.31 " | 0 " | 0 mm | Wheatstone Bridge | Angle Linear Rotary | 0.154 in | 8-SOIC | 3.9 mm |
