THA Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CBL CLAMP P-TYPE BLACK FASTENER

Part	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Width	Width	Panel Hole Size	Panel Hole Size	Color	Height	Height	Type	Type Attributes	Material	Mounting Type	Length	Length	Opening Size [Max]	Opening Size [Min]	Opening Size [Max]	Opening Size [Min]	Opening Size	Length [x]	Height [z]	Height [z]	Length [x]	Opening Size [Max]
TE Connectivity AMP Connectors THA-PDKG-11	25.4 mm	1 in	12.7 mm	0.5 in	0.201 in	5.1 mm	Black	27.3 mm	1.075 "	Clamp P-Type	Cushioned Hinged	Polyetheretherketone (PEEK) Glass Filled	Fastener	43.21 mm	1.701 "	19.05 mm	15.88 mm	0.75 "	0.625 in
TE Connectivity AMP Connectors THA-PDKG-05	20.2 mm	0.795 in	12.7 mm	0.5 in	0.201 in	5.1 mm	Black	16.51 mm	0.65 in	Clamp P-Type	Cushioned Hinged	Polyetheretherketone (PEEK) Glass Filled	Fastener	32.51 mm				0.375 in	0.25 in	6.35 mm 9.53 mm	1.28 in

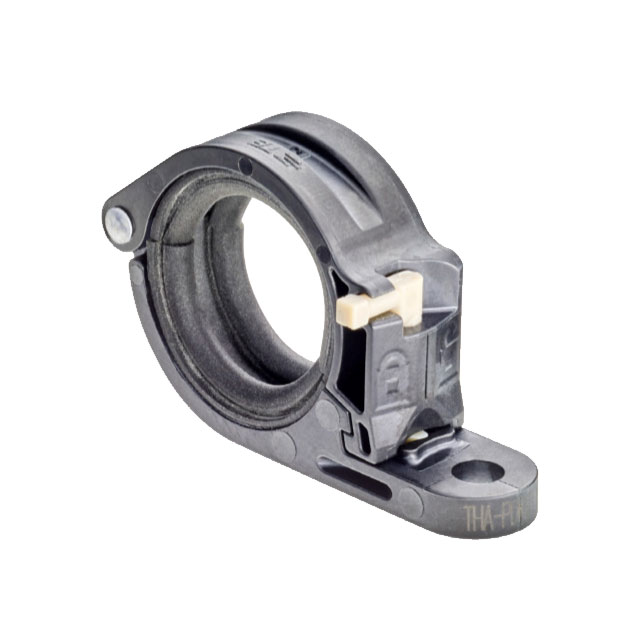

TE Connectivity AMP Connectors THA-PDKG-09			12.7 mm	0.5 in	0.201 in	5.1 mm	Black			Clamp P-Type	Cushioned Hinged	Polyetheretherketone (PEEK) Glass Filled	Fastener			15.88 mm	12.7 mm	0.625 in	0.5 in			23.7 mm	0.933 in
TE Connectivity AMP Connectors THA-PDKG-15	28.6 mm	1.126 in	12.7 mm	0.5 in	0.201 in	5.1 mm	Black	34.5 mm	1.358 in	Clamp P-Type	Cushioned Hinged	Polyetheretherketone (PEEK) Glass Filled	Fastener	49.8 mm	1.961 in	25.4 mm	22.22 mm	1 in	0.875 in

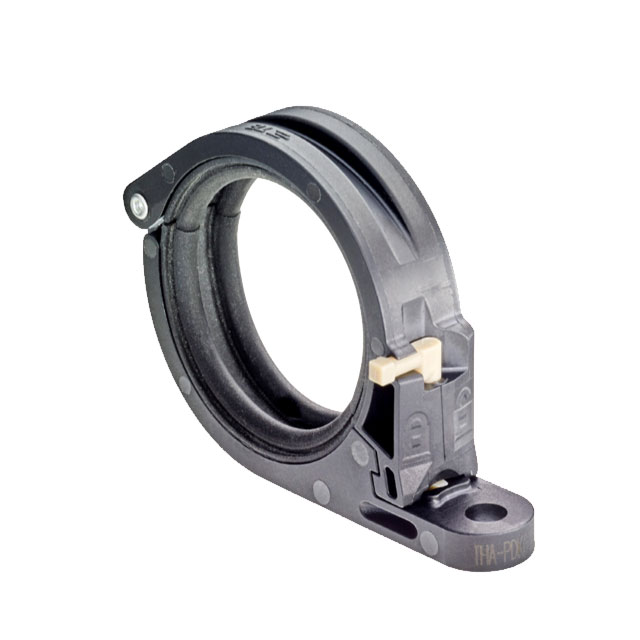

TE Connectivity AMP Connectors THA-PDKG-19	31.6 mm	1.244 in	12.7 mm	0.5 in	0.201 in	5.1 mm	Black			Clamp P-Type	Cushioned Hinged	Polyetheretherketone (PEEK) Glass Filled	Fastener	56.2 mm		31.75 mm	28.58 mm	1.25 in	1.125 in		2.213 "	41.7 mm	1.642 "

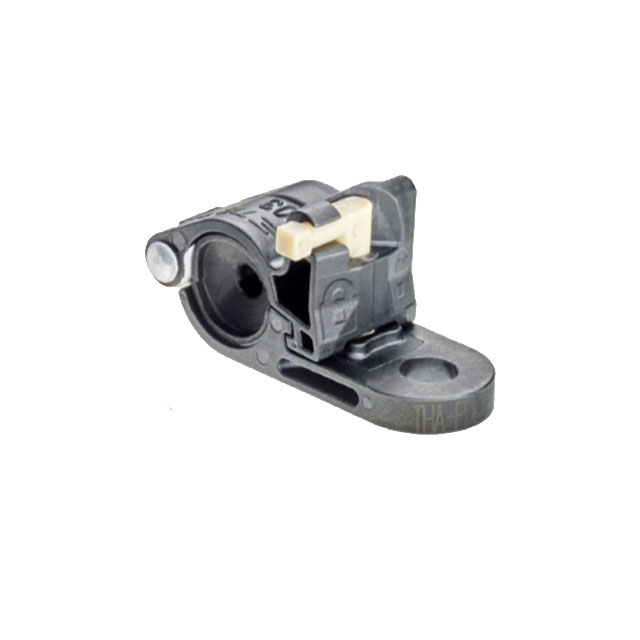

TE Connectivity AMP Connectors THA-PDKG-03	18.2 mm	0.717 in	12.7 mm	0.5 in	0.201 in	5.1 mm	Black	12.9 mm	0.508 in	Clamp P-Type	Cushioned Hinged Locking	Polyetheretherketone (PEEK) Glass Filled	Fastener			6.35 mm	3.18 mm	0.25 in	0.125 in		1.122 in			28.5 mm
TE Connectivity AMP Connectors THA-PDKG-05
TE Connectivity AMP Connectors THA-PDKG-13	26.7 mm	1.051 in	12.7 mm	0.5 in	0.201 in	5.1 mm	Black			Clamp P-Type	Cushioned Hinged	Polyetheretherketone (PEEK) Glass Filled	Fastener			22.22 mm	19.05 mm	0.875 in	0.75 "		1.819 in	30.91 mm	1.217 in	46.2 mm
TE Connectivity AMP Connectors THA-PDKG-07	21.59 mm	0.85 in	12.7 mm	0.5 in	0.201 in	5.1 mm	Black			Clamp P-Type	Cushioned Hinged	Polyetheretherketone (PEEK) Glass Filled	Fastener			12.7 mm	9.52 mm		0.375 in		1.406 in	20.1 mm	0.791 in	35.71 mm	12.7 mm
TE Connectivity AMP Connectors THA-PDKG-03
