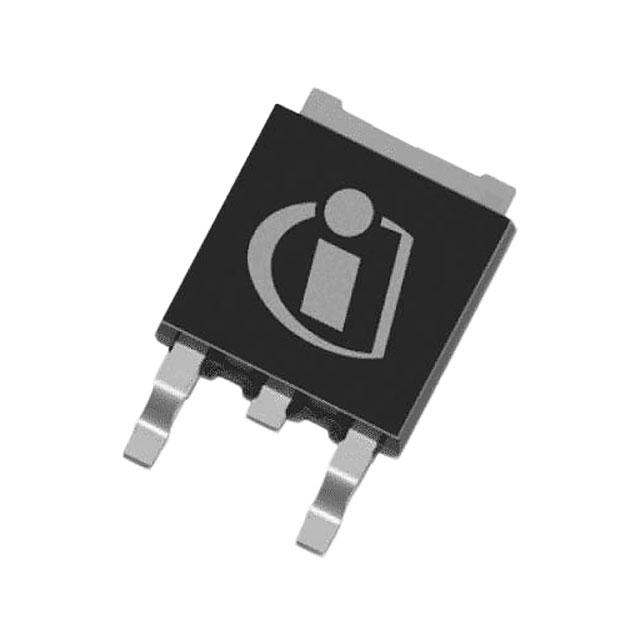

IPD70 Series

Manufacturer: INFINEON

Catalog

MOSFET N-CH 700V 7.4A TO252-3

Part	Input Capacitance (Ciss) (Max) @ Vds	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	Vgs (Max)	Package / Case	Gate Charge (Qg) (Max) @ Vgs	Power Dissipation (Max)	Mounting Type	FET Type	Technology	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Qualification	Grade	Power Dissipation (Max) [Max]	Vgs (Max) [Max]	Vgs (Max) [Min]
INFINEON IPD70R950CEAUMA1	328 pF	3.5 V	-40 °C	150 °C	7.4 A	700 V	10 V	950 mOhm	20 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	15.3 nC	68 W	Surface Mount	N-Channel	MOSFET (Metal Oxide)	PG-TO252-3
INFINEON IPD70R900P7SAUMA1		3.5 V	-40 °C	150 °C	6 A	700 V	10 V	900 mOhm	16 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	6.8 nC	30.5 W	Surface Mount	N-Channel	MOSFET (Metal Oxide)	PG-TO252-3	211 pF
INFINEON IPD70N12S3L12ATMA1	5550 pF	2.4 V	-55 °C	175 °C	70 A	120 V	4.5 V 10 V		20 V	DPAK (2 Leads + Tab) SC-63 TO-252-3		125 W	Surface Mount	N-Channel	MOSFET (Metal Oxide)	PG-TO252-3-11		77 nC	AEC-Q101	Automotive
INFINEON IPD70R1K4CEAUMA1	225 pF	3.5 V	-40 °C	150 °C	5.4 A	700 V	10 V	1.4 Ohm	20 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	10.5 nC	53 W	Surface Mount	N-Channel	MOSFET (Metal Oxide)	PG-TO252-3
INFINEON IPD70R600P7SAUMA1		3.5 V	-40 °C	150 °C	8.5 A	700 V	10 V	600 mOhm	16 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	10.5 nC	43 W	Surface Mount	N-Channel	MOSFET (Metal Oxide)	PG-TO252-3	364 pF
INFINEON IPD70N03S4L04ATMA1	3300 pF	2.2 V	-55 °C	175 °C	70 A	30 V	4.5 V 10 V	4.3 mOhm	16 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	48 nC	68 W	Surface Mount	N-Channel	MOSFET (Metal Oxide)	PG-TO252-3-11			AEC-Q101	Automotive
INFINEON IPD70P04P4L08ATMA1		2.2 V	-55 °C	175 °C	70 A	40 V	4.5 V 10 V	7.8 mOhm	16 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	92 nC	75 W	Surface Mount	P-Channel	MOSFET (Metal Oxide)	PG-TO252-3-313	5430 pF		AEC-Q101	Automotive
INFINEON IPD70R360P7SAUMA1		3.5 V	-40 °C	150 °C	12.5 A	700 V	10 V	360 mOhm	16 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	16.4 nC		Surface Mount	N-Channel	MOSFET (Metal Oxide)	PG-TO252-3	517 pF				59.4 W
INFINEON IPD70N12S311ATMA1		4 V	-55 °C	175 °C	70 A	120 V	10 V	11.1 mOhm	20 V	DPAK (2 Leads + Tab) SC-63 TO-252-3		125 W	Surface Mount	N-Channel	MOSFET (Metal Oxide)	PG-TO252-3	4355 pF	65 nC	AEC-Q101	Automotive
INFINEON IPD70P04P4L08AUMA2		2.2 V	-55 °C	175 °C	70 A	40 V	4.5 V 10 V	7.8 mOhm		DPAK (2 Leads + Tab) SC-63 TO-252-3	92 nC	75 W	Surface Mount	P-Channel	MOSFET (Metal Oxide)	PG-TO252-3-313	5430 pF		AEC-Q101	Automotive		5 V	-16 V
