1210A Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SENSOR 15PSIG 0.13" 0.1V

Part	Applications	Features	Output [Max]	Port Size	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure	Maximum Pressure	Output Type	Pressure Type	Termination Style	Operating Pressure	Operating Pressure	Mounting Type	Package / Case	Port Style	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]

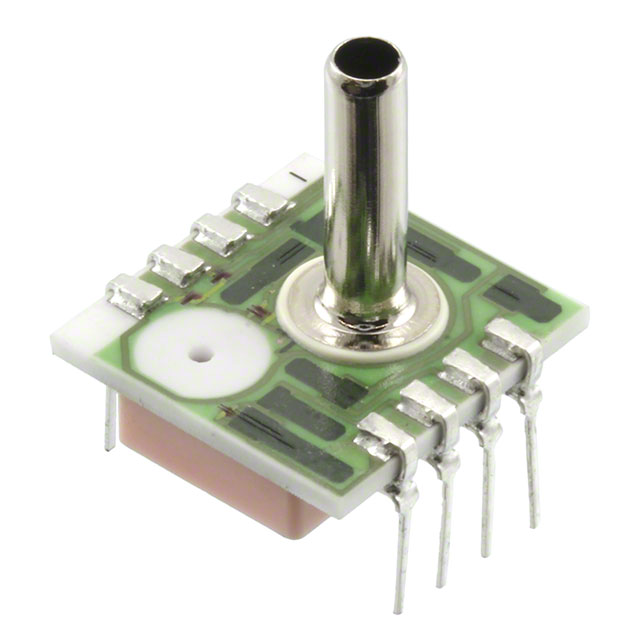

TE Connectivity AMP Connectors 1210A-015G-3L	Board Mount	Temperature Compensated	100 mV	Male Tube	0.13 in	3.23 mm	125 °C	-40 C	310.26 kPa	45 PSI	Wheatstone Bridge	Vented Gauge	PC Pin	15 PSI	103.42 kPa	Through Hole	8-DIP Module	Barbless
TE Connectivity AMP Connectors 1210A-005G-3L		Temperature Compensated	100 mV	Male Tube	0.13 in	3.23 mm	125 °C	-40 C	137.9 kPa	20 PSI	Wheatstone Bridge	Vented Gauge	PCB	5 PSI	34.47 kPa	Through Hole	8-DIP Module	Barbless	0.1 %
TE Connectivity AMP Connectors 1210A-10WD-3S	Board Mount	Temperature Compensated	40 mV	Male Tube	0.13 in	3.18 mm	85 °C	-25 °C	34.47 kPa		Wheatstone Bridge	Differential	PC Pin	0.36 PSI	2.49 kPa	Through Hole	8-DIP Module	Barbless		5 PSI
TE Connectivity AMP Connectors 1210A-100G-3S	Board Mount	Temperature Compensated	100 mV	Male Tube	0.13 in	3.18 mm	125 °C	-40 C	1378.95 kPa	200 PSI	Wheatstone Bridge	Vented Gauge	PC Pin	100 PSI	689.48 kPa	Through Hole	8-DIP Module	Barbless
TE Connectivity AMP Connectors 1210A-030A-3L	Board Mount	Temperature Compensated	100 mV	Male Tube	0.13 in	3.23 mm	125 °C	-40 C	620.53 kPa		Wheatstone Bridge		PC Pin	30 PSI	206.84 kPa	Through Hole	8-DIP Module	Barbless		90 PSI

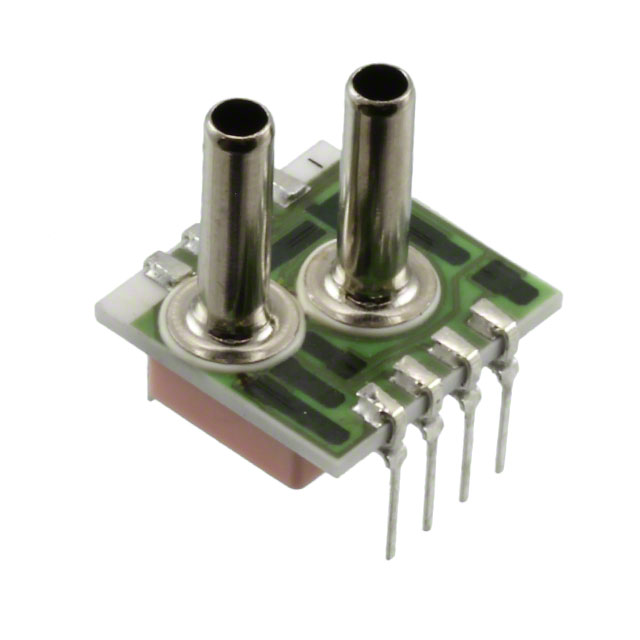

TE Connectivity AMP Connectors 1210A-030D-3S	Board Mount	Temperature Compensated	100 mV	Dual Male Tube	0.13 in	3.18 mm	125 °C	-40 C	620.53 kPa		Wheatstone Bridge	Differential	PC Pin	30 PSI	206.84 kPa	Through Hole	8-DIP Module	Barbless		90 PSI
TE Connectivity AMP Connectors 1210A-100D-3L	Board Mount	Temperature Compensated	100 mV	Dual Male Tube	0.13 in	3.23 mm	125 °C	-40 C	1378.95 kPa	200 PSI	Wheatstone Bridge	Differential	PC Pin	100 PSI	689.48 kPa	Through Hole	8-DIP Module	Barbless	0.1 %
TE Connectivity AMP Connectors 1210A-100D-3S	Board Mount	Temperature Compensated	100 mV	Dual Male Tube	0.13 in	3.18 mm	125 °C	-40 C	1378.95 kPa	200 PSI	Wheatstone Bridge	Differential	PC Pin	100 PSI	689.48 kPa	Through Hole	8-DIP Module	Barbless
TE Connectivity AMP Connectors 1210A-002D-3S	Board Mount	Temperature Compensated	100 mV	Dual Male Tube	0.13 in	3.18 mm	125 °C	-40 C	41.37 kPa	6 PSI	Wheatstone Bridge	Differential	PC Pin	2 PSI	13.79 kPa	Through Hole	8-DIP Module	Barbless
TE Connectivity AMP Connectors 1210A-001G-3S	Board Mount	Temperature Compensated	100 mV	Male Tube	0.13 in	3.18 mm	125 °C	-40 C			Wheatstone Bridge	Vented Gauge	PC Pin	1 PSI	6.89 kPa	Through Hole	8-DIP Module	Barbless		10 PSI	68.95 kPa
