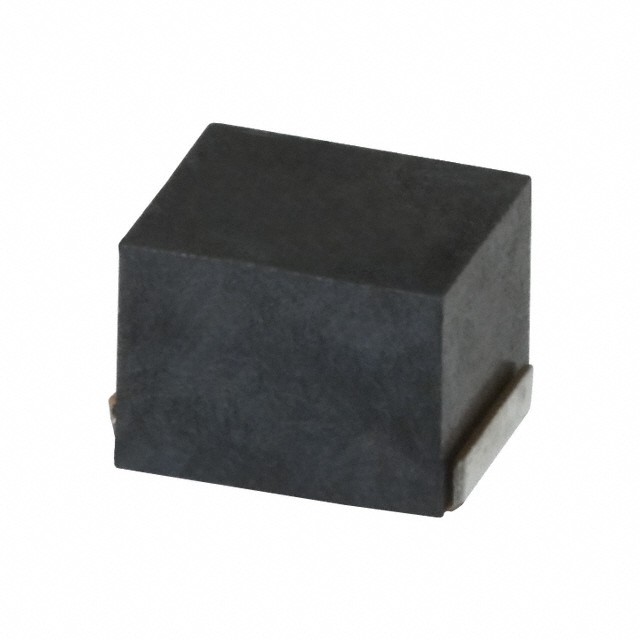

NLV32-PFD Series

Catalog

RF INDUCTORS - SMD SUGGESTED ALTERNATE NLV32T-R33J-EFD

Part	Supplier Device Package	Supplier Device Package	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Package / Case	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Mounting Type	Tolerance	Frequency - Self Resonant	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Q @ Freq [custom]	Q @ Freq [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Material - Core	Ratings	Type	DC Resistance (DCR)	Q @ Freq
TDK Corporation NLV32T-R33J-PFD	1210	3225	0.45 A	2.5 mm	0.098 in	3.2 mm	0.126 "	1210	3225 Metric	400 mOhm	25.2 MHz	Surface Mount	5 %	300 MHz	-40 C	105 ░C	330 nH	30	25.2 MHz	2.4 mm	0.094 in	Unshielded	Ferrite	AEC-Q200	Drum Core Wirewound
TDK Corporation NLV32T-330J-PFD	1210	3225	70 mA	2.5 mm	0.098 in	3.2 mm	0.126 "	1210	3225 Metric		2.52 MHz	Surface Mount	5 %	17 MHz	-40 C	105 ░C	33 µH			2.4 mm	0.094 in	Unshielded	Ferrite	AEC-Q200	Drum Core Wirewound	5.6 Ohm	2.52 MHz 30
TDK Corporation NLV32T-2R7J-PFD	1210	3225	0.29 A	2.5 mm	0.098 in	3.2 mm	0.126 "	1210	3225 Metric	1.1 Ohm	7.96 MHz	Surface Mount	5 %		-40 C	105 ░C	2.7 µH			2.4 mm	0.094 in	Unshielded	Ferrite	AEC-Q200	Drum Core Wirewound		7.96 MHz 30
TDK Corporation NLV32T-R22J-PFD	1210	3225	0.45 A	2.5 mm	0.098 in	3.2 mm	0.126 "	1210	3225 Metric		25.2 MHz	Surface Mount	5 %	350 MHz	-40 C	105 ░C	220 nH	30	25.2 MHz	2.4 mm	0.094 in	Unshielded	Ferrite	AEC-Q200	Drum Core Wirewound
