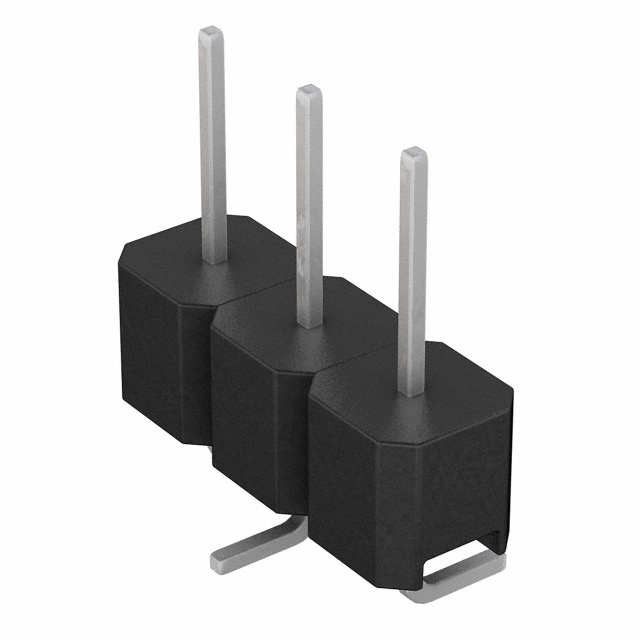

NREC003 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER SMD 3POS 2.54MM
| Part | Contact Shape | Insulation Color | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Mounting Type | Insulation Height | Insulation Height | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Style | Current Rating (Amps) | Termination | Fastening Type | Contact Type | Contact Material | Shrouding | Connector Type | Insulation Material | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Black | Tin | 0.23 in | 5.84 mm | Surface Mount | 0.098 " | 2.5 mm | All | 0.1 " | 2.54 mm | -40 C | 105 ░C | UL94 V-0 | Board to Board Cable | 3 A | Solder | Push-Pull | Male Pin | Brass | Unshrouded | Header | Nylon 6T Polyamide (PA6T) | 1 |
