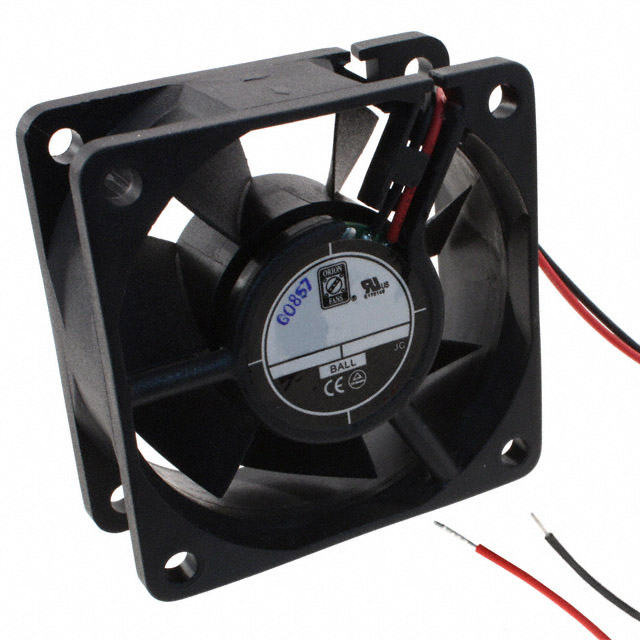

OD6025 Series

Catalog

FAN AXIAL 60X25MM 24VDC WIRE

...

Part	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Weight [custom]	Weight [custom]	Bearing Type	RPM	Noise	Width [y]	Termination	Features	Approval Agency	Air Flow	Air Flow	Fan Type	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Operating Temperature	Ingress Protection	Material - Frame
ORION FANS OD6025-24HHSS5	30000 Hrs	Polybutylene Terephthalate (PBT)	150 mA	26 VDC	15 VDC	24 VDC	63.96 g	0.141 lb	Sealed Sleeve	4390 RPM	32 dB	25 mm	3 Wire Leads	Auto Restart PWM Control	cURus TUV	0.896 m³/min	32 CFM	Tubeaxial	59.8 Pa	0.24 in H2O	-10 °C	50 °C	60 mm	60 mm	2.8 W
ORION FANS OD6025-24MB	45 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	0.09 A	26 VDC	15 VDC	24 VDC	63.96 g	0.141 lb	Ball	3150 RPM	25 dB(A)	25 mm	2 Wire Leads	Auto Restart	CE cURus TUV UR	0.476 m³/min	17 CFM	Tubeaxial	39.8 Pa	0.16 in H2O	-20 ░C	65 °C	60 mm	60 mm	2.2 W	(-20 ~ 65°C)
ORION FANS OD6025-24LB	45 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	60 mA	13.8 VDC	8 V	24 VDC	63.96 g	0.141 lb	Ball	2480 RPM	20 dB	25 mm	2 Wire Leads	Auto Restart	CE cURus TUV UR	0.392 m³/min	14 CFM	Tubeaxial	34.9 Pa	0.14 in H2O	-10 °C	70 °C	60 mm	60 mm
ORION FANS OD6025-12HBIP5502A		Polybutylene Terephthalate (PBT)	150 mA	13.8 VDC	8 V	12 VDC	63.96 g	0.141 lb	Ball	3975 RPM	30 dB	25 mm	3 Wire Leads	Auto Restart Locked Rotor Sensor	cURus TUV	0.7 mł/min	25 CFM	Tubeaxial	54.8 Pa	0.22 in H2O	-20 ░C	65 °C	60 mm	60 mm	1.8 W	(-20 ~ 65°C)	IP55 - Dust Protected Water Resistant
ORION FANS OD6025-12HS02A	30000 Hrs	Polybutylene Terephthalate (PBT)	150 mA			12 VDC	63.96 g	0.141 lb	Sleeve	4000 RPM	30 dB	25 mm	3 Wire Leads	Auto Restart Locked Rotor Sensor	cURus TUV	0.7 mł/min	25 CFM	Tubeaxial	44.8 Pa	0.18 in H2O	-10 °C	50 °C	60 mm	60 mm	1.68 W
ORION FANS OD6025-12LSS02A	30000 Hrs	Polybutylene Terephthalate (PBT)				12 VDC	63.96 g	0.141 lb	Sealed Sleeve	2500 RPM	19 dB(A)	25 mm	3 Wire Leads	Auto Restart Locked Rotor Sensor	cURus TUV	0.392 m³/min	14 CFM	Tubeaxial	20 Pa	0.08 in H2O	-10 °C	50 °C	60 mm	60 mm
ORION FANS OD6025-12LLB01A		Polybutylene Terephthalate (PBT) Fiberglass Reinforced				12 VDC			Ball			25 mm	3 Wire Leads	Auto Restart Speed Sensor (Tach)	cURus TUV			Tubeaxial					60 mm	60 mm				Fiberglass Reinforced Polybutylene Terephthalate (PBT)
ORION FANS OD6025-24HBIP55		Polybutylene Terephthalate (PBT)	120 mA	26 VDC	15 VDC	24 VDC	63.96 g	0.141 lb	Ball	3975 RPM	30 dB	25 mm	2 Wire Leads	Auto Restart	cURus TUV	0.7 mł/min	25 CFM	Tubeaxial	54.8 Pa	0.22 in H2O	-20 ░C	65 °C	60 mm	60 mm	2.8 W	(-20 ~ 65°C)	IP55 - Dust Protected Water Resistant
ORION FANS OD6025-24MB01A	45 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	0.09 A	26 VDC	15 VDC	24 VDC	63.96 g	0.141 lb	Ball	3150 RPM	25 dB(A)	25 mm	3 Wire Leads	Auto Restart Speed Sensor (Tach)	CE cURus TUV UR	0.476 m³/min	17 CFM	Tubeaxial	39.8 Pa	0.16 in H2O	-20 ░C	65 °C	60 mm	60 mm	2.2 W	(-20 ~ 65°C)
ORION FANS OD6025-24MSS		Polybutylene Terephthalate (PBT)	0.09 A	26 VDC	15 VDC	24 VDC	63.96 g	0.141 lb	Sealed Sleeve	3150 RPM	25 dB(A)	25 mm	2 Wire Leads	Auto Restart	cURus TUV	0.476 m³/min	17 CFM	Tubeaxial	39.8 Pa	0.16 in H2O			60 mm	60 mm	2.2 W
