SMS6RE Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN HEADER VERT 6POS 5.08MM

Part	Number of Positions Loaded	Style	Contact Finish - Mating	Contact Shape	Insulation Color	Contact Type	Features	Pitch - Mating	Insulation Material	Operating Temperature (Max)	Operating Temperature (Min)	Row Spacing - Mating	Ingress Protection	Current Rating	Insulation Height	Shrouding	Mounting Type	Overall Contact Length	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Material	Termination	Number of Positions	Contact Length - Mating	Fastening Type	Number of Rows	Contact Length - Post	Connector Type	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish Thickness - Post
Amphenol Aerospace Operations SMS6RE4D70	All	Board Cable/Wire	Gold	Circular	Black	Male Pin	Mounting Flange	0.2 in	Glass Filled Polyester	125 °C	-55 °C	0.2 in	IP40	5 A	0.52 in	Unshrouded	Through Hole	0.972 in	Flash	UL94 V-0	Copper Alloy	Solder	6	0.28 in	Locking Ramp	2	0.173 in	Header
Amphenol Aerospace Operations SMS6RE4S6	All	Board Cable/Wire	Gold	Circular	Black	Male Pin	Mounting Flange	0.2 in	Glass Filled Polyester	125 °C	-55 °C	0.2 in	IP40	5 A	0.52 in	Unshrouded	Through Hole	0.972 in		UL94 V-0	Copper Alloy	Solder	6	0.28 in	Locking Ramp	2	0.173 in	Header	16 µin	Tin

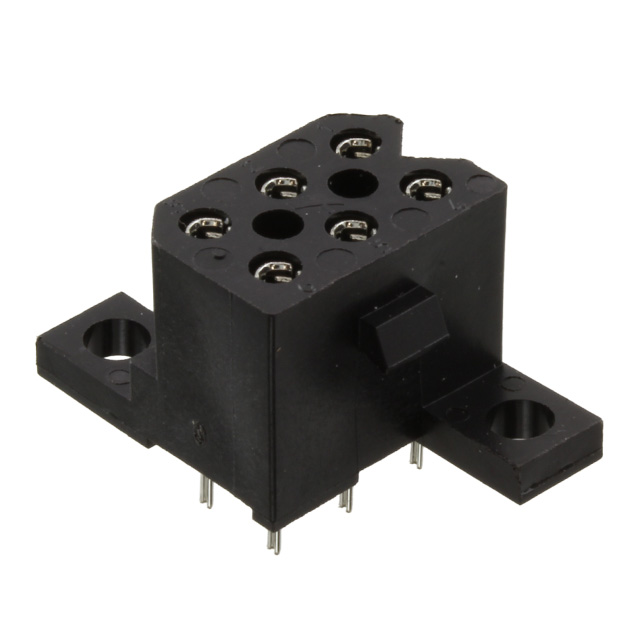

Amphenol Aerospace Operations SMS6RE3TR29	All	Board Board or Cable	Tin	Circular	Black	Female Socket	Mounting Flange	0.2 in	Glass Filled Thermoplastic	105 °C	-55 °C	0.2 in	IP40	5 A	0.528 in		Through Hole			UL94 V-0	Copper Alloy	Solder	6		Locking Ramp	2	0.173 in	Receptacle	118.1 µin	Tin	118.1 µin

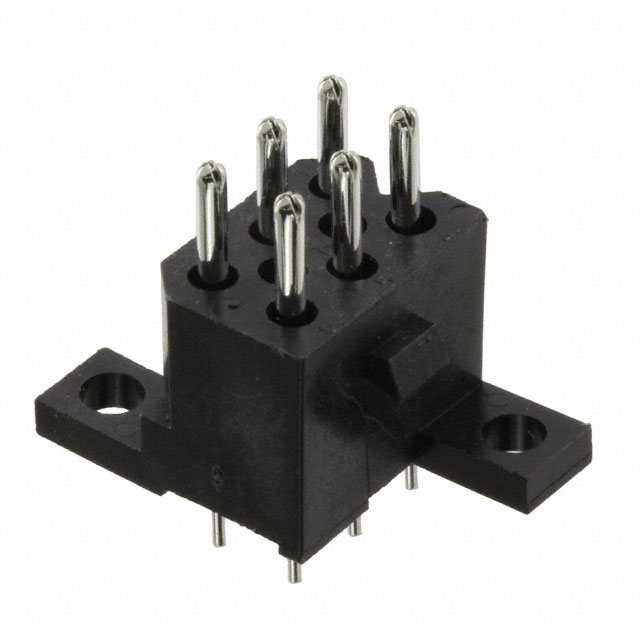

Amphenol Aerospace Operations SMS6RE4TR29	All	Board Cable/Wire	Tin	Circular	Black	Male Pin	Mounting Flange	0.2 in	Glass Filled Polyester	125 °C	-55 °C	0.2 in	IP40	5 A	0.52 in	Unshrouded	Through Hole	0.972 in		UL94 V-0	Copper Alloy	Solder	6	0.28 in	Locking Ramp	2	0.173 in	Header	118.1 µin	Tin	118.1 µin
