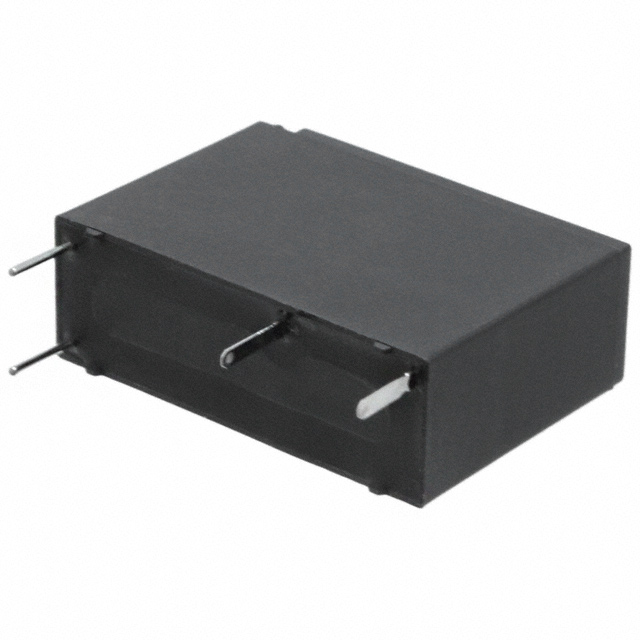

ALDP12 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
POWER RELAY, SPST-NO, 5A, 24VDC, TH ROHS COMPLIANT: YES
| Part | Coil Resistance | Coil Insulation | Termination Style | Release Time | Relay Type | Operate Time | Mounting Type | Contact Form | Contact Material | Approval Agency | Coil Current | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Must Release Voltage | Switching Voltage [Max] | Coil Type | Load - Max Switching | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 2.88 kOhms | Class E | PC Pin | 10 ms | General Purpose | 10 ms | Through Hole | SPST-NO (1 Form A) | Silver Nickel (AgNi) | CQC cURuus VDE | 8.3 mA | 5 A | 85 °C | -40 C | 18 VDC | 1.2 VDC | 277 VAC | Non Latching | 1385 VA | 24 VDC |
 Panasonic Electronic Components | 2.88 kOhms | Class E | PC Pin | 10 ms | General Purpose | 10 ms | Through Hole | SPST-NO (1 Form A) | Silver Nickel (AgNi) | CQC cURuus VDE | 8.3 mA | 5 A | 85 °C | -40 C | 18 VDC | 1.2 VDC | 277 VAC | Non Latching | 1385 VA | 24 VDC |
