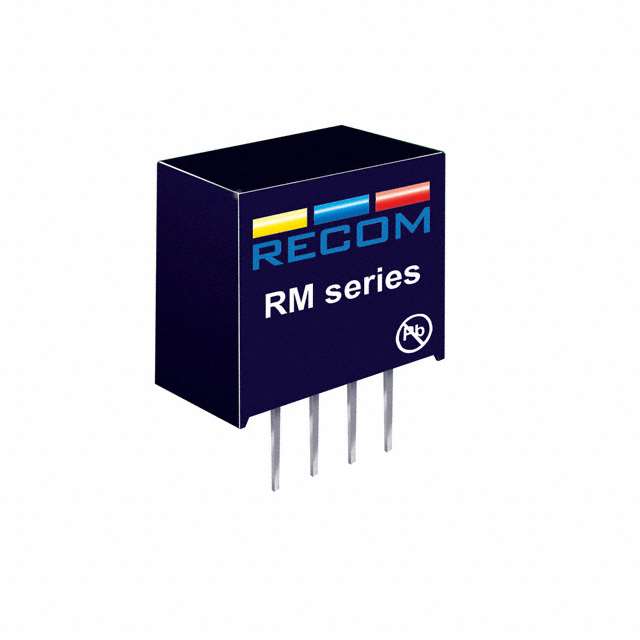

RM Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 0.25W DC/DC 1KV UNREG 15VIN 15VOUT

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Package / Case	Voltage - Input (Max) [Max]	Power (Watts)	Features	Applications	Number of Outputs	Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Mounting Type	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]

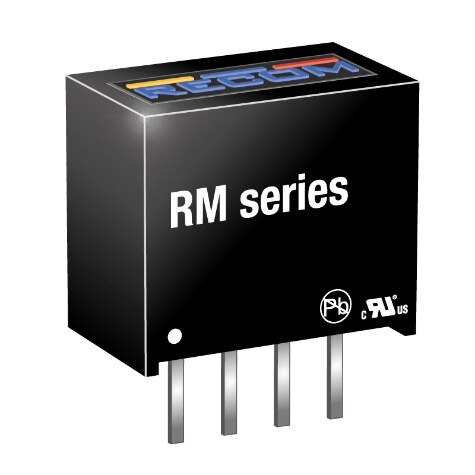

Recom Power RM-1515S	85 °C	-40 C	15 V	4-SIP Module	16.5 V	0.25 W	SCP	ITE (Commercial)	1	Isolated Module	17 mA	13.5 V	1000 V	Through Hole	76 %	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "
Recom Power RM-0505S/H	85 °C	-40 C	5 V	4-SIP Module	5.5 V	0.25 W	SCP	ITE (Commercial) Medical	1	Isolated Module	50 mA	4.5 V	2000 V	Through Hole	72 %	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "
Recom Power RM-1515S/H	85 °C	-40 C	15 V	4-SIP Module	16.5 V	0.25 W	SCP	ITE (Commercial) Medical	1	Isolated Module	17 mA	13.5 V	2000 V	Through Hole	76 %	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "
Recom Power RM-0505S	85 °C	-40 C	5 V	4-SIP Module	5.5 V	0.25 W	SCP	ITE (Commercial)	1	Isolated Module	50 mA	4.5 V	1000 V	Through Hole	72 %	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "
Recom Power RM-123.3S	85 °C	-40 C	3.3 V	4-SIP Module	13.2 V	0.25 W	SCP	ITE (Commercial)	1	Isolated Module	76 mA	10.8 V	1000 V	Through Hole	70 %	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "
Recom Power RM-0512S/HP	85 °C	-40 C	12 V	4-SIP Module	5.5 V	0.25 W	SCP	ITE (Commercial) Medical	1	Isolated Module	21 mA	4.5 V	2000 V	Through Hole	72 %	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "
Recom Power RM-153.3S	85 °C	-40 C	3.3 V	4-SIP Module	16.5 V	0.25 W	SCP	ITE (Commercial)	1	Isolated Module	76 mA	13.5 V	1000 V	Through Hole	70 %	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "
Recom Power RM-3.309S/P	85 °C	-40 C	9 V	4-SIP Module	3.6 V	0.25 W	SCP	ITE (Commercial)	1	Isolated Module	28 mA	3 V	1000 V	Through Hole	72 %	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "
Recom Power RM-0509S/H	85 °C	-40 C	9 V	4-SIP Module	5.5 V	0.25 W	SCP	ITE (Commercial) Medical	1	Isolated Module	28 mA	4.5 V	2000 V	Through Hole	72 %	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "
Recom Power RM-1205S/HP	85 °C	-40 C	5 V	4-SIP Module	13.2 V	0.25 W	SCP	ITE (Commercial) Medical	1	Isolated Module	50 mA	10.8 V	2000 V	Through Hole	72 %	6 mm	0.39 "	10 mm	11.5 mm	0.45 "	0.24 "
