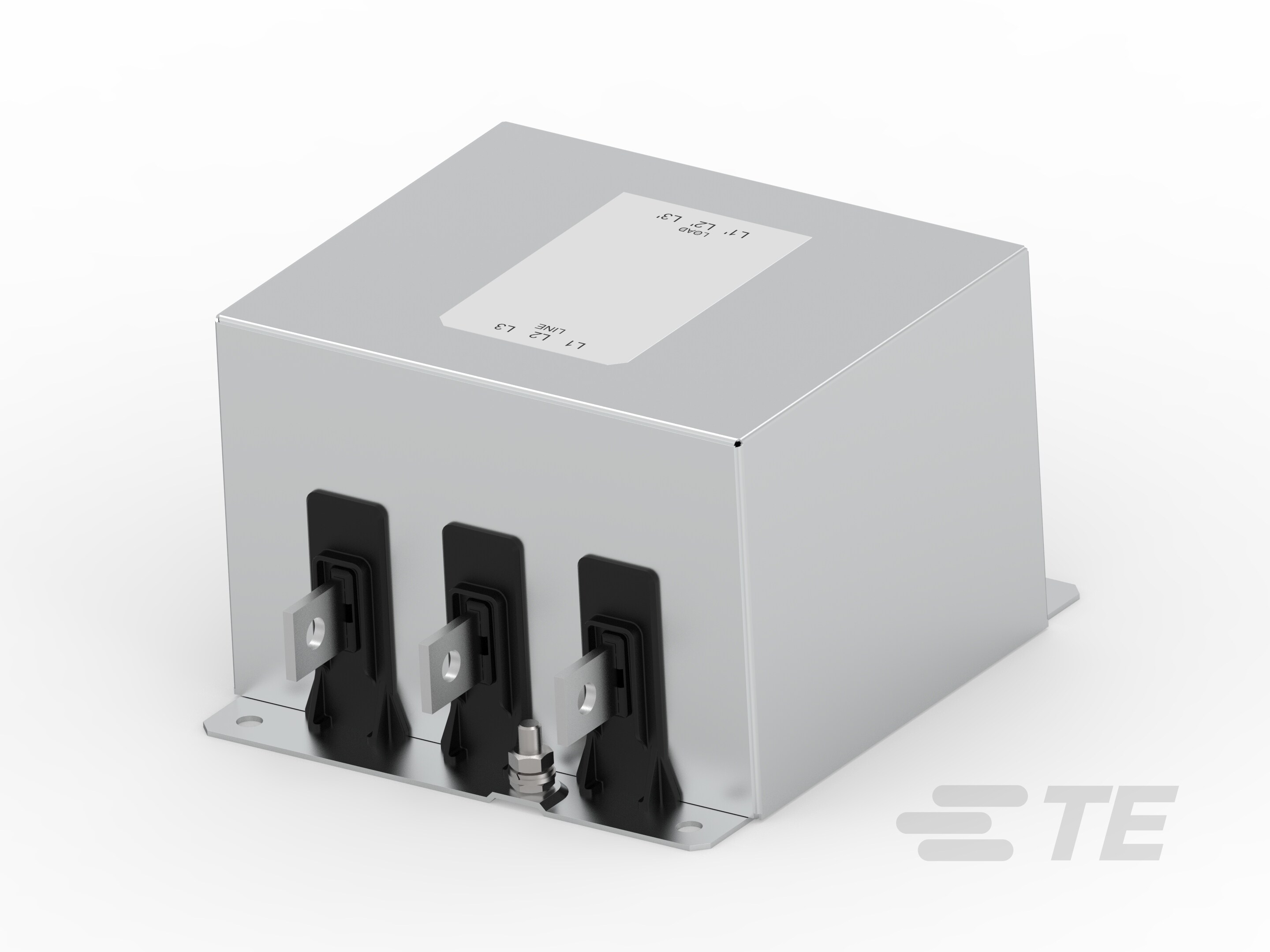

Schaffner FN3311 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 1.5KA CHASSIS MOUNT

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Filter Type	Configuration	Termination Style	Approval Agency	Voltage - Rated AC (Phase to Ground/Neutral)	Applications	Frequency - Operating	Voltage - Rated AC (Phase to Phase)	Current	Voltage - Rated AC
TE Connectivity AMP Connectors FN3311IT-1500-99-C18-R5	Chassis Mount	-40 C	100 °C	Three Phase (Delta)	Single Stage	Terminal Post	CE cURus ENEC UKCA	300 V	General Purpose	60 Hz	520 V	1500 A
TE Connectivity AMP Connectors FN3311HVIT-400-99-C21-R5	Chassis Mount	-40 C	100 °C	Three Phase (Delta)	Single Stage	Terminal Post	CE cURus ENEC UKCA	300 V	Photovoltaic Inverter	60 Hz	520 V	400 A	520 V
TE Connectivity AMP Connectors FN3311-400-99-C16-R55	Chassis Mount	-40 C	100 °C	Three Phase (Delta)	Single Stage	Terminal Post	CE cURus ENEC	300 V	General Purpose	60 Hz	520 V	400 A	300 V 520 V
TE Connectivity AMP Connectors FN3311HVIT-1500-99-C21-R5	Chassis Mount	-40 C	100 °C	Three Phase (Delta)	Single Stage	Terminal Post	CE cURus ENEC UKCA	440 V	Inverters Power Drive Systems	60 Hz	760 V	1500 A
TE Connectivity AMP Connectors FN3311-2300-99-C28-R55	Chassis Mount	-40 C	100 °C	Three Phase (Delta)	Single Stage	Terminal Post	CE cURus ENEC UKCA	300 V	General Purpose	60 Hz	520 V	2.3 kA
TE Connectivity AMP Connectors FN3311-1500-99-C28-R55	Chassis Mount	-40 C	100 °C	Three Phase (Delta)	Single Stage	Terminal Post	CE cURus ENEC UKCA	300 V	General Purpose	60 Hz	520 V	1500 A
TE Connectivity AMP Connectors FN3311-600-99-C28-R55	Chassis Mount	-40 C	100 °C	Three Phase (Delta)	Single Stage	Terminal Post	CE cURus ENEC UKCA	300 V	General Purpose	60 Hz	520 V	600 A
TE Connectivity AMP Connectors FN3311-400-99-C28-R55	Chassis Mount	-40 C	100 °C	Three Phase (Delta)	Single Stage	Terminal Post	CE cURus ENEC UKCA	300 V	General Purpose	60 Hz	520 V	400 A
TE Connectivity AMP Connectors FN3311HVIT-600-99-C18-R5	Chassis Mount	-40 C	100 °C	Three Phase (Delta)	Single Stage	Terminal Post	CE cURus ENEC UKCA	440 V	Inverters Power Drive Systems	60 Hz	760 V	600 A
TE Connectivity AMP Connectors FN3311IT-250-99-C18-R5	Chassis Mount	-40 C	100 °C	Three Phase (Delta)	Single Stage	Terminal Post	CE cURus ENEC UKCA	300 V	General Purpose	60 Hz	520 V	250 A
