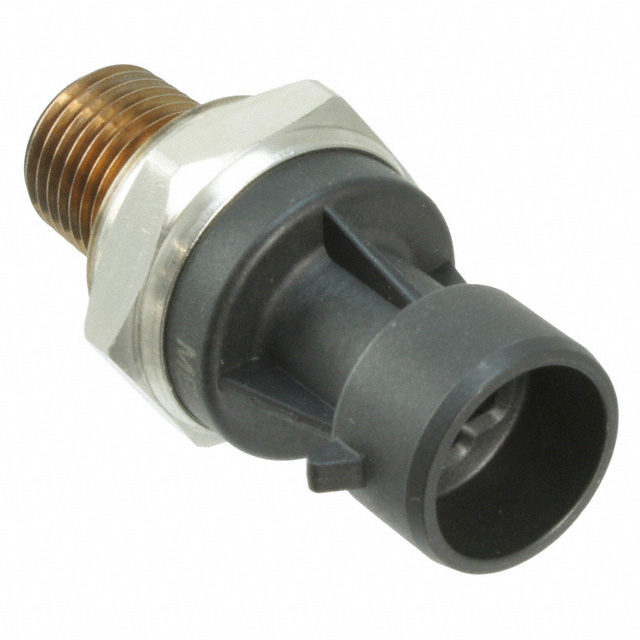

U7139 Series

Catalog

PRESS XDCR U7139-150PA-5W0000

Part	Operating Pressure	Operating Pressure	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Port Size	Port Size	Port Size	Features	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Applications	Output Type	Output [Max]	Output [Min]	Maximum Pressure	Maximum Pressure	Pressure Type
TE Connectivity AMP Connectors U7139-150PA-5W0000	1034.21 kPa	150 PSI	Cylinder	4.75 V	5.25 V	Connector	Male NPT	0.25 "	0.25 in	Temperature Compensated	0.25 %	300 PSI	2068.43 kPa	125 °C	-40 C	Threaded	Industrial Automation	Analog Voltage	4.5 V	0.5 V

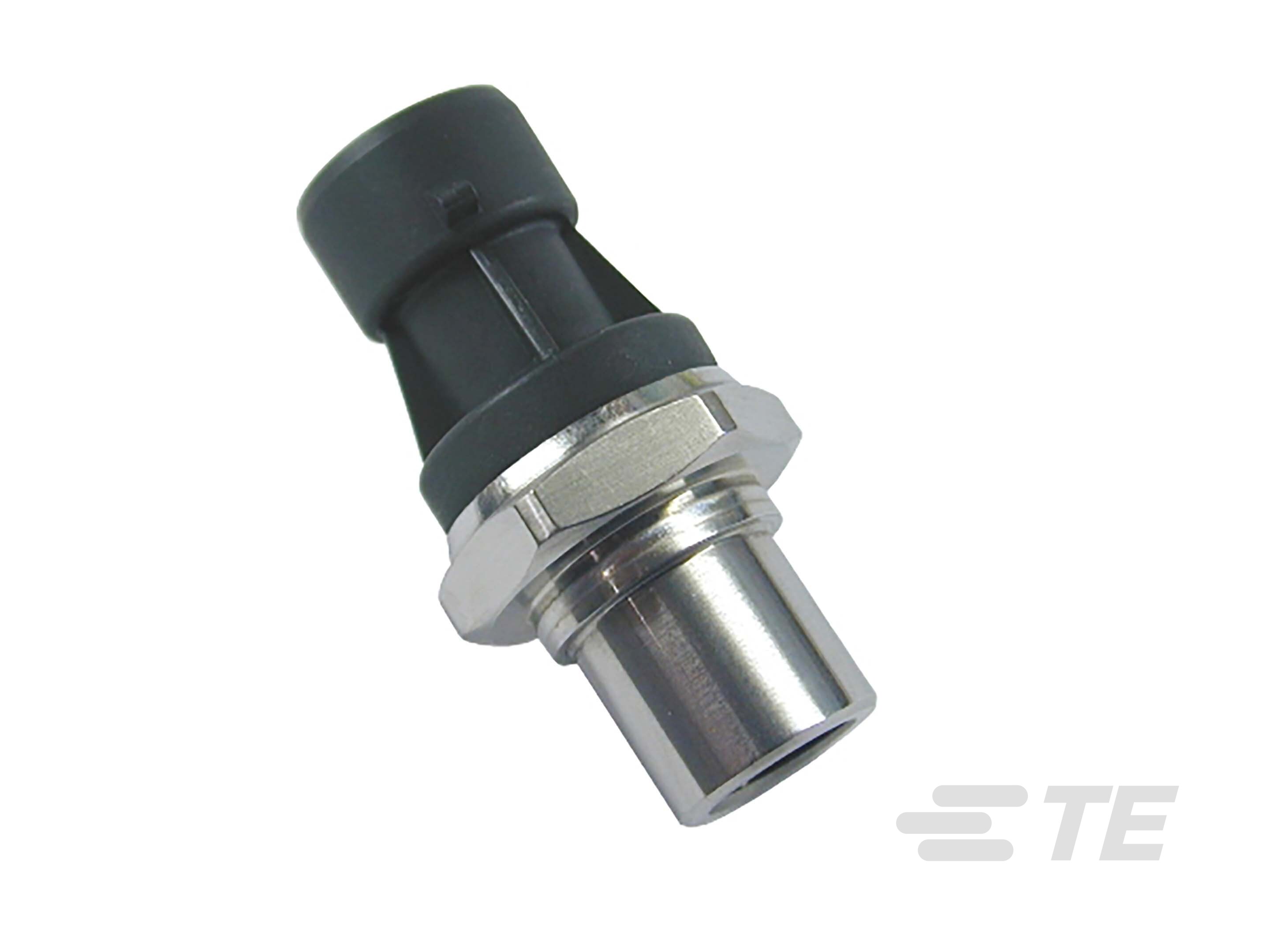

TE Connectivity AMP Connectors U7139-030PA-5W0000	206.84 kPa	30 PSI	Cylinder	4.75 V	5.25 V	Connector	Male NPT	0.25 "	0.25 in	Temperature Compensated	0.25 %	90 PSI		125 °C	-40 C	Threaded	Industrial Automation	Analog Voltage	4.5 V	0.5 V	620.53 kPa
TE Connectivity AMP Connectors U7139-002BA-2W0000	2 bar	29.01 PSI	Cylinder	4.75 V	5.25 V	Connector	BSPP Male	0.25 "	0.25 in	Temperature Compensated	0.25 %	87.02 PSI	600 kPa	125 °C	-40 C	Threaded	Industrial Automation	Analog Voltage	4.5 V	0.5 V
TE Connectivity AMP Connectors U7139-010BA-2W0000	10 bar	145.04 PSI	Cylinder	4.75 V	5.25 V	Connector	BSPP Male	0.25 "	0.25 in	Temperature Compensated	0.25 %			125 °C	-40 C	Threaded	Industrial Automation	Analog Voltage	4.5 V	0.5 V	3000 kPa	435.11 PSI
TE Connectivity AMP Connectors U7139-150PG-5W0000	1034.21 kPa	150 PSI	Cylinder	4.75 V	5.25 V	Connector	Male NPT	0.25 "	0.25 in	Temperature Compensated	0.25 %	300 PSI	2068.43 kPa	125 °C	-40 C	Threaded		Analog Voltage	4.5 V	0.5 V			Vented Gauge
