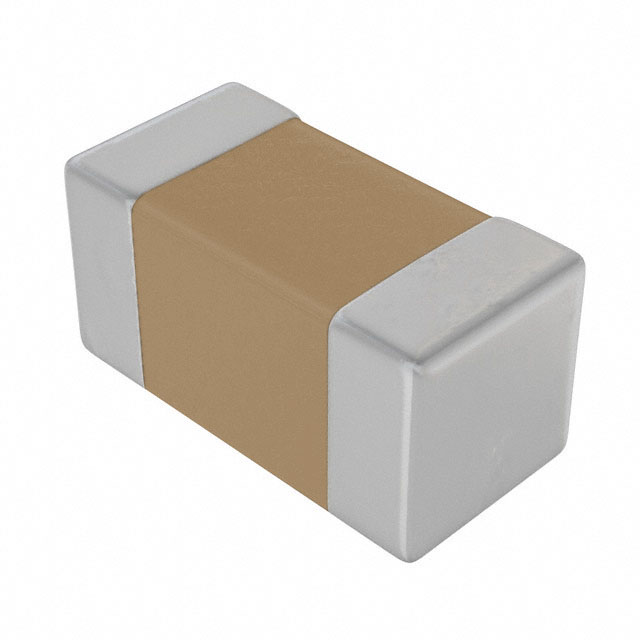

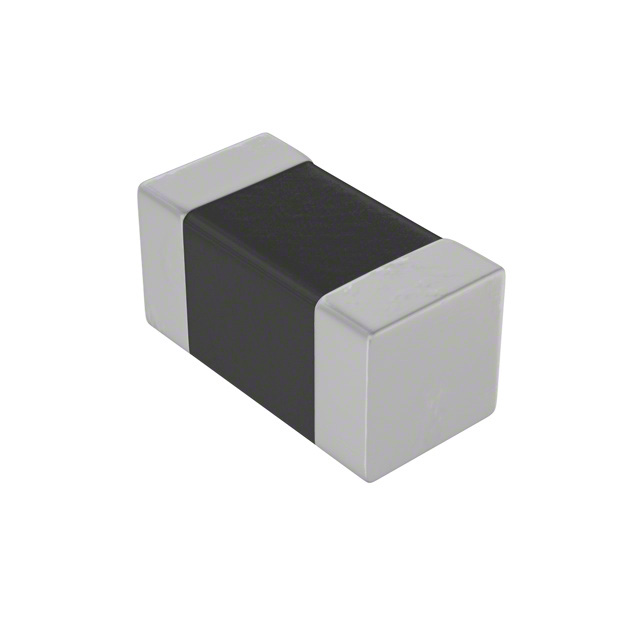

L0603C Series

Manufacturer: KEMET

Catalog

FIXED IND 1NH 300MA 50 MOHM SMD

Part	Supplier Device Package	Tolerance	Frequency - Self Resonant	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Mounting Type	Shielding	Inductance Frequency - Test	Q @ Freq	Current Rating (Amps)	Package / Case	Package / Case	DC Resistance (DCR) [Max]	Material - Core	Height - Seated (Max) [Max]	Height - Seated (Max)	DC Resistance (DCR)	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency - Self Resonant [custom]
KEMET L0603C1N0SRMST	0603 (1608 Metric)	0.3 nH	13 GHz	0.032 in	1.6 mm	0.063 "	0.81 mm	Multilayer	85 °C	-40 C	1 nH	Surface Mount	Unshielded	100 MHz	14 100 MHz	0.3 A	1608 Metric	0603	50 mOhm	Ceramic	0.028 in	0.71 mm
KEMET L0603C10NJRMST	0603 (1608 Metric)	5 %	4.6 GHz	0.032 in	1.6 mm	0.063 "	0.81 mm	Multilayer	85 °C	-40 C	10 nH	Surface Mount	Unshielded	100 MHz	14 100 MHz	0.3 A	1608 Metric	0603		Ceramic	0.028 in	0.71 mm	260 mOhm
KEMET L0603C1R0MDMIT		20 %		0.031 in	1.6 mm	0.063 "		Multilayer	85 °C	-40 C	1 µH	Surface Mount	Shielded	1 MHz		750 mA	1608 Metric	0603		Ferrite	0.031 in	0.8 mm	200 mOhm	0.8 mm
KEMET L0603C3N9SRMST	0603 (1608 Metric)	0.3 nH	8 GHz	0.032 in	1.6 mm	0.063 "	0.81 mm	Multilayer	85 °C	-40 C	3.9 nH	Surface Mount	Unshielded	100 MHz	13 100 MHz	0.3 A	1608 Metric	0603	140 mOhm	Ceramic	0.028 in	0.71 mm
KEMET L0603C100MPMST	0603 (1608 Metric)	20 %		0.031 in	1.6 mm	0.063 "		Multilayer	85 °C	-40 C	10 µH	Surface Mount	Shielded	2 MHz		50 mA	1608 Metric	0603	850 mOhm	Ferrite				0.8 mm	0.95 mm	0.037 in
KEMET L0603CR50MDMIT		20 %		0.031 in	1.6 mm	0.063 "		Multilayer	85 °C	-40 C	500 nH	Surface Mount	Shielded	1 MHz		900 mA	1608 Metric	0603		Ferrite	0.031 in	0.8 mm	150 mOhm	0.8 mm
KEMET L0603C2N2SRMST	0603 (1608 Metric)	0.3 nH	12 GHz	0.032 in	1.6 mm	0.063 "	0.81 mm	Multilayer	85 °C	-40 C		Surface Mount	Unshielded	100 MHz	12 100 MHz	0.3 A	1608 Metric	0603		Ceramic	0.028 in	0.71 mm	100 mOhm
KEMET L0603CR33JRMST	0603 (1608 Metric)	5 %	480 MHz	0.032 in	1.6 mm	0.063 "	0.81 mm	Multilayer	85 °C	-40 C	330 nH	Surface Mount	Unshielded	100 MHz	14 100 MHz	150 mA	1608 Metric	0603	2.1 Ohm	Ceramic	0.028 in	0.71 mm
KEMET L0603C4N7SRMST	0603 (1608 Metric)	0.3 nH		0.032 in	1.6 mm	0.063 "	0.81 mm	Multilayer	85 °C	-40 C	4.7 nH	Surface Mount	Unshielded	100 MHz	13 100 MHz	0.3 A	1608 Metric	0603	160 mOhm	Ceramic	0.028 in	0.71 mm					6.5 GHz
KEMET L0603C18NJRMST	0603 (1608 Metric)	5 %	3 GHz	0.032 in	1.6 mm	0.063 "	0.81 mm	Multilayer	85 °C	-40 C	18 nH	Surface Mount	Unshielded	100 MHz		0.3 A	1608 Metric	0603	350 mOhm	Ceramic	0.028 in	0.71 mm
