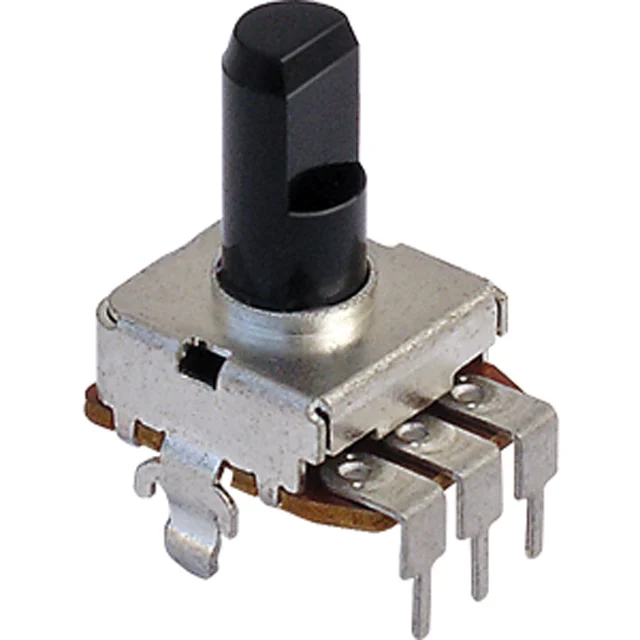

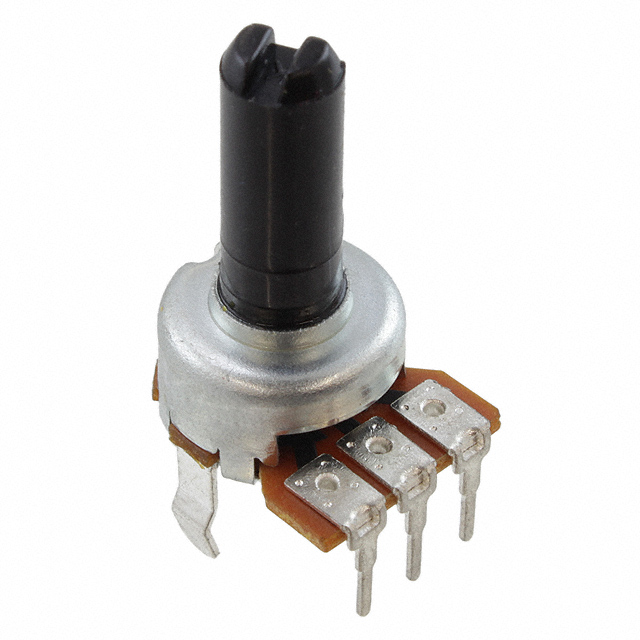

PDB12 Series
Manufacturer: Bourns Inc.
Beta
⌘K
POT 2K OHM 0.08W CARBON LINEAR
| Part | Size - Body [x] | Size - Body [y] | Size - Body [x] | Size - Body [y] | Resistive Material | Actuator Length [x] | Actuator Length [x] | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Taper | Resistance (Ohms) | Number of Turns | Actuator Type | Termination Style | Mounting Type | Tolerance | Built in Switch | Adjustment Type | Rotation | Number of Gangs | Power (Watts) | Resistance (Ohms) | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.504 " | 12.4 mm | 12.8 mm | 0.488 " | Carbon | 0.787 in | 20 mm | 6 mm | 0.236 in | Linear | 2 kOhms | 1 | Flatted | Board Locks PC Pins | Through Hole | 20 % | None | Top Adjustment | 300 ░ | 1 | 80 mW | ||
 Bourns Inc. | 0.65 " | 12.8 mm | 12.8 mm | 0.504 " | Carbon | 0.984 in | 25 mm | 6 mm | 0.236 in | Linear | 1 | Flatted | Board Locks PC Pins | Through Hole | 20 % | None | Side Adjustment | 300 ░ | 1 | 80 mW | 100k | ||
 Bourns Inc. | 0.504 " | 12.4 mm | 12.8 mm | 0.488 " | Carbon | 0.984 in | 25 mm | 6 mm | 0.236 in | Linear | 1 | Flatted | Board Locks PC Pins | Through Hole | 20 % | None | Top Adjustment | 300 ░ | 1 | 80 mW | 10k | ||
 Bourns Inc. | 0.65 " | 12.8 mm | 12.8 mm | 0.504 " | Carbon | 0.984 in | 25 mm | 6 mm | 0.236 in | Linear | 1 | Flatted | Board Locks PC Pins | Through Hole | 20 % | None | Side Adjustment | 300 ░ | 1 | 80 mW | 50 kOhms | ||
 Bourns Inc. | 0.504 " | 12.4 mm | 12.8 mm | 0.488 " | Carbon | 0.984 in | 25 mm | 6 mm | 0.236 in | Linear | 1 | Flatted | PC Pins | Through Hole | 20 % | None | Top Adjustment | 300 ░ | 1 | 80 mW | 10k | ||
 Bourns Inc. | 0.65 " | 12.8 mm | 12.8 mm | 0.504 " | Carbon | 0.984 in | 25 mm | 6 mm | 0.236 in | Linear | 250000 Ohms | 1 | Flatted | Board Locks PC Pins | Through Hole | 20 % | None | Side Adjustment | 300 ░ | 1 | 80 mW | ||
Bourns Inc. | 0.504 " | 12.4 mm | 12.8 mm | 0.488 " | Carbon | 0.984 in | 25 mm | 6 mm | 0.236 in | Linear | 5 kOhms | 1 | Flatted | Board Locks PC Pins | Through Hole | 20 % | Detent | Side Adjustment | 300 ░ | 1 | 80 mW | ||
Bourns Inc. | 0.504 " | 12.4 mm | 12.8 mm | 0.488 " | Carbon | 0.591 in | 15 mm | 6 mm | 0.236 in | Linear | 1 | Flatted | Board Locks PC Pins | Through Hole | 20 % | None | Top Adjustment | 300 ░ | 1 | 80 mW | 1k | ||
Bourns Inc. | Carbon | 0.787 in | 20 mm | 6 mm | 0.236 in | Linear | 20 kOhms | 1 | Flatted | Board Locks PC Pins | Through Hole | 20 % | None | Top Adjustment | 300 ░ | 1 | 80 mW | ||||||
 Bourns Inc. | 0.504 " | 12.4 mm | 12.8 mm | 0.488 " | Carbon | 1.181 in | 30 mm | 6 mm | 0.236 in | Linear | 1 | Flatted | PC Pins | Through Hole | 20 % | None | Top Adjustment | 300 ░ | 1 | 80 mW | 100k |
