PRDDD3 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH ROCKER ON OFF ON DPDT QUICK CONNECT CURVED ROCKER 16A 250VAC 372.85VA >100000CYCLES
| Part | Mechanical Life | Electrical Life | Actuator Type | Circuit | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Mounting Type | Approval Agency | Current Rating (Amps) | Switch Function | Termination Style | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

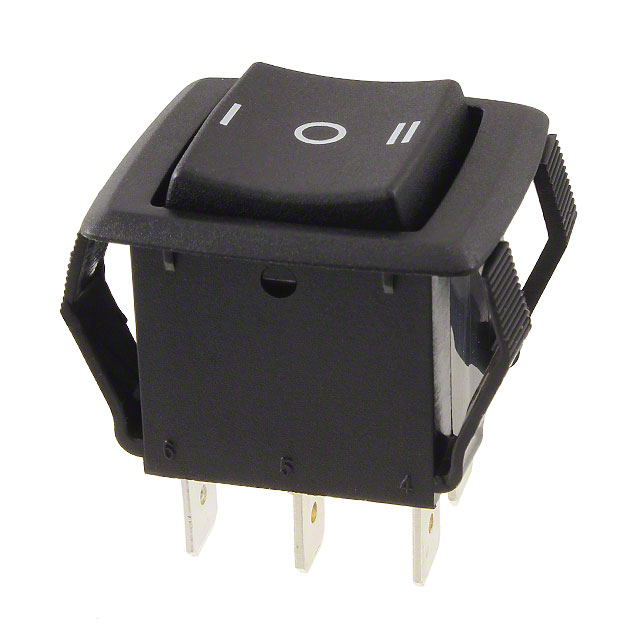

 TE Connectivity AMP Connectors | 100000 Cycles | 6000 Cycles | Concave (Curved) | DPDT | I O II | 85 °C | -20 ░C | 125 V | Panel Mount Snap-In | UL | 16 A | On-Off-On | Quick Connect - 0.250" (6.3mm) | 27.6 mm | 25.4 mm | Black |

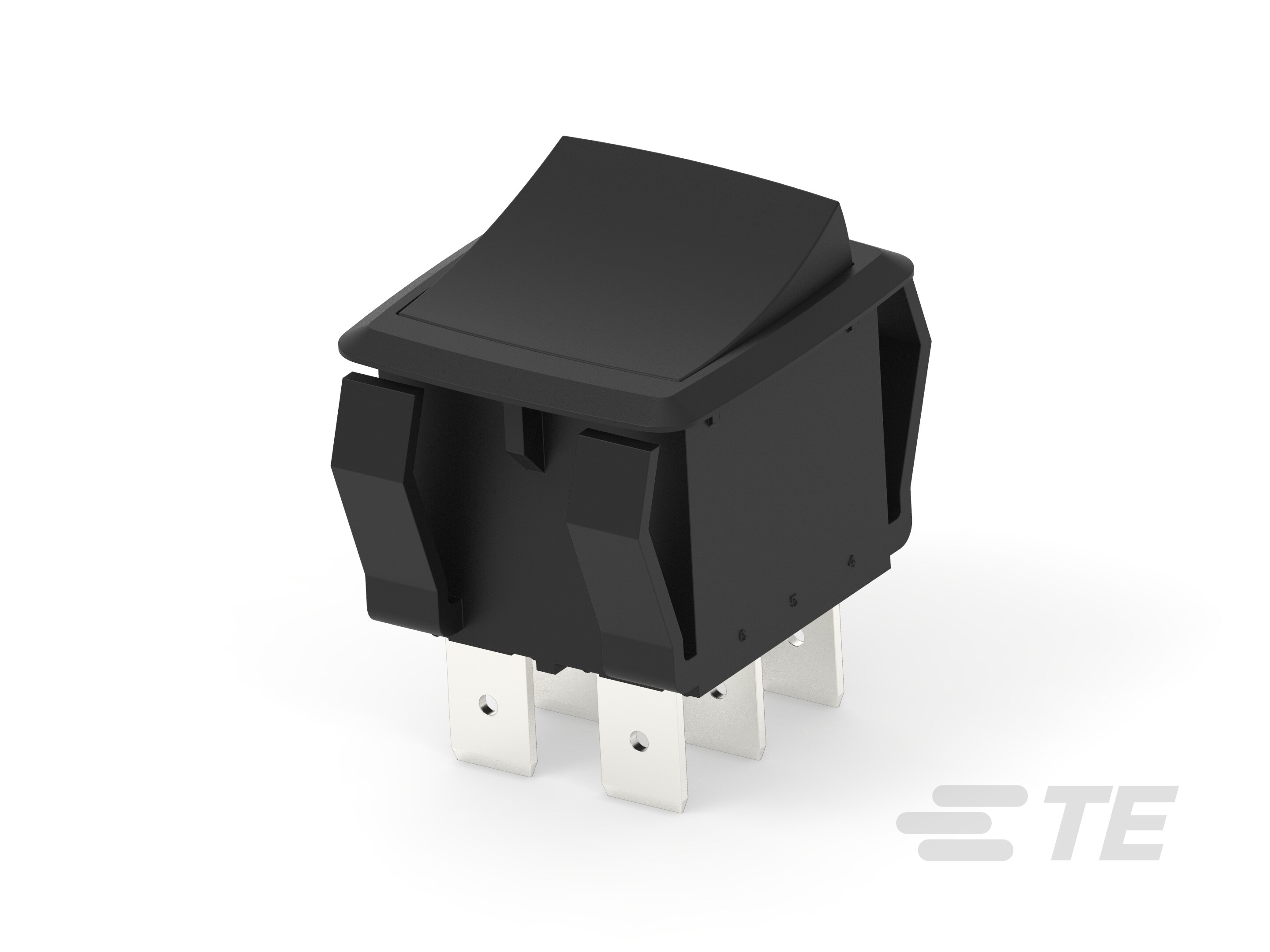

 TE Connectivity AMP Connectors | 100000 Cycles | 6000 Cycles | Concave (Curved) | DPDT | No Marking | 85 °C | -20 ░C | 125 V | Panel Mount Snap-In | UL | 16 A | On-Off-On | Quick Connect - 0.250" (6.3mm) | 27.6 mm | 25.4 mm | Black |
