202F221 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

BLOW-MOLDED PARTS

Part	Color	Large Recovered Length	Large Recovered Length	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered	Total Length Recovered	Total Length Recovered	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Shell Size - Insert [custom]	Type	Material	Small Recovered Length	Small Recovered Length	Features	Shelf Life	Shelf Life Start	Small Recovered Length [x]	Small Recovered Length [x]	Small Diameter Recovered
TE Connectivity AMP Connectors 202F221-51-0-CS8474	Black	3.88 in	98.55 mm	20.83 mm	0.82 in	0.3 in	7.62 mm	121.16 mm	4.77 in	27.18 mm	1.07 in	27.18 mm	1.07 in	21	Boot	EPB Flexible
TE Connectivity AMP Connectors 202F221-50-22-0-CS8474	Black	0.48 in	12.19 mm	20.83 mm	0.82 in	0.3 in	7.62 mm	89.41 mm	3.52 in	13.21 mm	0.52 in	27.18 mm	1.07 in	21	Boot	Elastomer Fluid Resistant	59.94 mm	2.36 in
TE Connectivity AMP Connectors 202F221-50-22-0	Black	0.48 in	12.19 mm	20.83 mm	0.82 in	0.3 in	7.62 mm	89.41 mm	3.52 in	13.21 mm	0.52 in	27.18 mm	1.07 in	21	Boot	Elastomer Fluid Resistant	59.94 mm	2.36 in
TE Connectivity AMP Connectors 202F221-51-22/164-0	Black	0.48 in	12.19 mm	20.83 mm	0.82 in	0.3 in	7.62 mm	89.41 mm	3.52 in	13.21 mm	0.52 in	27.18 mm	1.07 in	21	Boot	Polyolefin (PO) Flexible	59.94 mm	2.36 in
TE Connectivity AMP Connectors 202F221-50-0	Black	0.48 in	12.19 mm	20.8 mm	0.819 in	0.3 in	7.62 mm	121.21 mm	4.772 "	13.21 mm	0.52 in	27.2 mm	1.071 in	21	Boot	VPB Flexible	98.6 mm	3.882 in	Lip
TE Connectivity AMP Connectors 202F221-71/180-0	Black	3.88 in	98.55 mm	20.83 mm	0.82 in	0.3 in	7.62 mm	121.16 mm	4.77 in	27.18 mm	1.07 in	27.18 mm	1.07 in	21	Boot	Polyolefin (PO) Flexible
TE Connectivity AMP Connectors 202F221-51-07/164-CS7137	Black	0.48 in	12.19 mm	20.8 mm	0.819 in		12.19 mm	44.4 mm	1.748 in	13.21 mm	0.52 in	27.2 mm	1.071 in		Boot	EPB Flexible				15 Months	Date of Manufacture	0.858 in	21.79 mm	0.48 in
TE Connectivity AMP Connectors 202F221-51-08/164-CS7137	Black	2.11 in	53.59 mm	20.83 mm	0.82 in	0.3 in	7.62 mm			13.21 mm	0.52 in	27.18 mm	1.07 in	21	Boot	EPB Flexible
TE Connectivity AMP Connectors 202F221-51/164-0-CS8656	Black	3.88 in	98.55 mm	20.83 mm	0.82 in	0.3 in	7.62 mm	121.16 mm	4.77 in	27.18 mm	1.07 in	27.18 mm	1.07 in	21	Boot	EPB Flexible

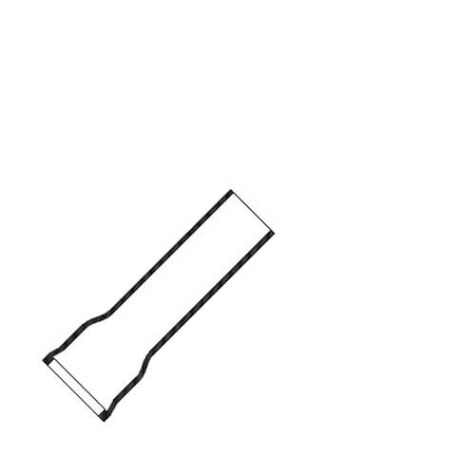

TE Connectivity AMP Connectors 202F221-51/86-0	Black	0.48 in	12.19 mm	20.83 mm	0.82 in	0.3 in	7.62 mm	121.16 mm	4.77 in	13.21 mm	0.52 in	27.18 mm	1.07 in	21	Boot	VPB Flexible	98.55 mm	3.88 "
