AIKW50 Series

Manufacturer: INFINEON

Catalog

600 V, 50 A TRENCHSTOP™ IGBT WITH ANTI-PARALLEL DIODE IN TO247 HOUSING. WITH A SWITCHING FREQUENCY UP TO 30 KHZ IT PERFECTLY MATCHES APPLICATIONS LIKE AUTOMOTIVE APPLICATIONS.

Part	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]	Mounting Type	Supplier Device Package	Grade	Gate Charge	Test Condition	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector Pulsed (Icm)	Power - Max [Max]	IGBT Type	Current - Collector (Ic) (Max) [Max]	Switching Energy	Vce(on) (Max) @ Vge, Ic	Td (on/off) @ 25°C
INFINEON AIKW50N60CTXKSA1	TO-247-3	600 V	26 ns	299 ns	Through Hole	PG-TO247-3-41	Automotive	310 nC	7 Ohm 15 V 50 A 400 V	AEC-Q101	175 °C	-40 °C	150 A	333 W	Trench Field Stop	80 A	1.2 mJ 1.4 mJ	2 V

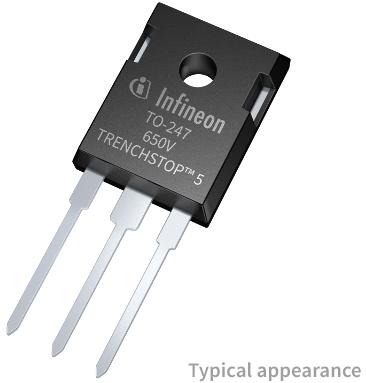

INFINEON AIKW50N65DH5XKSA1	TO-247-3	650 V			Through Hole	PG-TO247-3-41	Automotive		12 Ohm 15 V 25 A 400 V	AEC-Q101	175 °C	-40 °C	150 A	270 W	Trench		140 µJ 490 µJ	2.1 V	21 ns 156 ns
INFINEON AIKW50N65DF5XKSA1	TO-247-3	650 V			Through Hole	PG-TO247-3-41	Automotive		12 Ohm 15 V 25 A 400 V	AEC-Q101	175 °C	-40 °C	150 A	270 W	Trench		140 µJ 490 µJ	2.1 V	21 ns 156 ns
