45212 Series
Manufacturer: 3M (TC)
Beta
⌘K
CONN, R/A HDR, 12POS, 2ROW, 1.27MM, TH ROHS COMPLIANT: YES
| Part | Fastening Type | Number of Rows | Contact Finish - Post | Number of Positions Loaded | Features | Shrouding | Insulation Material | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Contact Finish - Mating | Contact Material | Pitch - Mating | Pitch - Mating | Contact Type | Connector Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions | Termination | Mounting Type | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Insulation Height | Insulation Height | Style | Row Spacing - Mating | Row Spacing - Mating | Mated Stacking Heights | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

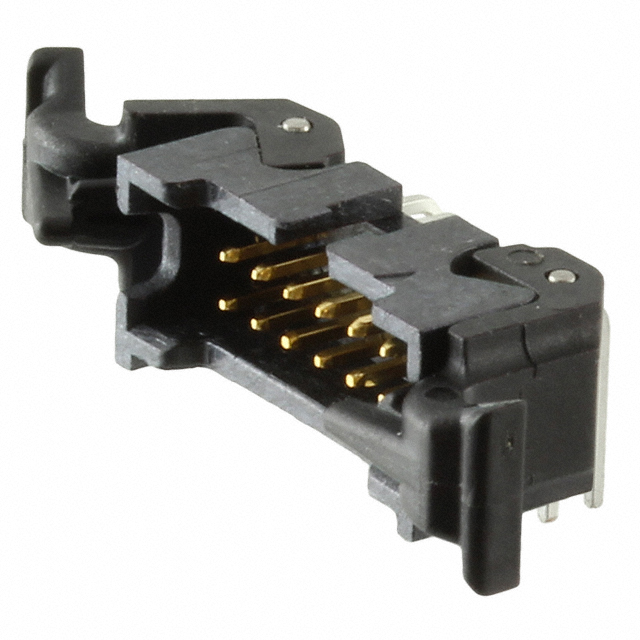

 3M (TC) | Latch Lock/Eject Hooks Short | 2 | Tin | All | Keying Slot | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | 0.094 in | 2.4 mm | UL94 V-0 | Gold | Copper Alloy | 0.05 in | 1.27 mm | Male Pin | Header | 200 µin | 5.08 µm | 12 | Solder | Through Hole Right Angle | Square | 125 °C | -65 ░C | 30 Áin | 0.76 Ám | 125 VDC | 5.33 mm | 0.21 in | Board to Cable/Wire | 0.05 in | 1.27 mm | ||

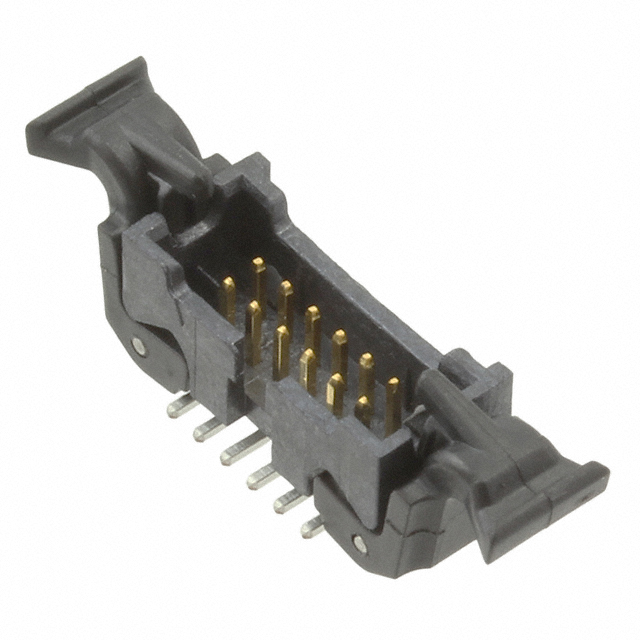

 3M (TC) | Latch Lock/Eject Hooks Short | 2 | Tin | All | Keying Slot Pick and Place | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | UL94 V-0 | Gold | Copper Alloy | 0.05 in | 1.27 mm | Male Pin | Header | 200 µin | 5.08 µm | 12 | Solder | Surface Mount | Square | 125 °C | -65 ░C | 30 Áin | 0.76 Ám | 125 VDC | 5.65 mm | 0.222 " | Board to Cable/Wire | 0.05 in | 1.27 mm | 5.84 mm 6.6 mm 7.21 mm 8.13 mm | |||
 3M (TC) | Latch Lock/Eject Hooks Short | 2 | Tin | All | Keying Slot | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | 0.094 in | 2.4 mm | UL94 V-0 | Gold | Copper Alloy | 0.05 in | 1.27 mm | Male Pin | Header | 200 µin | 5.08 µm | 12 | Solder | Through Hole | Square | 125 °C | -65 ░C | 30 Áin | 0.76 Ám | 125 VDC | 5.65 mm | 0.222 " | Board to Cable/Wire | 0.05 in | 1.27 mm | 5.84 mm 6.6 mm 7.21 mm 8.13 mm | |
 3M (TC) | Push-Pull | 2 | Tin | All | Keying Slot | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | 0.094 in | 2.4 mm | UL94 V-0 | Gold | Copper Alloy | 0.05 in | 1.27 mm | Male Pin | Header | 100 µin | 2.54 µm | 12 | Solder | Through Hole Right Angle | Square | 125 °C | -65 ░C | 125 VDC | 5.33 mm | 0.21 in | Board to Cable/Wire | 0.05 in | 1.27 mm | Flash | |||
3M (TC) | Latch Lock/Eject Hooks Short | 2 | Tin | All | Keying Slot | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | 0.094 in | 2.4 mm | UL94 V-0 | Gold | Copper Alloy | 0.05 in | 1.27 mm | Male Pin | Header | 100 µin | 2.54 µm | 12 | Solder | Through Hole | Square | 125 °C | -65 ░C | 125 VDC | 5.65 mm | 0.222 " | Board to Cable/Wire | 0.05 in | 1.27 mm | 5.84 mm 6.6 mm 7.21 mm 8.13 mm | Flash |
