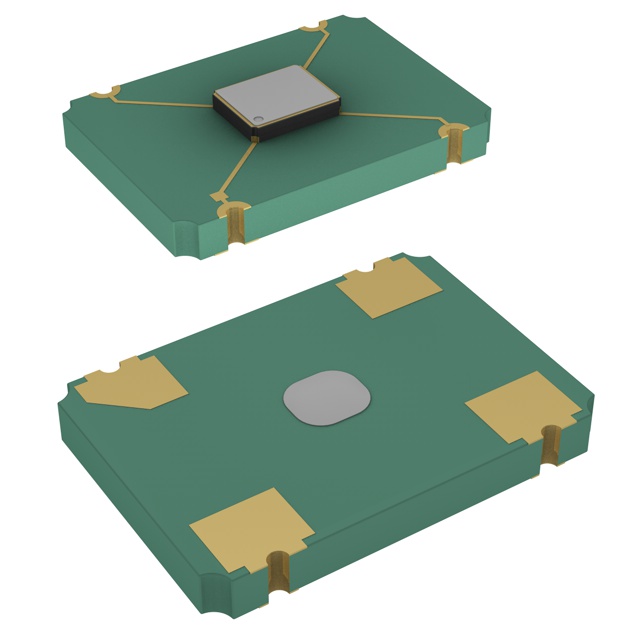

KC7050K Series
Manufacturer: KYOCERA AVX
Beta
⌘K
STANDARD CLOCK OSCILLATORS 22.5792MHZ CLOCK OSC IL CMOS
| Part | Current - Supply (Disable) (Max) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Frequency | Output | Function | Frequency Stability | Base Resonator [custom] | Current - Supply (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 5 µA | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | 85 °C | -40 C | 4-SMD No Lead | Surface Mount | 3.63 V | 1.6 V | 1.2 mm | 0.047 " | 22.5792 MHz | CMOS | Standby (Power Down) | 50 ppm | Crystal | 3.5 mA |
KYOCERA AVX | 5 µA | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | 70 °C | -10 °C | 4-SMD No Lead | Surface Mount | 3.63 V | 1.6 V | 1.2 mm | 0.047 " | 20 MHz | CMOS | Standby (Power Down) | 50 ppm | Crystal | 3.5 mA |
KYOCERA AVX | 5 µA | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | 70 °C | -10 °C | 4-SMD No Lead | Surface Mount | 3.63 V | 1.6 V | 1.2 mm | 0.047 " | 32 MHz | CMOS | Standby (Power Down) | 50 ppm | Crystal | 5 mA |
 KYOCERA AVX | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | 70 °C | -10 °C | 4-SMD No Lead | Surface Mount | 3.63 V | 1.6 V | 1.2 mm | 0.047 " | 50 MHz | CMOS | Standby (Power Down) | 50 ppm | Crystal | 6 mA | |
KYOCERA AVX | 5 mm | 7 mm | 0.197 " | 0.276 " | XO (Standard) | 70 °C | -10 °C | 4-SMD No Lead | Surface Mount | 3.63 V | 1.6 V | 1.2 mm | 0.047 " | 40 MHz | CMOS | Standby (Power Down) | 50 ppm | Crystal | 5 mA |
