- Series

Manufacturer: INFINEON

Catalog

SSR RELAY SPST-NO 1A 0-60V

Part	Package / Case	Approval Agency	Output Type	On-State Resistance (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	Load Current	Voltage - Input	Termination Style	Circuit

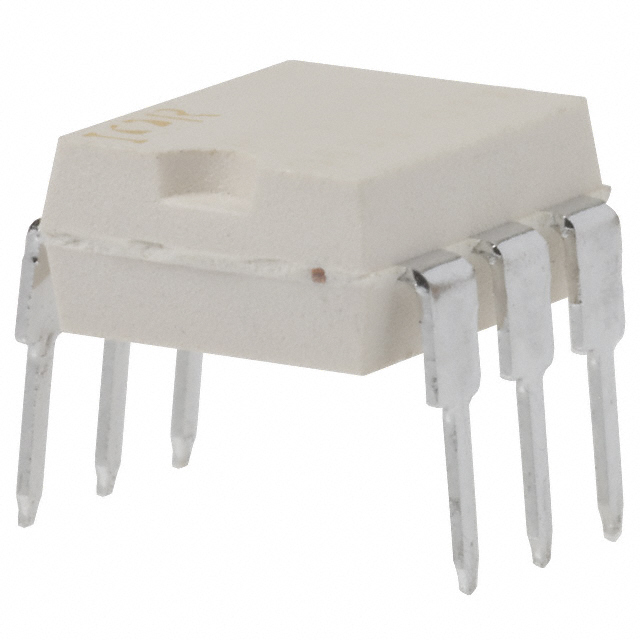

INFINEON PVG612	6-DIP (0.300" 7.62mm)	UL	AC DC	500 mOhm	85 °C	-40 C	6-DIP	60 V	0 V	Through Hole	1000 mA	1.2 VDC	PC Pin
INFINEON PVU414	6-DIP (0.300" 7.62mm)	UL	AC DC	27 Ohms	85 °C	-40 C	6-DIP	400 V	0 V	Through Hole	140 mA	1.2 VDC	PC Pin
INFINEON PVT322	8-DIP (0.300" 7.62mm)	UL	AC DC	10 Ohms	85 °C	-40 C	8-DIP	250 V	0 V	Through Hole	170 mA	1.2 VDC	PC Pin	SPST-NO (1 Form A) x 2
INFINEON PVT442	6-DIP (0.300" 7.62mm)	UL	AC DC	16 Ohms	85 °C	-40 C	6-DIP	400 V	0 V	Through Hole	170 mA	1.2 VDC	PC Pin	SPST-NC (1 Form B)
INFINEON 63-9019
INFINEON PVT422	8-DIP (0.300" 7.62mm)	UL	AC DC	35 Ohm	85 °C	-40 C	8-DIP	400 V	0 V	Through Hole	120 mA	1.2 VDC	PC Pin	SPST-NO (1 Form A) x 2
INFINEON 63-8035
INFINEON 63-8028
INFINEON PVT412	6-DIP (0.300" 7.62mm)	UL	AC DC	27 Ohms	85 °C	-40 C	6-DIP	400 V	0 V	Through Hole	140 mA	1.2 VDC	PC Pin
INFINEON 63-9015
