01059 Series

Catalog

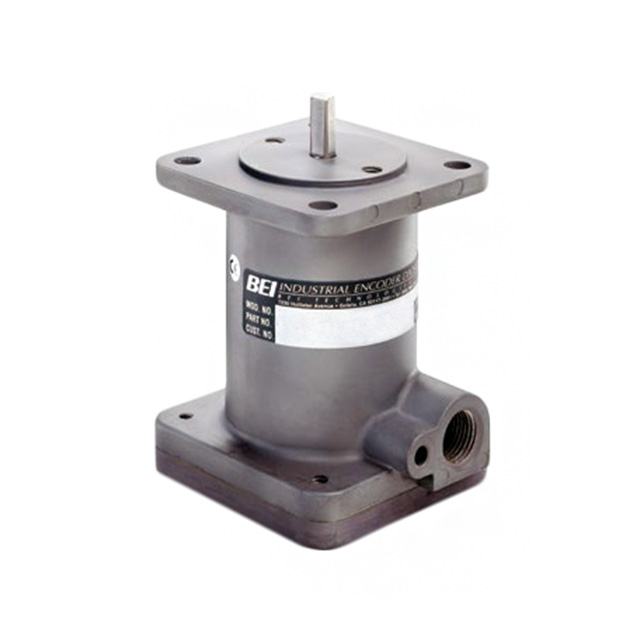

ENCODER OPT QUAD TERMINAL BLOCK

Part	Orientation	Mounting Type	Actuator Type	Output Type	Pulses per Revolution	Rotational Life (Cycles Min) [Min]	Encoder Type	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Pulses per Revolution
Sensata-BEI Encoders 01059-009	User Selectable	Chassis Mount	Shaft	Quadrature with Index (Incremental)	2048	200 M	Optical	Terminal Block Straight - Push In	28 V	5 V
Sensata-BEI Encoders 01059-046	User Selectable	Chassis Mount	Shaft	Quadrature with Index (Incremental)	2400	200 M	Optical	Terminal Block Straight - Push In	28 V	5 V
Sensata-BEI Encoders 01059-009	User Selectable	Chassis Mount	Shaft	Quadrature with Index (Incremental)	2048	200 M	Optical	Terminal Block Straight - Push In	28 V	5 V
Sensata-BEI Encoders 01059-067	User Selectable	Chassis Mount	Shaft	Pulse			Optical	Terminal Block Straight - Push In	28 V	5 V	Programmable
Sensata-BEI Encoders 01059-008	User Selectable	Chassis Mount	Shaft	Quadrature with Index (Incremental)	1024		Optical	Terminal Block Straight - Push In	28 V	5 V
Sensata-BEI Encoders 01059-067	User Selectable	Chassis Mount	Shaft	Pulse	360		Optical	Terminal Block Straight - Push In	28 V	5 V
Sensata-BEI Encoders 01059-008	User Selectable	Chassis Mount	Shaft	Quadrature with Index (Incremental)	1024		Optical	Terminal Block Straight - Push In	28 V	5 V
Sensata-BEI Encoders 01059-046	User Selectable	Chassis Mount	Shaft	Quadrature with Index (Incremental)	2400	200 M	Optical	Terminal Block Straight - Push In	28 V	5 V
