PM5-B5R28 Series
Manufacturer: Bivar Inc.
Beta
⌘K

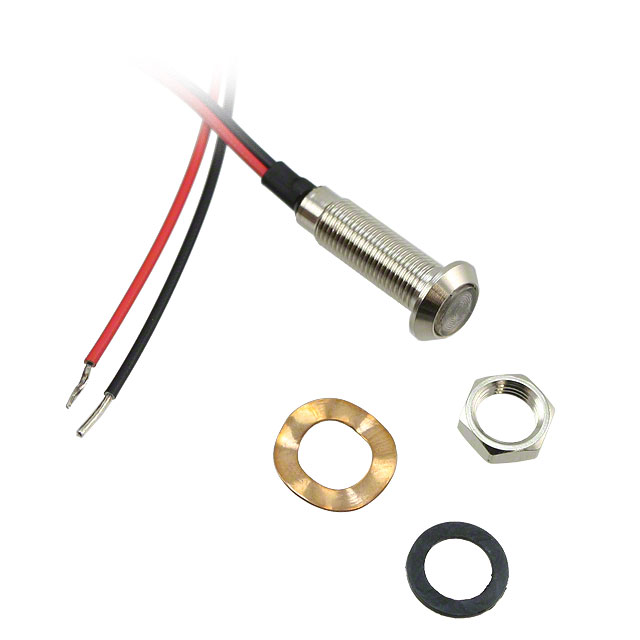

PANEL MOUNT ASSEM 5MM RED
| Part | Type | Panel Cutout Shape | Panel Cutout Dimensions [custom] | Panel Cutout Dimensions [custom] | Lens Style | Millicandela Rating | Ingress Protection | Wavelength - Peak | Lens Size [diameter] | Viewing Angle | Termination Style | Lens Transparency | Ratings | Lens Color | Lamp Color | Current | Voltage [Min] | Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bivar Inc. | LED | Round | 0.2 in | 5.08 mm | Round with Flat Top | 39 mcd | IP67 | 660 nm | 5.1 mm Dia | 120 ° | Wire Leads - 5.9" (150.00mm) | Fresnel | DC | Red | Red | 20 mA | 24 V | 28 V |
