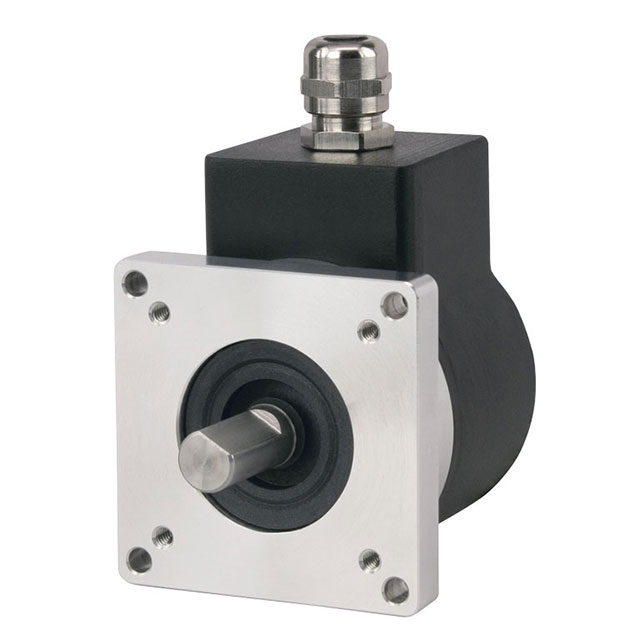

702-20 Series

Catalog

2.0" DIA 3/8" DIA. SHAFT SERVO

Part	Actuator Type	Pulses per Revolution	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Mounting Type	Detent	Orientation	Output Type	Built in Switch	Termination Style	Encoder Type	Rotational Life (Cycles Min)
Encoder Products Company 702-20-S-4096-R-HV-1-S-1-SX-N-N	Shaft	4096	4.75 V	28 V	Servo Mount	No	User Selectable	Quadrature Line Driver with Index (Incremental)	No	PC Pin	Incremental	1.5 B
Encoder Products Company 702-20-S-0360-R-HV-1-F-1-SX-N-N	Shaft	360	4.75 V	28 V	Flange Mount	No	User Selectable	Quadrature Line Driver with Index (Incremental)	No	PC Pin	Incremental	1.5 B
Encoder Products Company 702-20-S-1000-R-HV-1-F-1-SX-N-N	Shaft	1000	4.75 V	28 V	Flange Mount	No	User Selectable	Quadrature Line Driver with Index (Incremental)	No	PC Pin	Incremental	1.5 B
Encoder Products Company 702-20-S-3600-R-OC-1-S-1-SY-N-N	Shaft	3600	4.75 V	28 V	Servo Mount	No	User Selectable	Open Collector	No	PC Pin	Incremental	1.5 B
Encoder Products Company 702-20-S-5000-R-OC-1-S-1-SY-N-N	Shaft	5000	4.75 V	28 V	Servo Mount	No	User Selectable	Open Collector	No	PC Pin	Incremental	1.5 B
Encoder Products Company 702-20-S-0200-R-OC-1-S-1-SY-N-N	Shaft	200	4.75 V	28 V	Servo Mount	No	User Selectable	Open Collector	No	PC Pin	Incremental	1.5 B
Encoder Products Company 702-20-S-2048-R-HV-1-S-1-SX-N-N	Shaft	2048	4.75 V	28 V	Servo Mount	No	User Selectable	Quadrature Line Driver with Index (Incremental)	No	PC Pin	Incremental	1.5 B
Encoder Products Company 702-20-S-0360-R-OC-1-F-1-SY-N-N	Shaft	360	4.75 V	28 V	Flange Mount	No	User Selectable	Open Collector	No	PC Pin	Incremental	1.5 B
Encoder Products Company 702-20-S-5000-R-OC-1-F-1-SY-N-N	Shaft	5000	4.75 V	28 V	Flange Mount	No	User Selectable	Open Collector	No	PC Pin	Incremental	1.5 B
Encoder Products Company 702-20-S-0500-R-HV-1-S-1-SX-N-N	Shaft	500	4.75 V	28 V	Servo Mount	No	User Selectable	Quadrature Line Driver with Index (Incremental)	No	PC Pin	Incremental	1.5 B
