200-015 Series
Manufacturer: NorComp Inc.
Beta
⌘K

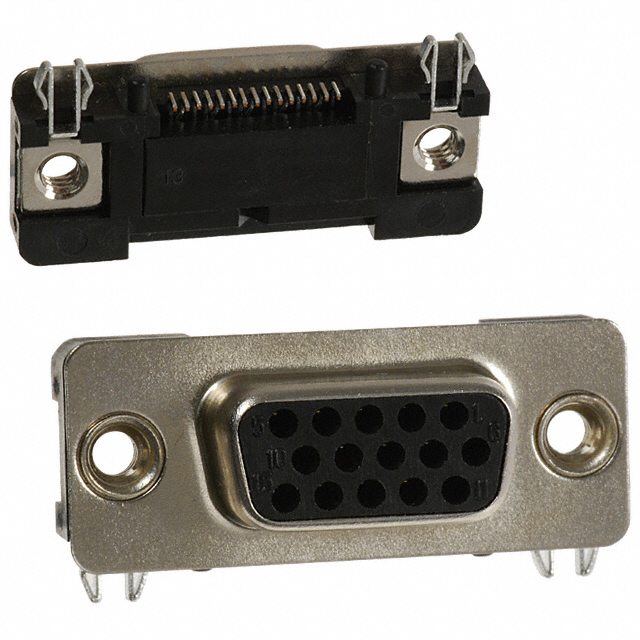

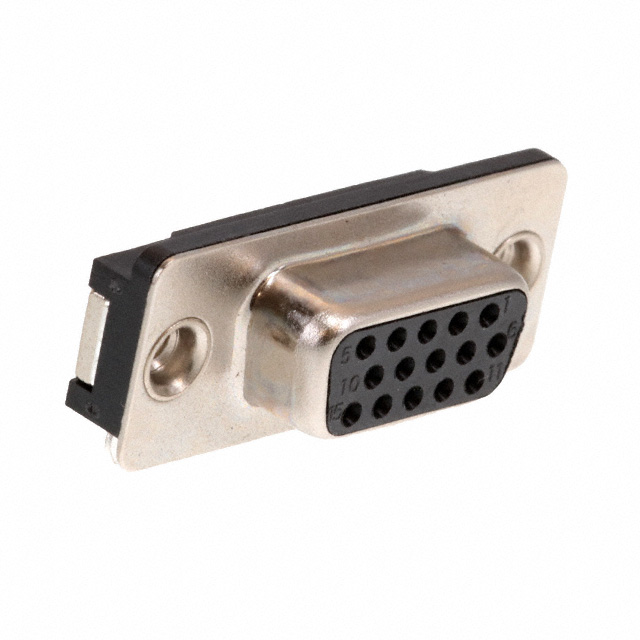

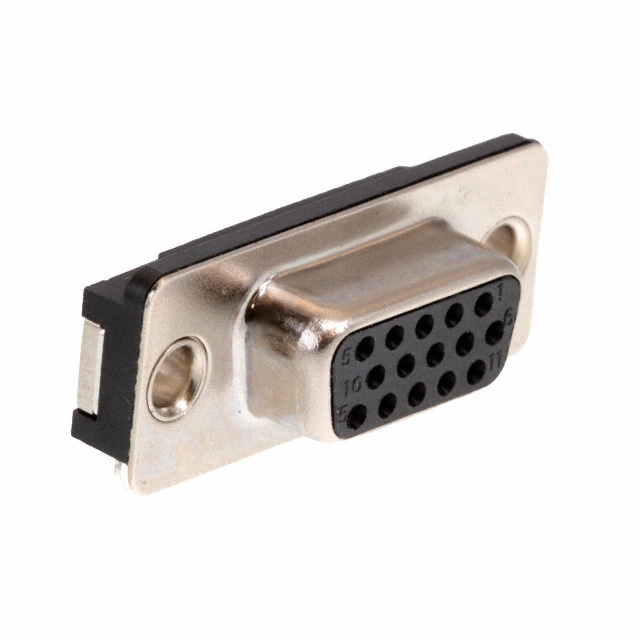

D SUB CONNECTOR, HD15, 15 CONTACTS, RECEPTACLE, SOLDER, DE, 200 SERIES, STEEL BODY
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Dielectric Material | Color | Termination | Connector Type | Features | Contact Finish | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Shell Material, Finish | Number of Rows [custom] | Material Flammability Rating | Connector Style | Contact Type | Current Rating (Amps) | Number of Positions | Contact Finish Thickness | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | -55 C | 85 °C | 250 V | Brass | Polybutylene Terephthalate (PBT) | Black | Solder | Receptacle Female Sockets | Board Lock | Gold | Housing/Shell (Unthreaded) | (DE E) High Density | 1 | Panel Mount Right Angle Through Hole | Nickel Plated Steel | 3 | UL94 V-0 | D-Sub High Density | Signal | 3 A | 15 | Flash | |||
 NorComp Inc. | -55 C | 85 °C | 250 V | Brass | Polybutylene Terephthalate (PBT) | Black | Solder | Receptacle Female Sockets | Board Lock | Gold | Housing/Shell | (DE E) High Density | 1 | Panel Mount Right Angle Through Hole | Nickel Plated Steel | 3 | UL94 V-0 | D-Sub High Density | Signal | 3 A | 15 | 4-40 | 30 Áin | 0.76 Ám | |
 NorComp Inc. | -55 C | 85 °C | 250 V | Brass | Polybutylene Terephthalate (PBT) | Black | Solder | Receptacle Female Sockets | Board Lock | Gold | Housing/Shell (Unthreaded) | (DE E) High Density | 1 | Panel Mount Right Angle Through Hole | Nickel Plated Steel | 3 | UL94 V-0 | D-Sub High Density | Signal | 3 A | 15 | 30 Áin | 0.76 Ám | ||
 NorComp Inc. | -55 C | 105 ░C | 300 VDC | Phosphor Bronze | Polyamide (PA6T) Nylon 6T | Black | Solder | Receptacle Female Sockets | Board Lock Shielded | Gold | Housing/Shell | (DE E) High Density | 1 | Right Angle Surface Mount | Nickel Plated Steel | 3 | UL94 V-0 | D-Sub High Density | Signal | 2 A | 15 | Flash | 4-40 |
