KDB0305 Series
Manufacturer: Delta Electronics
Beta
⌘K

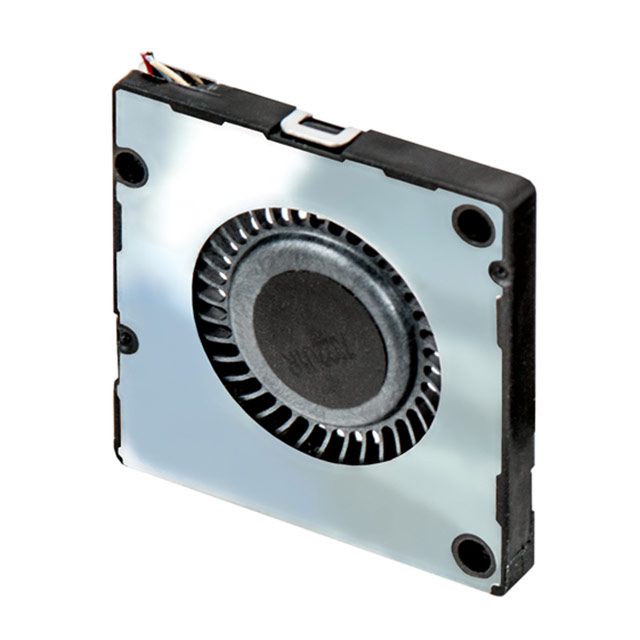

FAN BLOWER 30X3.5MM 5VDC RECT
| Part | Material - Blade | Current Rating (Amps) | Lifetime @ Temp. | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Features | Voltage - Rated | Fan Type | Termination | Bearing Type | Approval Agency | Static Pressure | Static Pressure | Air Flow | Air Flow | Width [x] | Ingress Protection | Noise | Size / Dimension [x] | Size / Dimension [z] | Weight [custom] | Weight [custom] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 0.35 A | 30000 Hrs | Plastic | 5.5 V | 4.5 V | 12500 RPM | -10 °C | 60 °C | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 5 V | Blower | 4 Position Rectangular Connector | Hydrodynamic | cULus TUV | 235.6 Pa | 0.946 in H2O | 0.95 CFM | 0.027 m³/min | 3.5 mm | IP55 - Dust Protected Water Resistant | 42 dB | 30 mm | 30 mm | 0.012 lb | 5.44 g | 1.75 W |
