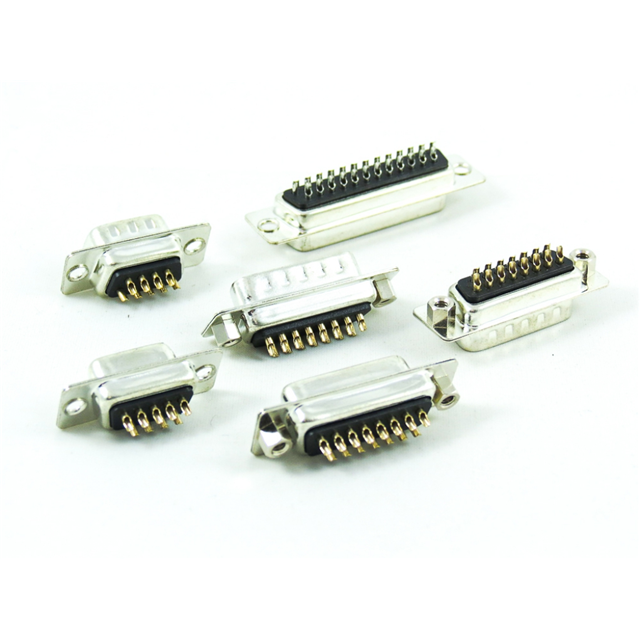

7907 Series
Manufacturer: Oupiin
Catalog
CONN D-SUB RCPT 25POS SLDR CUP
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Color | Contact Material | Number of Rows | Connector Type | Shell Size | Connector Layout | Current Rating | Contact Finish | Connector Style | Primary Material | Flange Feature | Termination | Shell Material | Finish | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Contact Type | Mounting Type | Number of Positions | Material Flammability Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | -55 °C | 105 °C | Glass Filled Polyester Thermoplastic | Black | Copper Alloy | 2 | Female Sockets Receptacle | 3 | B DB | 1 A | Gold | D-Sub | Metal | Housing Shell (Unthreaded) | Solder Cup | Metal | Tin Plated | 0 | Flash | Flash | Signal | Free Hanging (In-Line) | 25 | UL94 V-0 | |
Oupiin | -55 °C | 105 °C | Glass Filled Polyester Thermoplastic | Black | Copper Alloy | 2 | Female Sockets Receptacle | 1 | DE E | 1 A | Gold | D-Sub | Metal | Housing Shell (Unthreaded) | Solder Cup | Metal | Tin Plated | 0 | Flash | Flash | Signal | Free Hanging (In-Line) | 9 | UL94 V-0 | |
Oupiin | -55 °C | 105 °C | Glass Filled Polyester Thermoplastic | White | Copper Alloy | 2 | Male Pins Plug | 1 | DE E | 1 A | Gold | D-Sub | Metal | Housing Shell (Unthreaded) | Solder Cup | Metal | Tin Plated | 0 | Flash | Flash | Signal | Free Hanging (In-Line) | 9 | UL94 V-0 | Grounding Indents |
Oupiin | -55 °C | 105 °C | Glass Filled Polyester Thermoplastic | Black | Copper Alloy | 2 | Female Sockets Receptacle | 2 | A DA | 1 A | Gold | D-Sub | Metal | Housing Shell (Unthreaded) | Solder Cup | Metal | Tin Plated | 0 | Flash | Flash | Signal | Free Hanging (In-Line) | 15 | UL94 V-0 | |
Oupiin | -55 °C | 105 °C | Glass Filled Polyester Thermoplastic | White | Copper Alloy | 2 | Female Sockets Receptacle | 2 | A DA | 1 A | Gold | D-Sub | Metal | Housing Shell (Unthreaded) | Solder Cup | Metal | Tin Plated | 0 | Flash | Flash | Signal | Free Hanging (In-Line) | 15 | UL94 V-0 | |
Oupiin | -55 °C | 105 °C | Glass Filled Polyester Thermoplastic | Black | Copper Alloy | 2 | Male Pins Plug | 3 | B DB | 1 A | Gold | D-Sub | Metal | Housing Shell (Unthreaded) | Solder Cup | Metal | Tin Plated | 0 | Flash | Flash | Signal | Free Hanging (In-Line) | 25 | UL94 V-0 | Grounding Indents |
Oupiin | -55 °C | 105 °C | Glass Filled Polyester Thermoplastic | Black | Copper Alloy | 2 | Male Pins Plug | 1 | DE E | 1 A | Gold | D-Sub | Metal | Housing Shell (Unthreaded) | Solder Cup | Metal | Tin Plated | 0 | Flash | Flash | Signal | Free Hanging (In-Line) | 9 | UL94 V-0 | Grounding Indents |
Oupiin | -55 °C | 105 °C | Glass Filled Polyester Thermoplastic | Black | Copper Alloy | 2 | Male Pins Plug | 2 | A DA | 1 A | Gold | D-Sub | Metal | Housing Shell (Unthreaded) | Solder Cup | Metal | Tin Plated | 0 | Flash | Flash | Signal | Free Hanging (In-Line) | 15 | UL94 V-0 | Grounding Indents |
