WB242D1 Series

Manufacturer: E-Switch

Catalog

SWITCH ROCKER DPST 20A 125V

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Switch Function	Ingress Protection	Actuator Type	Actuator Marking	Circuit	Color - Actuator/Cap	Approval Agency	Current Rating (Amps)	Voltage Rating - AC	Mounting Type	Features
E-Switch WB242D1921	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	On-Off	IP55 - Dust Protected Water Resistant	Concave (Curved)	O -	DPST	Red	CE cULus TUV	20 A	125 V	Panel Mount Snap-In

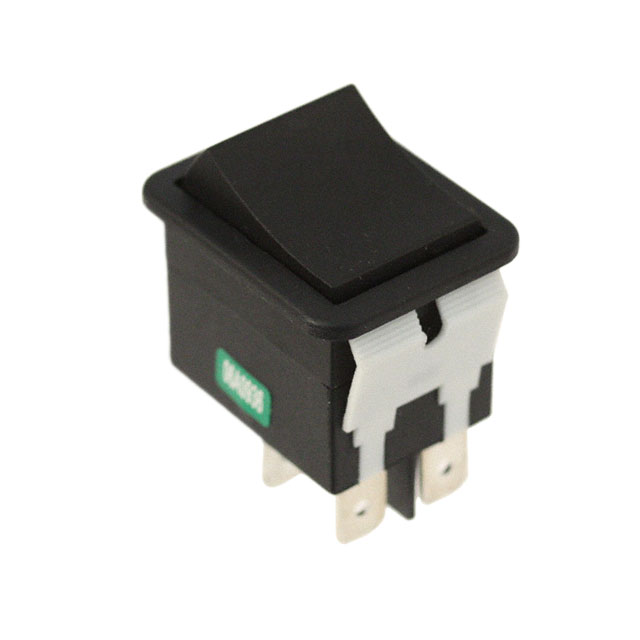

E-Switch WB242D1100	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	On-Off	IP55 - Dust Protected Water Resistant	Concave (Curved)	No Marking	DPST	Black	CE cULus TUV	20 A	125 V	Panel Mount Snap-In
E-Switch WB242D1121-ACC-KF05	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	On-Off	IP55 - Dust Protected Water Resistant	Concave (Curved)	O -	DPST	Black	CE cULus TUV	20 A	125 V	Panel Mount Snap-In	Sealing Boot

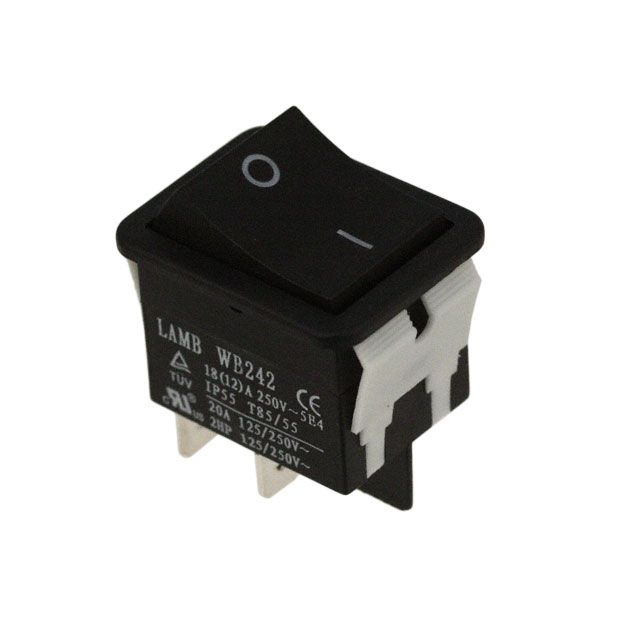

E-Switch WB242D1121	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	On-Off	IP55 - Dust Protected Water Resistant	Concave (Curved)	O -	DPST	Black	CE cULus TUV	20 A	125 V	Panel Mount Snap-In
E-Switch WB242D1100-ACC-KF05	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	On-Off	IP55 - Dust Protected Water Resistant	Concave (Curved)	No Marking	DPST	Black	CE cULus TUV	20 A	125 V	Panel Mount Snap-In	Sealing Boot
E-Switch WB242D112R	30 mm	22 mm	Quick Connect - 0.250" (6.3mm)	On-Off	IP55 - Dust Protected Water Resistant	Concave (Curved)	O I	DPST	Black	CE cULus TUV	20 A	125 V	Panel Mount Snap-In
