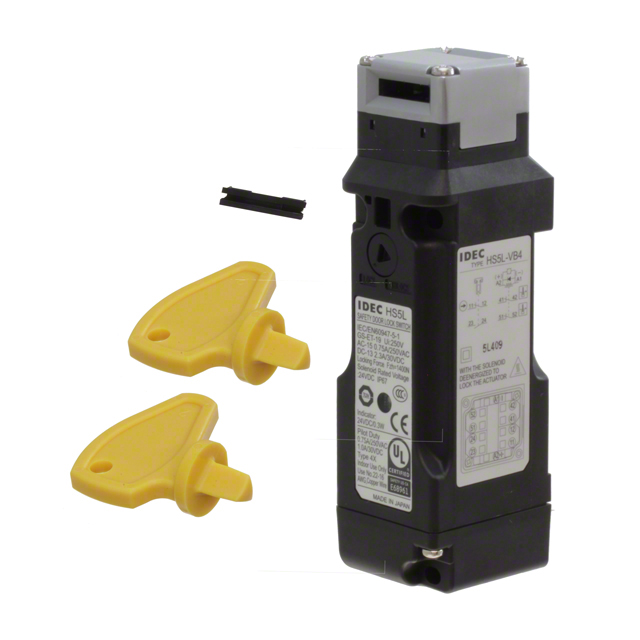

HS5L Series
Manufacturer: IDEC
Beta
⌘K
SAFETY INTERLOCK SWITCH, HS5L SERIES, 4PST-NC, SPRING CLAMP, 125 V, 2.5 A, IP67
| Part | Voltage - Supply | Ingress Protection | Current Rating (Amps) | Actuator Type | Termination Style | Approval Agency | Type | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Holding Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 24 V | IP67 - Dust Tight Waterproof | 2.5 A | Panel Disconnect | Spring Terminal | CCC CE TUV UL | Solenoid Release | DPST-NC x 2 | 55 °C | -25 °C | 30 VDC 125 VAC | 143 kgf |
 IDEC | 24 V | IP67 - Dust Tight Waterproof | 2.5 A | Panel Disconnect | Spring Terminal | CCC CE TUV UL | Solenoid Release | 3PST-2NC/1NO + SPST-NC | 55 °C | -25 °C | 30 VDC 125 VAC | 143 kgf |
 IDEC | 24 V | IP67 - Dust Tight Waterproof | 2.5 A | Panel Disconnect | Spring Terminal | CCC CE TUV UL | Solenoid Locking | DPST-NC DPST-NO/NC | 55 °C | -25 °C | 30 VDC 125 VAC | 143 kgf |
 IDEC | 24 V | IP67 - Dust Tight Waterproof | 2.5 A | Panel Disconnect | Spring Terminal | CCC CE TUV UL | Solenoid Release | DPST-NC x 2 | 55 °C | -25 °C | 30 VDC 125 VAC | 143 kgf |
 IDEC | 24 V | IP67 - Dust Tight Waterproof | 2.5 A | Panel Disconnect | Spring Terminal | CCC CE TUV UL | Solenoid Locking | 3PST-NC SPST-NC | 55 °C | -25 °C | 30 VDC 125 VAC | 143 kgf |
 IDEC | 24 V | IP67 - Dust Tight Waterproof | 2.5 A | Panel Disconnect | Spring Terminal | CCC CE TUV UL | Solenoid Release | DPST-NO/NC x 2 | 55 °C | -25 °C | 30 VDC 125 VAC | 143 kgf |
IDEC | 24 V | IP67 - Dust Tight Waterproof | 2.5 A | Panel Disconnect | Spring Terminal | CCC CE TUV UL | Solenoid Release | DPST-NC DPST-NO/NC | 55 °C | -25 °C | 30 VDC 125 VAC | 143 kgf |
 IDEC | IP67 - Dust Tight Waterproof | 2.5 A | Panel Disconnect | Spring Terminal | CCC CE TUV UL | Solenoid Locking | 3PST-NC SPST-NC | 55 °C | -25 °C | 30 VDC 125 VAC | 143 kgf | |
IDEC | 24 V | IP67 - Dust Tight Waterproof | 2.5 A | Panel Disconnect | Spring Terminal | CCC CE TUV UL | Solenoid Release | 3PST-2NC/1NO + SPST-NC | 55 °C | -25 °C | 30 VDC 125 VAC | 143 kgf |
IDEC | IP67 - Dust Tight Waterproof | 2.5 A | Panel Disconnect | Spring Terminal | CCC CE TUV UL | Solenoid Release | DPST-NC | 55 °C | -25 °C | 30 VDC 125 VAC | 143 kgf |
