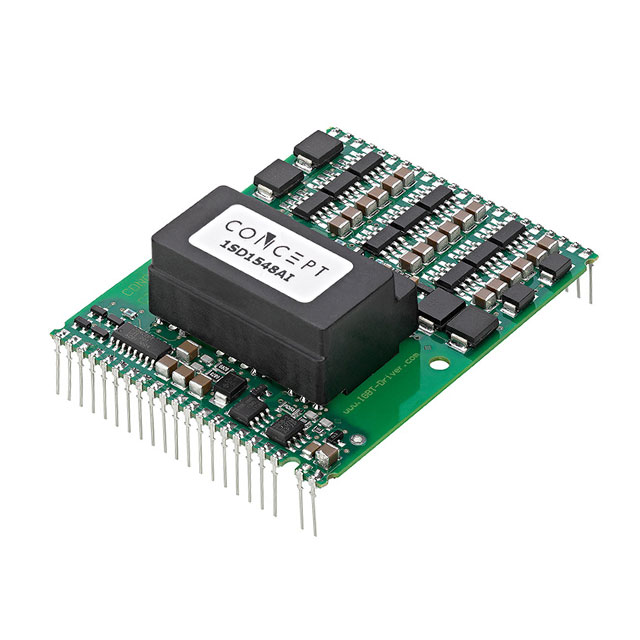

1SD1548 Series
Manufacturer: POWER INTEGRATIONS
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
IC GATE DRVR HALF-BRIDGE MODULE
| Part | Gate Type | Package Name | Mounting Type | Number of Drivers | Current - Peak Output (Source) | Current - Peak Output (Sink) | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Supply | Gate Channel | Driven Configuration | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 POWER INTEGRATIONS | IGBT MOSFET N-Channel P-Channel MOSFET | Module | Through Hole | 1 | 48 A | 48 A | 85 °C | -40 °C | 15 VDC | N-Channel P-Channel | Half-Bridge | Module |
