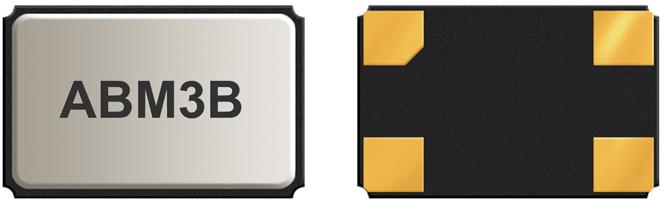

ABM3B Series

Catalog

CRYSTAL, 24MHZ, 18PF, SMD, 5MM X 3.2MM ROHS COMPLIANT: YES

Part	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Mode	Type	Load Capacitance	Frequency	Frequency Stability	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency Tolerance
Abracon LLC ABM3B-24.000MHZ-B4Y-T	50 Ohms	-20 ░C	70 °C	Fundamental	MHz Crystal	18 pF	24 MHz	30 ppm	4-SMD No Lead	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	0.043 "	1.1 mm	30 ppm
Abracon LLC ABM3B-10.000MHZ-10-B-1-U-T	100 Ohms	-20 ░C	70 °C	Fundamental	MHz Crystal	10 pF	10 MHz	10 ppm	4-SMD No Lead	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	0.043 "	1.1 mm	10 ppm
Abracon LLC ABM3B-27.000MHZ-B2-T	50 Ohms	-20 ░C	70 °C	Fundamental	MHz Crystal	18 pF	27 MHz	50 ppm	4-SMD No Lead	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	0.043 "	1.1 mm	20 ppm
Abracon LLC ABM3B-12.000MHZ-D4Y-T	70 Ohm	-40 C	85 °C	Fundamental	MHz Crystal	18 pF	12 MHz	30 ppm	4-SMD No Lead	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	0.043 "	1.1 mm	30 ppm
Abracon LLC ABM3B-13.000MHZ-B2-T	70 Ohm	-20 ░C	70 °C	Fundamental	MHz Crystal	18 pF	13 MHz	50 ppm	4-SMD No Lead	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	0.043 "	1.1 mm	20 ppm
Abracon LLC ABM3B-25.000MHZ-B2-T	50 Ohms	-20 ░C	70 °C	Fundamental	MHz Crystal	18 pF	25 MHz	50 ppm	4-SMD No Lead	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	0.043 "	1.1 mm	20 ppm
Abracon LLC ABM3B-12.000MHZ-10-B-1-U-T	70 Ohm	-20 ░C	70 °C	Fundamental	MHz Crystal	10 pF	12 MHz	10 ppm	4-SMD No Lead	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	0.043 "	1.1 mm	10 ppm
Abracon LLC ABM3B-12.000MHZ-12-N2Y-T	70 Ohm	-30 ░C	85 °C	Fundamental	MHz Crystal	12 pF	12 MHz	30 ppm	4-SMD No Lead	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	0.043 "	1.1 mm	20 ppm
