19400240 Series

Manufacturer: HARTING

Catalog

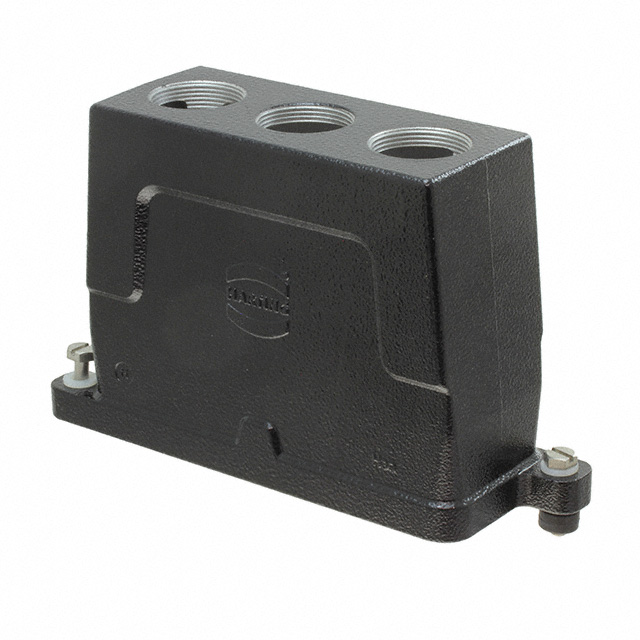

24B HPR HOOD, SCREW LOCKING TOP ENTRY, HIGH CONSTRUCTION, 3XM32

Part	Housing Finish	Thread Size	Connector Type	Housing Color	Size	Lock Location	Style	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features
HARTING 19400240467	Powder Coated	M32	Hood	Black	24 B	Screw Locks on Hood	Top Entry Triple	Aluminum Die Cast	125 °C	-40 C	2.283 in	192 mm	120 mm	58 mm	7.559 "	4.724 in

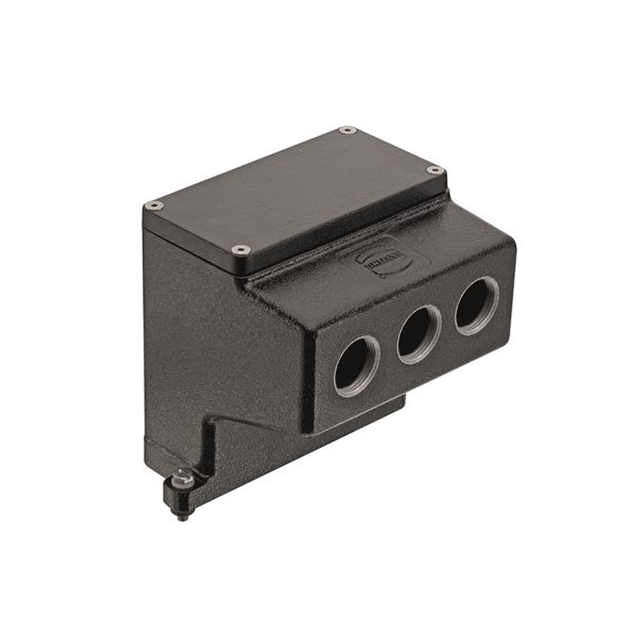

HARTING 19400240652	Powder Coated	M32	Hood - 90°	Black	24 B	Screw Locks on Hood	Side Entry Triple	Aluminum Die Cast	125 °C	-40 C	5.118 "	192 mm	153 mm	130 mm	7.559 "	6.024 "
HARTING 19400240462		M16 M40	Hood	Black	24 B	Screw Locks on Hood	Top Entry	Aluminum Die Cast	125 °C	-40 C
HARTING 19400240483	Powder Coated		Hood	Black	24 B	Locking Clip (1) on Hood	Top Entry	Aluminum Die Cast	125 °C	-40 C							Corrosion Resistant
HARTING 19400240471	Powder Coated	M20 M25	Hood	Black	24 B	Screw Locks on Hood	Top Entry Quad	Aluminum Die Cast	125 °C	-40 C	2.283 in	192 mm	110 mm	58 mm	7.559 "	4.331 in
HARTING 19400240402	Powder Coated	M32	Hood	Black	24 B	Screw Locks on Hood	Top Entry	Aluminum Die Cast	125 °C	-40 C	2.283 in	192 mm	110 mm	58 mm	7.559 "	4.331 in

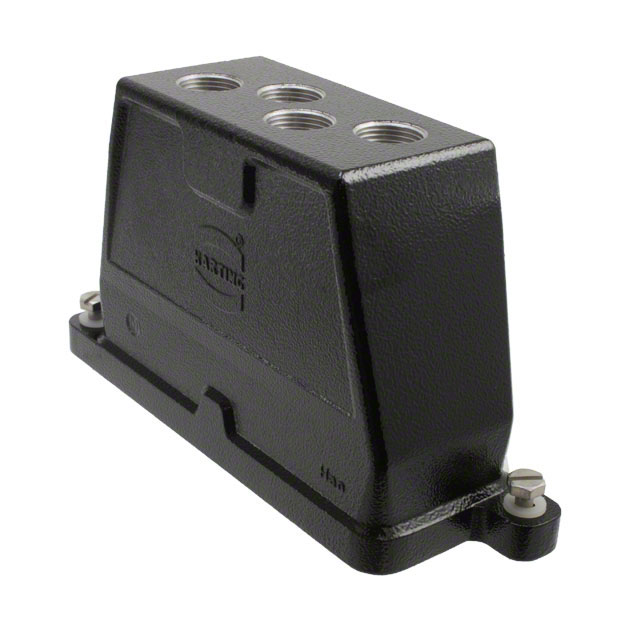

HARTING 19400240473	Epoxy Powder Paint	M20	Hood	Black	24 B	Screw Locks on Hood	Top Entry Quad	Aluminum Die Cast	125 °C	-40 C	2.283 in	192 mm	110 mm	58 mm	7.559 "	4.331 in
HARTING 19400240463
HARTING 19400240514	Powder Coated	M50	Hood	Black	24 B	Screw Locks on Hood	Side Entry	Aluminum Die Cast	125 °C	-40 C	2.283 in	192 mm	110.5 mm	58 mm	7.559 "	4.35 "

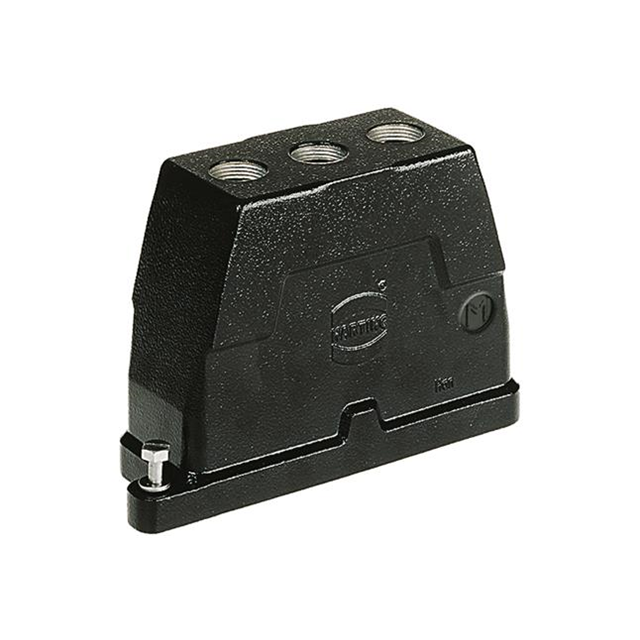

HARTING 19400240461	Powder Coated	M25	Hood	Black	24 B	Screw Locks on Hood	Top Entry Triple	Aluminum Die Cast	125 °C	-40 C	2.283 in	192 mm	110 mm	58 mm	7.559 "	4.331 in
