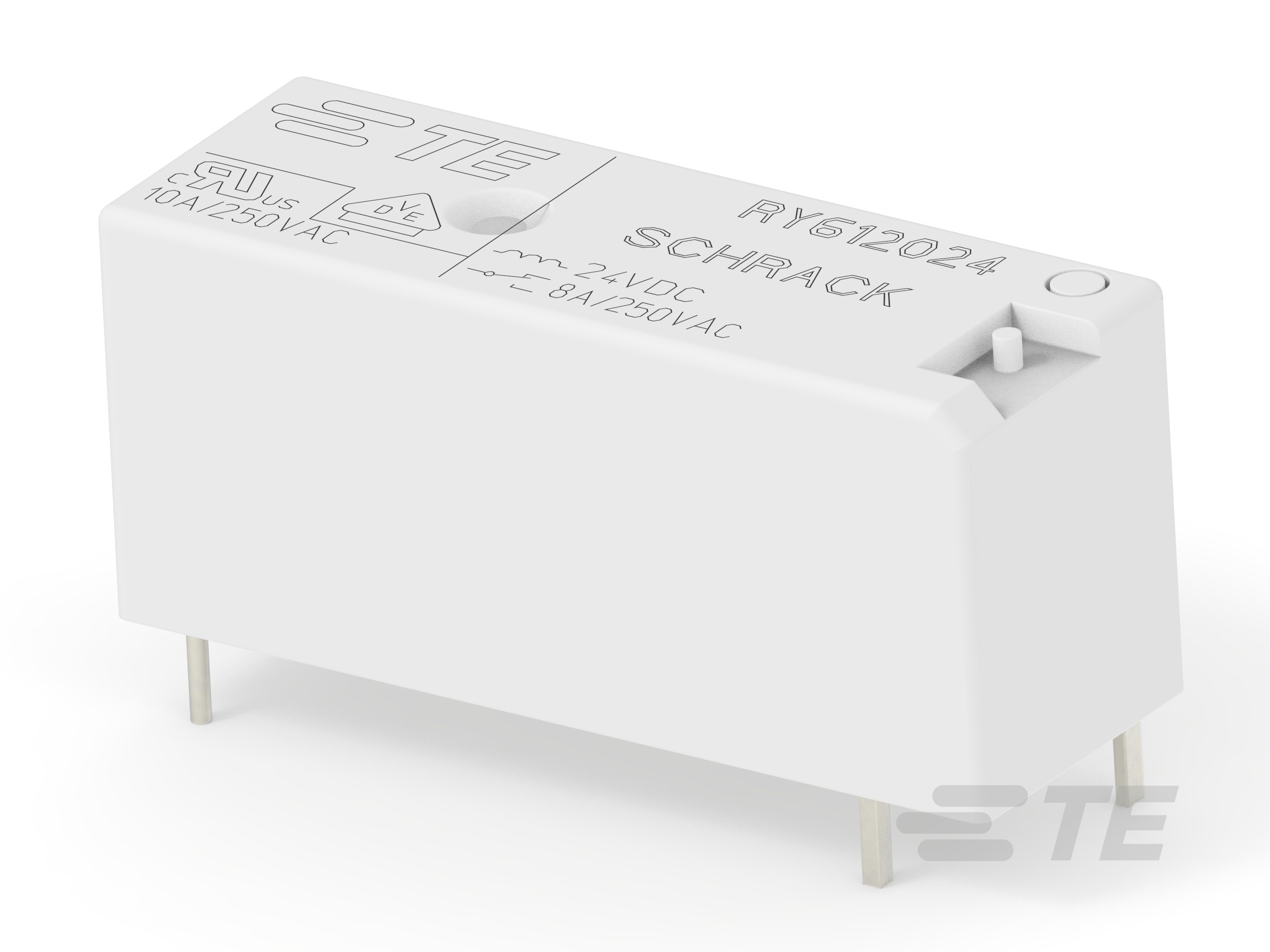

General Purpose Relays RY6120244
General Purpose Relays RY6120244
| Part | Seal Rating | Contact Rating (Current) | Must Operate Voltage | Must Release Voltage | Approval Agency | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Contact Material | Termination Style | Operate Time | Contact Form | Coil Type | Coil Voltage | Load - Max Switching | Relay Type | Switching Voltage [Max] | Coil Resistance | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Sealed - Fully | 8 A | 3.5 VDC | 0.5 VDC | cURus VDE | Through Hole | 70 °C | -40 C | 5 ms | Silver Nickel (AgNi) | PC Pin | 9 ms | SPDT (1 Form C) | Non Latching | 5 VDC | 3200 VA | General Purpose | 400 VAC | ||
TE Connectivity AMP Connectors | Sealed - Fully | 8 A | 16.8 VDC | 2.4 VDC | cURus VDE | Through Hole | 70 °C | -40 C | 5 ms | Gold (Au) Silver Nickel (AgNi) | PC Pin | 9 ms | SPDT (1 Form C) | Non Latching | 24 VDC | 3200 VA | General Purpose | 400 VAC | 2.35 kOhms | 10.2 mA |
TE Connectivity AMP Connectors | Sealed - Fully | 8 A | 14.7 VDC | 2.1 VDC | cURus VDE | Through Hole | 70 °C | -40 C | 5 ms | Silver Nickel (AgNi) | PC Pin | 9 ms | SPDT (1 Form C) | Non Latching | 21 VDC | 3200 VA | General Purpose | 400 VAC | ||
 TE Connectivity AMP Connectors | Sealed - Fully | 8 A | 8.4 VDC | 1.2 VDC | cURus VDE | Through Hole | 70 °C | -40 C | 5 ms | Silver Nickel (AgNi) | PC Pin | 9 ms | SPDT (1 Form C) | Non Latching | 12 VDC | 3200 VA | General Purpose | 400 VAC | 627 Ohms | 19.1 mA |
 TE Connectivity AMP Connectors | Sealed - Fully | 8 A | 16.8 VDC | 2.4 VDC | cURus VDE | Through Hole | 70 °C | -40 C | 5 ms | Silver Nickel (AgNi) | PC Pin | 9 ms | SPDT (1 Form C) | Non Latching | 24 VDC | 3200 VA | General Purpose | 400 VAC | 2.35 kOhms | 10.2 mA |
TE Connectivity AMP Connectors | Sealed - Fully | 8 A | 12.6 VDC | 1.8 VDC | cURus VDE | Through Hole | 70 °C | -40 C | 5 ms | Gold (Au) Silver Nickel (AgNi) | PC Pin | 9 ms | SPDT (1 Form C) | Non Latching | 18 VDC | 3200 VA | General Purpose | 400 VAC |
