1986725 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK PLUG 14POS STR 3.5MM

Part	Mounting Type	Current - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Positions Per Level	Type	Number of Positions	Voltage - UL	Features	Color	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Insulation Height	Insulation Height	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Material Flammability Rating	Contact Mating Finish	Number of Levels	Contact Material	Pitch [x]	Pitch [x]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]

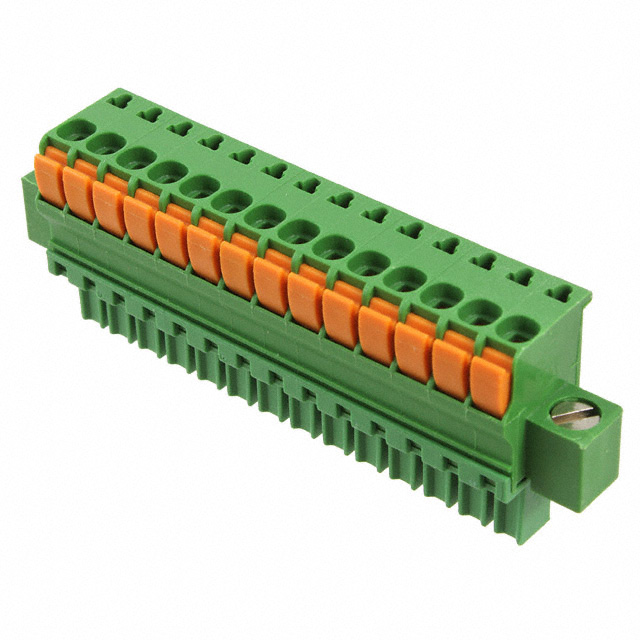

TE Connectivity Raychem Cable Protection 1-1986725-4	Free Hanging (In-Line)	9 A	14 AWG	30 AWG	Push-In Spring Screwless - Leg Spring	14	Plug Female Sockets	14	300 V	Mating Flange	Green	-40 °C	110 °C	Polyamide (PA) Nylon	11.66 mm	0.459 in	2 mm˛	0.05 mm˛	UL94 V-0	Tin	1	Copper Alloy	3.5 mm	0.138 in

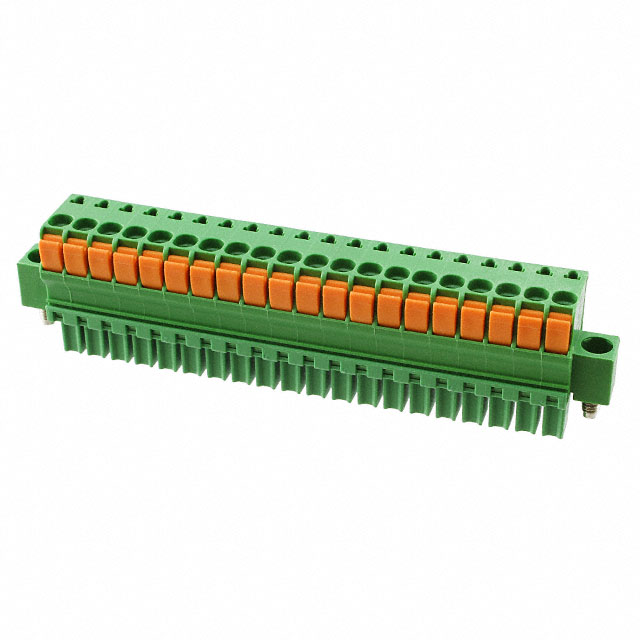

TE Connectivity Raychem Cable Protection 2-1986725-0	Free Hanging (In-Line)	9 A	14 AWG	30 AWG	Push-In Spring Screwless - Leg Spring	20	Plug Female Sockets	20	300 V	Mating Flange	Green	-40 °C	110 °C	Polyamide (PA) Nylon	11.66 mm	0.459 in			UL94 V-0	Tin	1	Copper Alloy	3.5 mm	0.138 in	0.05 mm²	2 mm²

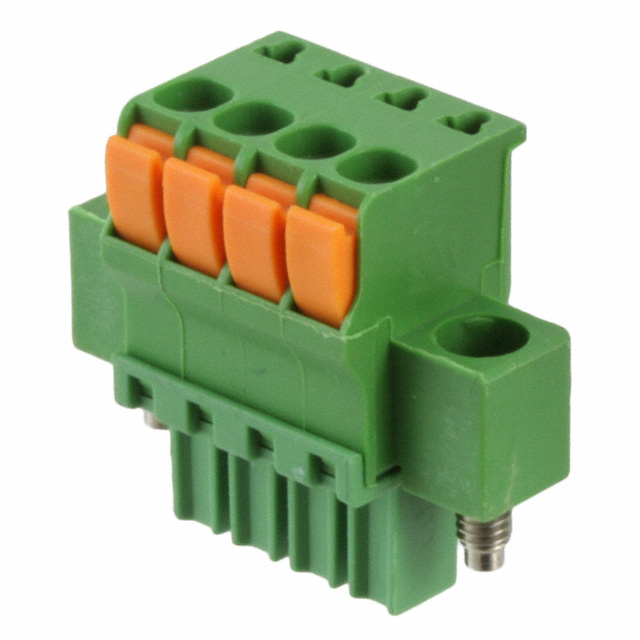

TE Connectivity Raychem Cable Protection 1986725-4	Free Hanging (In-Line)	9 A	14 AWG	30 AWG	Push-In Spring Screwless - Leg Spring	4	Plug Female Sockets	4	300 V	Mating Flange	Green	-40 °C	110 °C	Polyamide (PA) Nylon	11.66 mm	0.459 in			UL94 V-0	Tin	1	Copper Alloy	3.5 mm	0.138 in	0.05 mm²	2 mm²

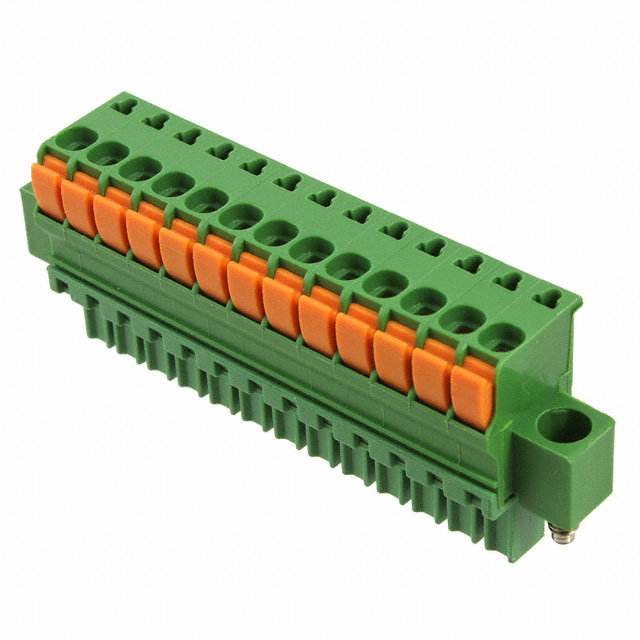

TE Connectivity Raychem Cable Protection 1-1986725-3	Free Hanging (In-Line)	9 A	14 AWG	30 AWG	Push-In Spring Screwless - Leg Spring	13	Plug Female Sockets	13	300 V	Mating Flange	Green	-40 °C	110 °C	Polyamide (PA) Nylon	11.66 mm	0.459 in	2 mm˛	0.05 mm˛	UL94 V-0	Tin	1	Copper Alloy	3.5 mm	0.138 in
