SSL1A Series

Catalog

SSR RELAY SPST-NO 2A 24-280V

Part	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	Supplier Device Package	Termination Style	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Load Current	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Output Type
SCHNEIDER ELECTRIC SSL1A12JD	24 V	280 V	Through Hole	4-SIP	PC Pin	CE CSA GOST UL	12 VDC	3 V	2 A	4-SIP Module	-20 ░C	70 °C	AC Zero Cross
SCHNEIDER ELECTRIC SSL1A12BDR	24 V	280 V	Through Hole		PC Pin	CE CSA GOST UL	30 V	15 V	2 A	4-SIP	-20 ░C	70 °C	AC
SCHNEIDER ELECTRIC SSL1A12BD	24 V	280 V	Through Hole	4-SIP	PC Pin	CE CSA UL	30 V	15 V	2 A	4-SIP Module	-20 ░C	80 °C	AC Zero Cross
SCHNEIDER ELECTRIC SSL1A12JDR	24 V	280 V	Through Hole		PC Pin	CE CSA GOST UL	12 VDC	3 V	2 A	4-SIP	-20 ░C	70 °C	AC
SCHNEIDER ELECTRIC SSL1A12BDPR			DIN Rail		Screw Terminal	CE CSA GOST UL	30 V	16 V	2 A	Module	-20 ░C	70 °C	AC Zero Cross
SCHNEIDER ELECTRIC SSL1A12JDPV			DIN Rail		Screw Terminal	CE CSA GOST UL	12 VDC	4 V	2 A	Module	-20 ░C	70 °C	AC Zero Cross

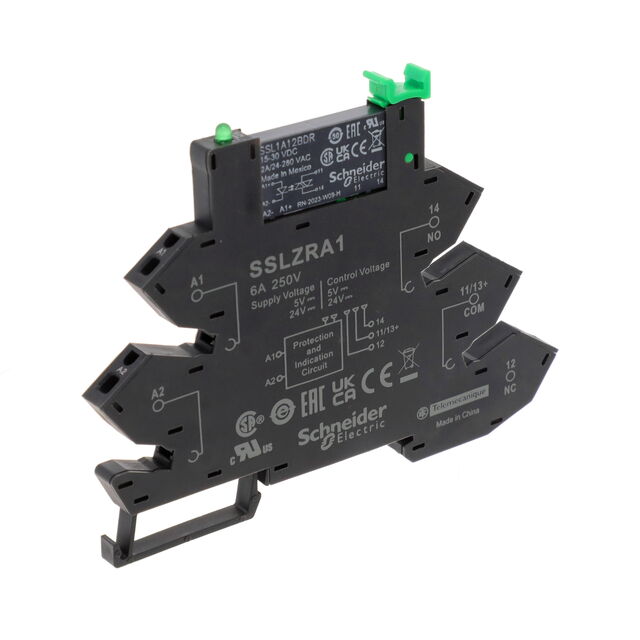

SCHNEIDER ELECTRIC SSL1A12BDRPR			DIN Rail		Screw Terminal	CE CSA GOST UL	30 V	16 V	2 A	Module	-20 ░C	70 °C	AC
SCHNEIDER ELECTRIC SSL1A12BDPV			DIN Rail		Screw Terminal	CE CSA GOST UL	30 V	16 V	2 A	Module	-20 ░C	70 °C	AC Zero Cross
SCHNEIDER ELECTRIC SSL1A12BDRPV			DIN Rail		Screw Terminal	CE CSA GOST UL	30 V	16 V	2 A	Module	-20 ░C	70 °C	AC
