317-040 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 40 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Gender	Card Type	Contact Material	Contact Type	Number of Positions	Mounting Type	Read Out	Termination	Contact Finish	Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Number of Positions/Bay/Row [custom]	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]

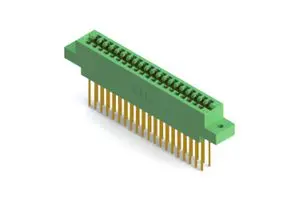

EDAC Inc. 317-040-540-802	Diallyl Phthalate (DAP)	20 Bay/Row	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	Copper Alloy	Cantilever	40	Through Hole	Dual	Wire Wrap	Gold	Green	-65 ░C	125 °C	3.96 mm	0.156 in
EDAC Inc. 317-040-541-608	Diallyl Phthalate (DAP)		0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	Copper Alloy	Cantilever	80	Through Hole	Single	Wire Wrap	Gold	Green	-65 ░C	125 °C	3.96 mm	0.156 in	40	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 317-040-540-878	Diallyl Phthalate (DAP)	20 Bay/Row	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	Copper Alloy	Cantilever	40	Through Hole	Dual	Wire Wrap	Gold	Green	-65 ░C	125 °C	3.96 mm	0.156 in		4-40 Threaded Insert Top Mount Opening	Card Guides

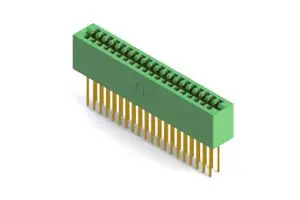

EDAC Inc. 317-040-540-801	Diallyl Phthalate (DAP)	20 Bay/Row	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	Copper Alloy	Cantilever	40	Through Hole	Dual	Wire Wrap	Gold	Green	-65 ░C	125 °C	3.96 mm	0.156 in

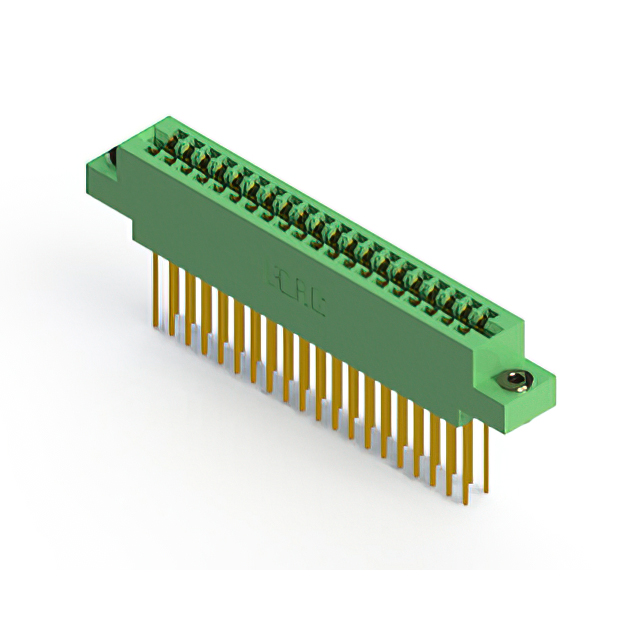

EDAC Inc. 317-040-540-803	Diallyl Phthalate (DAP)	20 Bay/Row	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	Copper Alloy	Cantilever	40	Through Hole	Dual	Wire Wrap	Gold	Green	-65 ░C	125 °C	3.96 mm	0.156 in		Floating Bobbin Flush Mount		0.116 "	2.95 mm
