241 Series

Power Transformers 50\60 Hz, Laminated Transformer

Manufacturer: Signal Transformer

Catalog

Power Transformers 50\60 Hz, Laminated Transformer

Catalog

Power Transformers 50\60 Hz, Laminated Transformer

Part	Weight	Weight	Current - Output (Max) [Max]	Termination Style	Size / Dimension [y]	Size / Dimension [x]	Voltage - Secondary (Full Load)	Center Tap	Voltage - Isolation	Power - Max [Max]	Height - Seated (Max) [Max] [z]	Secondary Winding(s)	Type	Primary Winding(s)	Mounting Type	Voltage - Primary	Weight [custom]	Weight [custom]	Height - Seated (Max) [Max]	Current - Output (Max)
Signal Transformer DP-241-5-10	0.7 lb	317.51 g	1.2 A	Quick Connect Solder	36.3 mm	71.4 mm	10 V		2500 Vrms	12 VA	42.8 mm	Single	Laminated Core	Dual	Chassis Mount	115 V 230 V

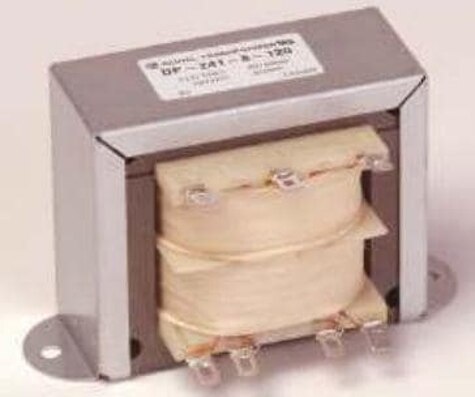

Signal Transformer 241-4-120L			50 mA	Wire Leads	33.3 mm	60.3 mm			2500 Vrms	6 VA	36.2 mm	Single	Laminated Core	Single	Chassis Mount	115 V	0.44 lb	199.58 g
Signal Transformer DP-241-6-28L	1.1 lbs	499 g		Wire Leads			28 V		2500 Vrms	30 VA		Single	Laminated Core	Dual	Chassis Mount	115 V 230 V			49.8 mm
Signal Transformer DP-241-8-56L			1.8 A	Wire Leads	58.5 mm	102.4 mm	56 V		2500 Vrms	100 VA		Single	Laminated Core	Dual	Chassis Mount	115 V 230 V	2.8 lbs	1.3 kg	67.7 mm
Signal Transformer 241-8-20L				Wire Leads	58.5 mm	102.4 mm	20 V		2500 Vrms	100 VA		Single	Laminated Core	Single	Chassis Mount	115 V	2.8 lbs	1.3 kg	67.7 mm	5 A
Signal Transformer 241-6-10	1.1 lbs	499 g	3 A	Quick Connect Solder			10 V		2500 Vrms	30 VA		Single	Laminated Core	Single	Chassis Mount	115 V			49.8 mm
Signal Transformer 241-7-12L	1.7 lbs	771.1 g	4 A	Wire Leads	49.2 mm	93.7 mm	12.6 V		2500 Vrms	56 VA	57.8 mm	Single	Laminated Core	Single	Chassis Mount	115 V
Signal Transformer DP-241-6-24L	1.1 lbs	499 g	1.25 A	Wire Leads			24 V		2500 Vrms	30 VA		Single	Laminated Core	Dual	Chassis Mount	115 V 230 V			49.8 mm
