171088 Series

EXTreme Ten60Power Right-Angle Plug with Guides, 3 Split Power Circuits, 15 Signal Circuits, 3 Split Power Circuits, Press Fit Tail

Manufacturer: Molex

Catalog

EXTreme Ten60Power Right-Angle Plug with Guides, 3 Split Power Circuits, 15 Signal Circuits, 3 Split Power Circuits, Press Fit Tail

Part	Features	Termination	Voltage Rating	Number of Positions Loaded	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Number of Positions	Color	Contact Finish	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Contact Layout, Typical	Number of Rows	Number of Positions

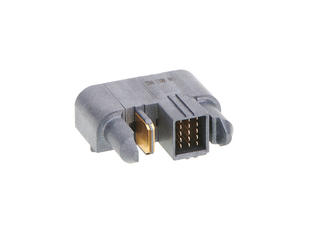

Molex 1710888411	Board Guide Guide Pin	Press-Fit	600 V	All	2.5 A 30 A	-40 °C	105 ░C	UL94 V-0	15	1	16	Black	Gold	Through Hole Right Angle	Plug Male Pins and Blades	0.76 Ám	30 Áin	EXTreme Ten60Power

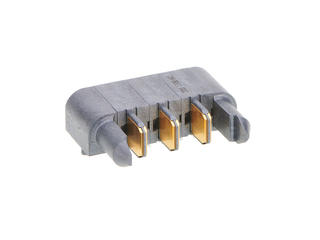

Molex 1710888403	Board Guide Guide Pin	Press-Fit	600 V	All	30 A	-40 °C	105 ░C	UL94 V-0				Black	Gold	Through Hole Right Angle	Plug Male Blades	0.76 Ám	30 Áin	EXTreme Ten60Power	3 Power	1
Molex 1710888404	Board Guide Guide Pin	Press-Fit	600 V	All	30 A	-40 °C	105 ░C	UL94 V-0				Black	Gold	Through Hole Right Angle	Plug Male Blades	0.76 Ám	30 Áin	EXTreme Ten60Power	4 Power	1	4

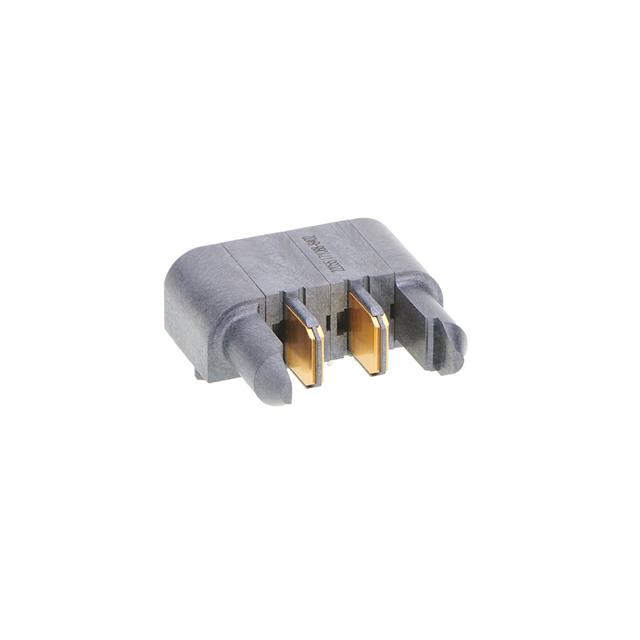

Molex 1710888402	Board Guide Guide Pin	Press-Fit	600 V	All	30 A	-40 °C	105 ░C	UL94 V-0				Black	Gold	Through Hole Right Angle	Plug Male Blades	0.76 Ám	30 Áin	EXTreme Ten60Power	2 Power	1	2
Molex 1710888418	Board Guide Guide Pin	Press-Fit	600 V	All	2.5 A 30 A	-40 °C	105 ░C	UL94 V-0	30	3		Black	Gold	Through Hole Right Angle	Plug Male Pins and Blades	0.76 Ám	30 Áin	EXTreme Ten60Power			33

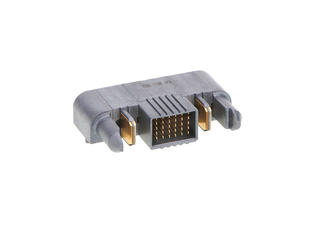

Molex 1710888426	Board Guide Guide Pin	Press-Fit	600 V	All	2.5 A 30 A	-40 °C	105 ░C	UL94 V-0	30	2		Black	Gold	Through Hole Right Angle	Plug Male Pins and Blades	0.76 Ám	30 Áin	EXTreme Ten60Power			31

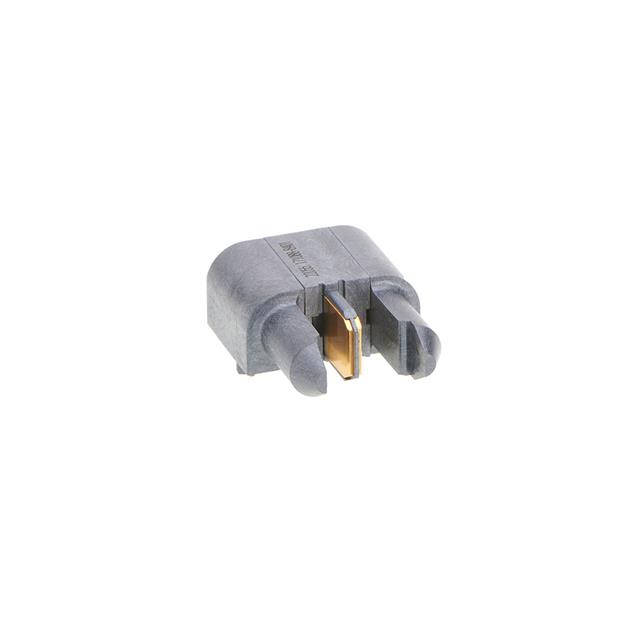

Molex 1710888401	Board Guide Guide Pin	Press-Fit	600 V	All	30 A	-40 °C	105 ░C	UL94 V-0				Black	Gold	Through Hole Right Angle	Plug Male Blades	0.76 Ám	30 Áin	EXTreme Ten60Power	1 Power	1	1

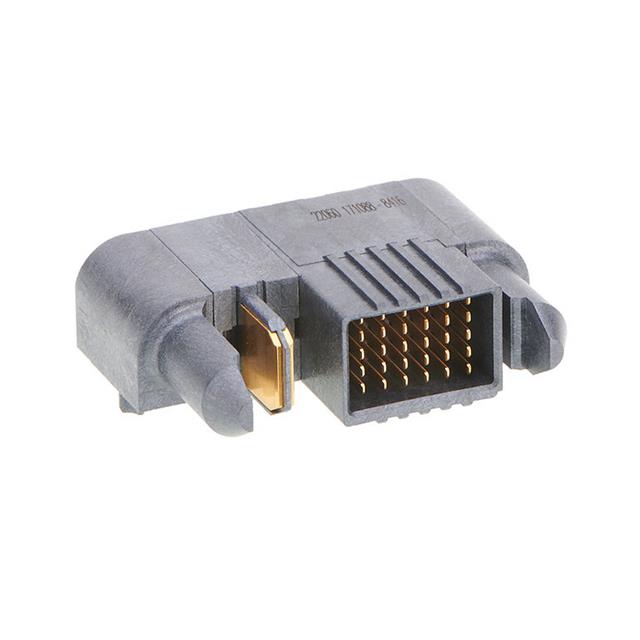

Molex 1710888416	Board Guide Guide Pin	Press-Fit	600 V	All	2.5 A 30 A	-40 °C	105 ░C	UL94 V-0	30	1		Black	Gold	Through Hole Right Angle	Plug Male Pins and Blades	0.76 Ám	30 Áin	EXTreme Ten60Power			31
