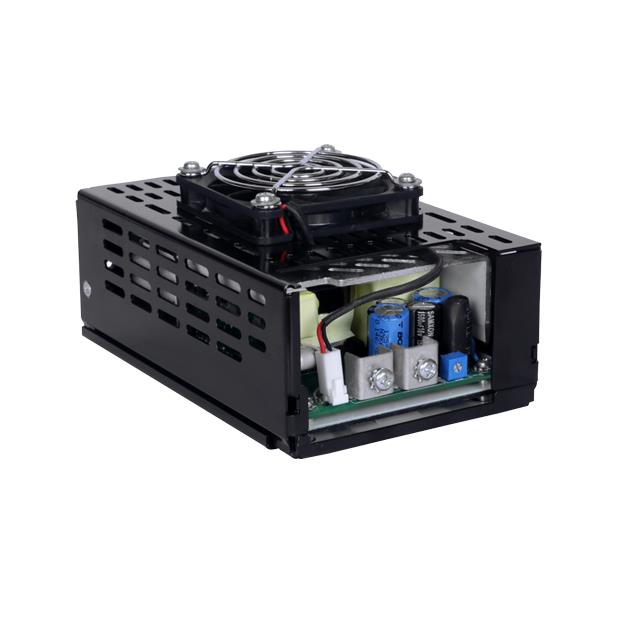

EPG500 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 48V 10.41A 300(CONVECTION)W/500(FORCED AIR)W 20-PIN BOX
| Part | Standard Number | Type | Current - Output 1 | Power (Watts) | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Isolation | Efficiency | Voltage - Output 1 | Approval Agency | Features | Applications | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 62368-1 | Enclosed | 10.41 A | 300 W | 500 W | 3 " | 5 " | 127 mm | 40 mm | 1.58 in | 76.2 mm | 4000 V | 94 % | 48 V | CE | Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Universal Input | ITE (Commercial) | 1 | 264 VAC | 90 VAC | Chassis Mount |
 Bel Fuse Inc. | 62368-1 | Enclosed | 33.33 A | 240 Watts 400 W | 3 " | 5 " | 127 mm | 40 mm | 1.58 in | 76.2 mm | 4000 V | 94 % | 12 V | CE | Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Universal Input | ITE (Commercial) | 1 | 264 VAC | 90 VAC | Chassis Mount | |
 Bel Fuse Inc. | 62368-1 | Open Frame | 24 A | 240 Watts | 288 W | 3 " | 5 " | 127 mm | 40 mm | 1.58 in | 76.2 mm | 4000 V | 94 % | 12 V | CE | Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Universal Input | ITE (Commercial) | 1 | 264 VAC | 90 VAC | Chassis Mount |
Bel Fuse Inc. | 62368-1 | Open Frame | 26.67 A | 240 Watts 400 W | 3 " | 5 " | 127 mm | 40 mm | 1.58 in | 76.2 mm | 4000 V | 94 % | 15 V | CE | Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Standby Output Universal Input | ITE (Commercial) | 1 | 264 VAC | 90 VAC | Chassis Mount | |
 Bel Fuse Inc. | 62368-1 | Open Frame | 20.83 A | 300 W | 500 W | 3 " | 5 " | 127 mm | 40 mm | 1.58 in | 76.2 mm | 4000 V | 94 % | 24 V | CE | Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Universal Input | ITE (Commercial) | 1 | 264 VAC | 90 VAC | Chassis Mount |
 Bel Fuse Inc. | 62368-1 | Open Frame | 33.33 A | 240 Watts 400 W | 3 " | 5 " | 127 mm | 40 mm | 1.58 in | 76.2 mm | 4000 V | 94 % | 12 V | CE | Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Universal Input | ITE (Commercial) | 1 | 264 VAC | 90 VAC | Chassis Mount | |
Bel Fuse Inc. | 62368-1 | Open Frame | 33.33 A | 240 Watts 400 W | 3 " | 5 " | 127 mm | 40 mm | 1.58 in | 76.2 mm | 4000 V | 94 % | 12 V | CE | Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Standby Output Universal Input | ITE (Commercial) | 1 | 264 VAC | 90 VAC | Chassis Mount | |
Bel Fuse Inc. | 62368-1 | Open Frame | 20.83 A | 300 W | 500 W | 3 " | 5 " | 127 mm | 40 mm | 1.58 in | 76.2 mm | 4000 V | 94 % | 24 V | CE | Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Standby Output Universal Input | ITE (Commercial) | 1 | 264 VAC | 90 VAC | Chassis Mount |
Bel Fuse Inc. | 62368-1 | Enclosed | 16.67 A | 300 W | 500 W | 3 " | 5 " | 127 mm | 40 mm | 1.58 in | 76.2 mm | 4000 V | 94 % | 30 V | CE | Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Standby Output Universal Input | ITE (Commercial) | 1 | 264 VAC | 90 VAC | Chassis Mount |
Bel Fuse Inc. | 62368-1 | Open Frame | 10.41 A | 300 W | 500 W | 3 " | 5 " | 127 mm | 40 mm | 1.58 in | 76.2 mm | 4000 V | 94 % | 48 V | CE | Adjustable Output I2C Interface PFC Remote On/Off Remote Sense Universal Input | ITE (Commercial) | 1 | 264 VAC | 90 VAC | Chassis Mount |
