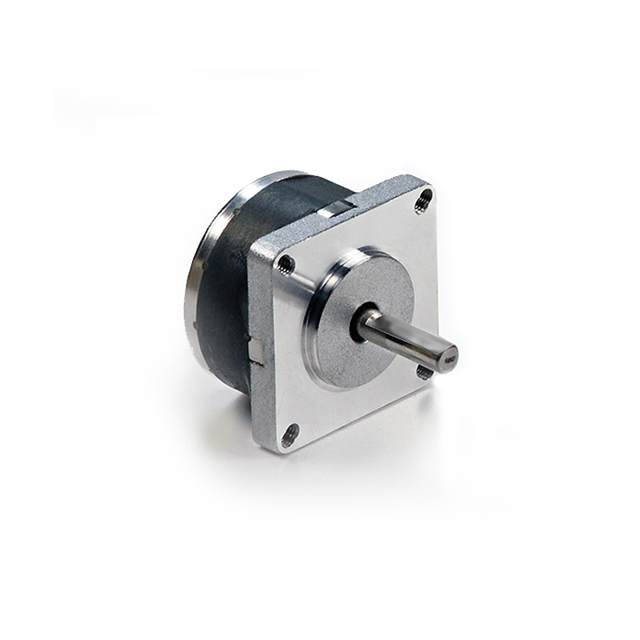

WO-3709V Series
Manufacturer: Lin Engineering
Beta
⌘K
STEPPER MOTOR
| Part | Rotor Inertia | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Voltage - Rated | NEMA Frame Size | Step Angle | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Coil Resistance | Coil Type | Current Rating (Amps) | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Steps per Revolution |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lin Engineering | 0.308 gcm² | 31 mm | 1.22 in | 20 mm | 0.787 in | Round Shaft | -20 ░C | 50 °C | Wire Leads | 24 VDC | 14 | 0.9 ° | 1.44 in | 36.58 mm | 36.58 mm | 1.44 " | 0.197 in | 5 mm | 3 Ohms | Bipolar | 1.2 A | 113 mNm | 16 oz-in | 400 |
