UTP02 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSG FMALE 35POS PNL MT

Part	Note	Type	Contact Shape	Fastening Type	Mounting Feature	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Housing Color	Connector Type	Orientation	Contact Type	Material Flammability Rating	Mounting Type	Number of Positions	Shell Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Size	Shielding	Shell Size - Insert Length	Shell Size - Insert Width	Ingress Protection IP Rating	Ingress Protection Description	Position Types

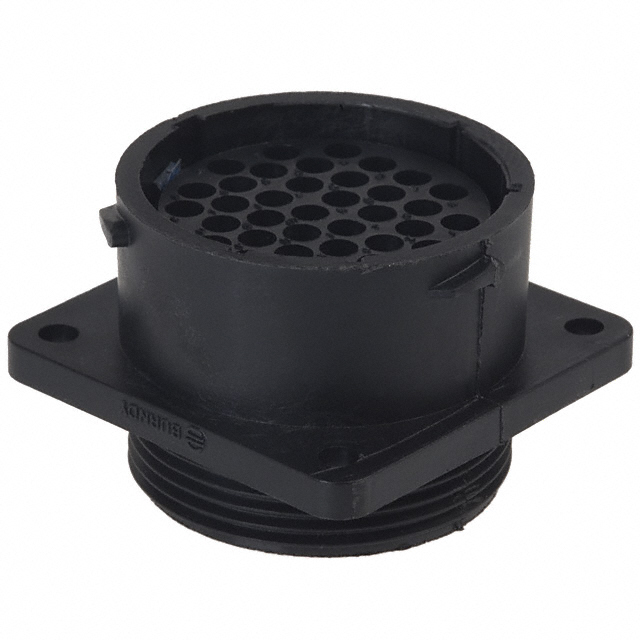

Amphenol Aerospace Operations UTP02235S	Contacts Not Included	For Female Sockets	Circular	Bayonet Lock	Flange	22	35	Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	35	Glass Filled Polyester	125 °C	-25 °C	16 S	Unshielded
Amphenol Aerospace Operations UTP02411P	Contacts Not Included	For Male Pins	Circular	Bayonet Lock	Flange			Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	11	Glass Filled Polyester	125 °C	-25 °C	8 16	Unshielded	24 mm	11 mm

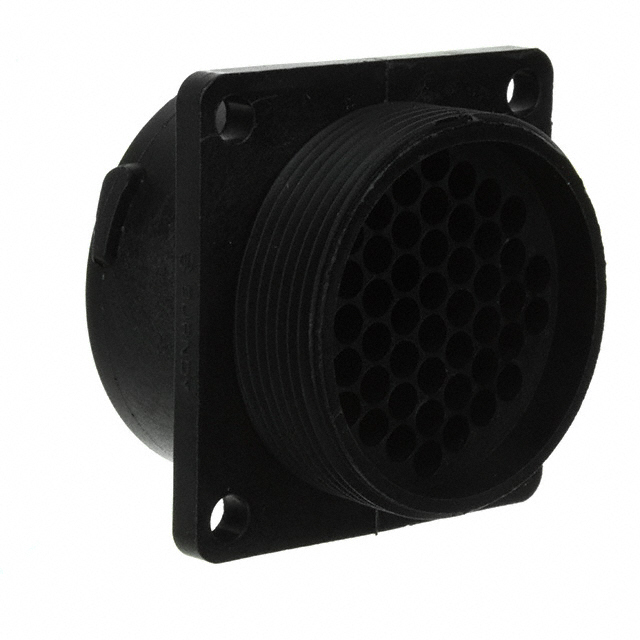

Amphenol Aerospace Operations UTP02448S	Contacts Not Included	For Female Sockets	Circular	Bayonet Lock	Flange	24	48	Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	48	Glass Filled Polyester	125 °C	-25 °C	16 S	Unshielded
Amphenol Aerospace Operations UTP0247P	Contacts Not Included	For Male Pins	Circular	Bayonet Lock	Flange			Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	9	Glass Filled Polyester	125 °C	-25 °C	8 16	Unshielded	24 mm	7 mm

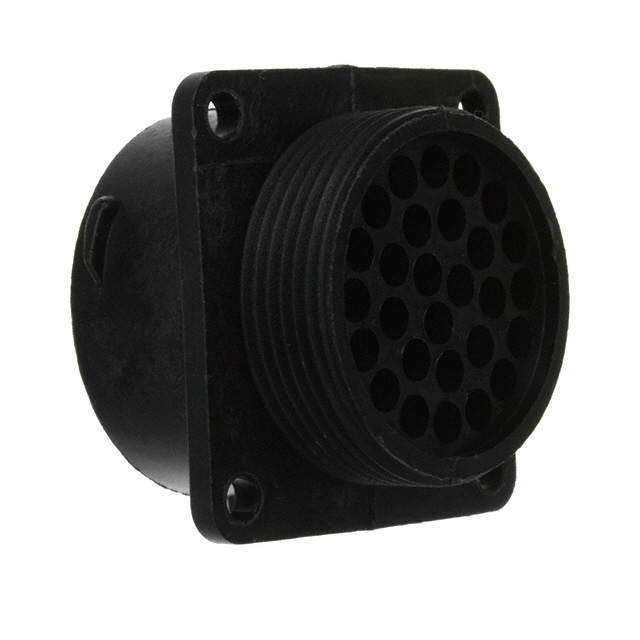

Amphenol Aerospace Operations UTP02028S	Contacts Not Included	For Female Sockets	Circular	Bayonet Lock	Flange	20	28	Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	28	Glass Filled Polyester	125 °C	-25 °C	16 S	Unshielded
Amphenol Aerospace Operations UTP02411PH	Contacts Not Included	For Male Pins	Circular	Bayonet Lock	Flange			Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	11	Glass Filled Polyester	125 °C	-25 °C	8 16	Unshielded	24 mm	11 mm	IP65	Dust Tight Water Resistant
Amphenol Aerospace Operations UTP0247S	Contacts Not Included	For Female Sockets	Circular	Bayonet Lock	Flange			Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	9	Glass Filled Polyester	125 °C	-25 °C	8 16	Unshielded	24 mm	7 mm			PE

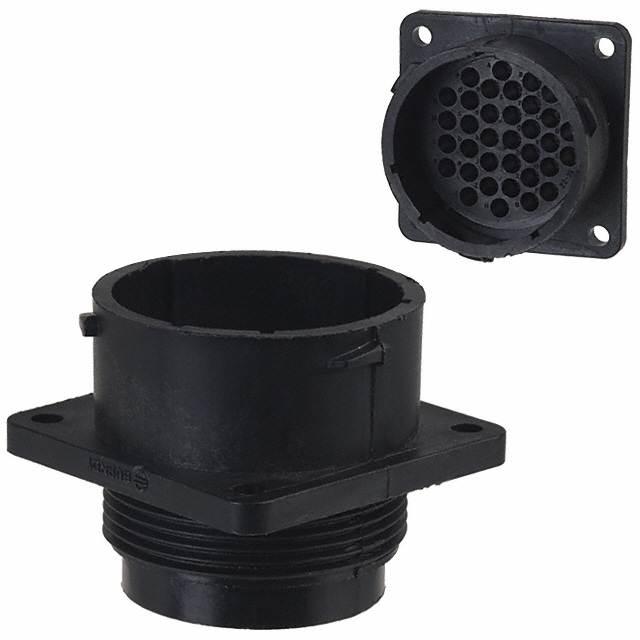

Amphenol Aerospace Operations UTP02235P	Contacts Not Included	For Male Pins	Circular	Bayonet Lock	Flange	22	35	Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	35	Glass Filled Polyester	125 °C	-25 °C	16 S	Unshielded

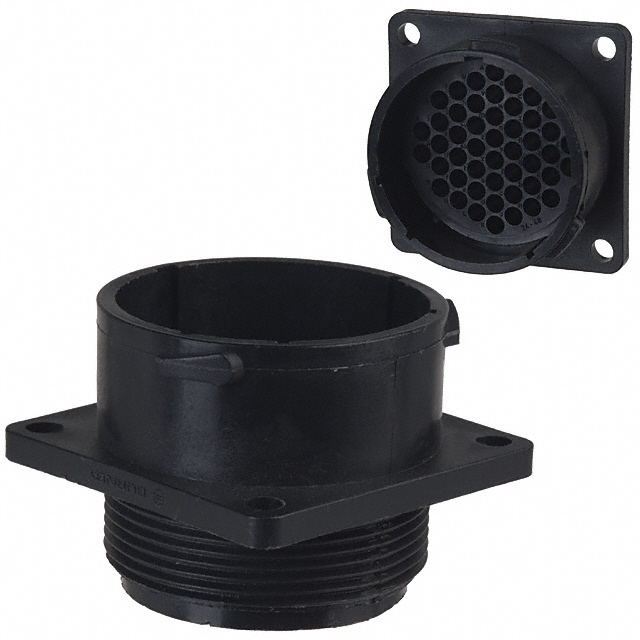

Amphenol Aerospace Operations UTP02448P	Contacts Not Included	For Male Pins	Circular	Bayonet Lock	Flange	24	48	Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	48	Glass Filled Polyester	125 °C	-25 °C	16 S	Unshielded
Amphenol Aerospace Operations UTP02020S	Contacts Not Included	For Female Sockets	Circular	Bayonet Lock	Flange	20	20	Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	20	Glass Filled Polyester	125 °C	-25 °C	16 S	Unshielded					PE
