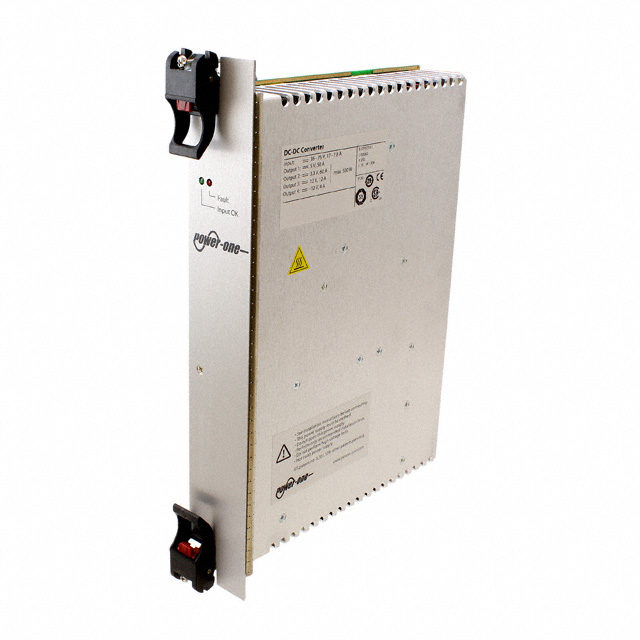

CPD500 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
DC/DC CNVRTR 5V 3.3V +/-12V 500W
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Applications | Voltage - Output 1 | Number of Outputs | Approval Agency | Voltage - Input (Min) [Min] | Type | Mounting Type | Voltage - Output 2 | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Current - Output (Max) | Voltage - Output 4 | Voltage - Input (Max) [Max] | Efficiency | Voltage - Output 3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 169.5 mm | 6.67 " | 10.31 " | 40.3 mm | 1.59 " | 261.9 mm | ITE (Commercial) | 5 V | 4 | CE CSA EN IEC UL | 36 V | Enclosed | Compact PCI® | 3.3 V | 50 °C | -25 °C | 500 W | 4 A 12 A 50 A 60 A | -12 V | 75 V | 84.5 % | 12 V |
