MTRA61274 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

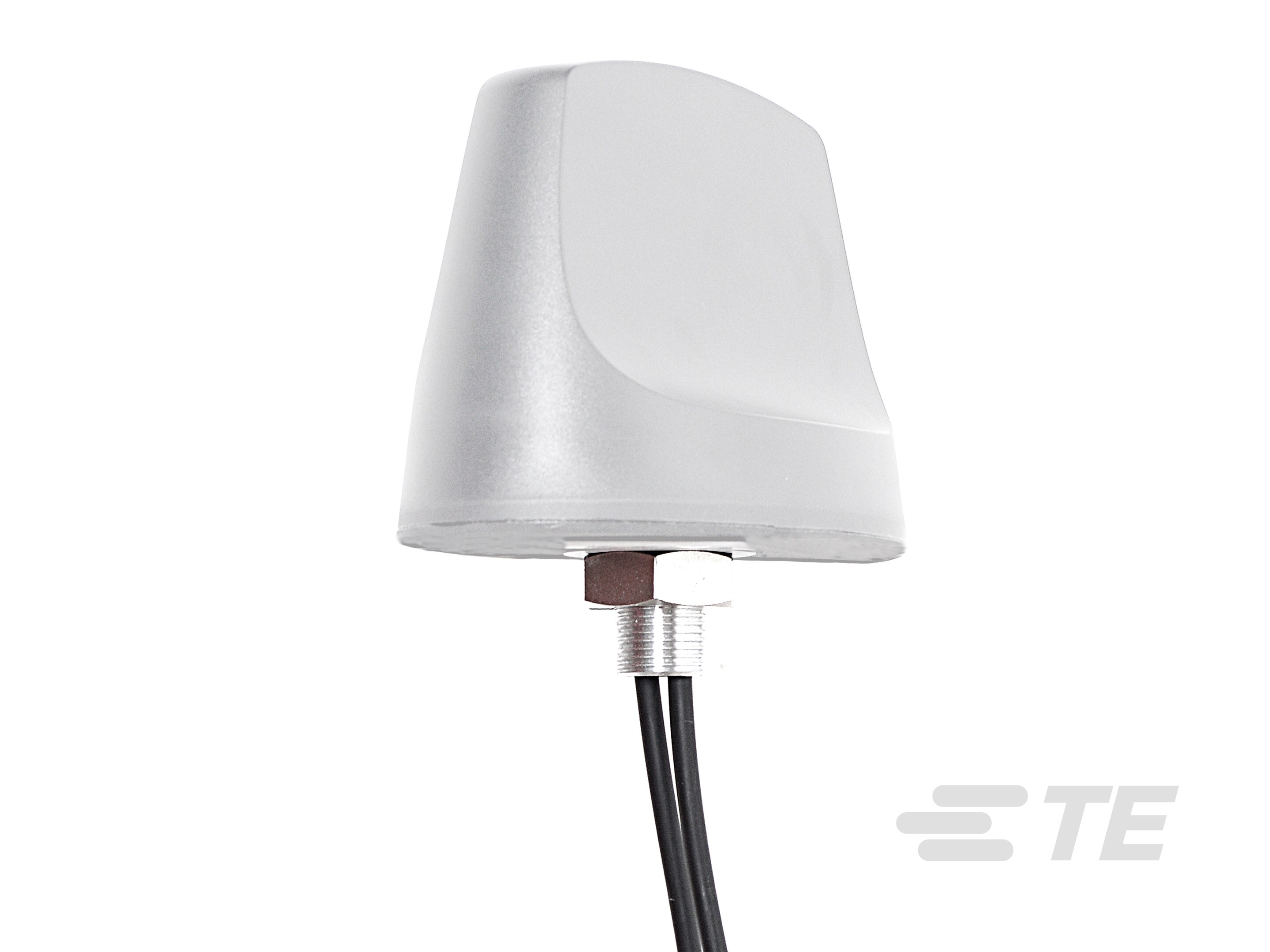

ANTENNAS OMNI,DB,PH,617/1690 MHZ, 2-PORT MIMO, WHT

Part	Ingress Protection	Power - Max [Max]	Number of Bands	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Gain	Applications	Mounting Type	Antenna Type	Features	Frequency (Center/Band)	Frequency Group	VSWR
TE Connectivity AMP Connectors MTRA61274CW2-001	IP67	50 W	10	Cellular WiFi	2.7 GHz 960 MHz	1.35 GHz 617 MHz	2.4 dBi 2.7 dBi 2.8 dBi 2.9 dBi 3.1 dBi 3.5 dBi 3.6 dBi 3.9 dBi	802.11b/g/n GSM LTE WCDMA WLAN	Panel Mount	Module	Cable - 610mm	1.45 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 657.5 MHz 761 MHz 859 MHz 920 MHz	Wide Band	2.5
TE Connectivity AMP Connectors MTRA61274CW2-001	IP67	50 W	10	Cellular WiFi	2.7 GHz 960 MHz	1.35 GHz 617 MHz	2.4 dBi 2.7 dBi 2.8 dBi 2.9 dBi 3.1 dBi 3.5 dBi 3.6 dBi 3.9 dBi	802.11b/g/n GSM LTE WCDMA WLAN	Panel Mount	Module	Cable - 610mm	1.45 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 657.5 MHz 761 MHz 859 MHz 920 MHz	Wide Band	2.5
TE Connectivity AMP Connectors MTRA61274CB2-001	IP67	50 W	10	Cellular WiFi	1.88 GHz 1.99 GHz 2.18 GHz 2.5 GHz 698 MHz 824 MHz 894 MHz 960 MHz 1550 MHz	1.35 GHz 1.69 GHz 1.85 GHz 1.91 GHz 2.3 GHz 617 MHz 698 MHz 824 MHz 880 MHz	2.4 dBi 2.7 dBi 2.8 dBi 2.9 dBi 3.1 dBi 3.5 dBi 3.6 dBi 3.9 dBi	802.11b/g/n GSM LTE WCDMA WLAN	Panel Mount	Module	Cable - 610mm	1.45 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 657.5 MHz 761 MHz 859 MHz 920 MHz	Wide Band	2.5
TE Connectivity AMP Connectors MTRA61274CB2-001	IP67	50 W	10	Cellular WiFi	1.88 GHz 1.99 GHz 2.18 GHz 2.5 GHz 698 MHz 824 MHz 894 MHz 960 MHz 1550 MHz	1.35 GHz 1.69 GHz 1.85 GHz 1.91 GHz 2.3 GHz 617 MHz 698 MHz 824 MHz 880 MHz	2.4 dBi 2.7 dBi 2.8 dBi 2.9 dBi 3.1 dBi 3.5 dBi 3.6 dBi 3.9 dBi	802.11b/g/n GSM LTE WCDMA WLAN	Panel Mount	Module	Cable - 610mm	1.45 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 657.5 MHz 761 MHz 859 MHz 920 MHz	Wide Band	2.5
