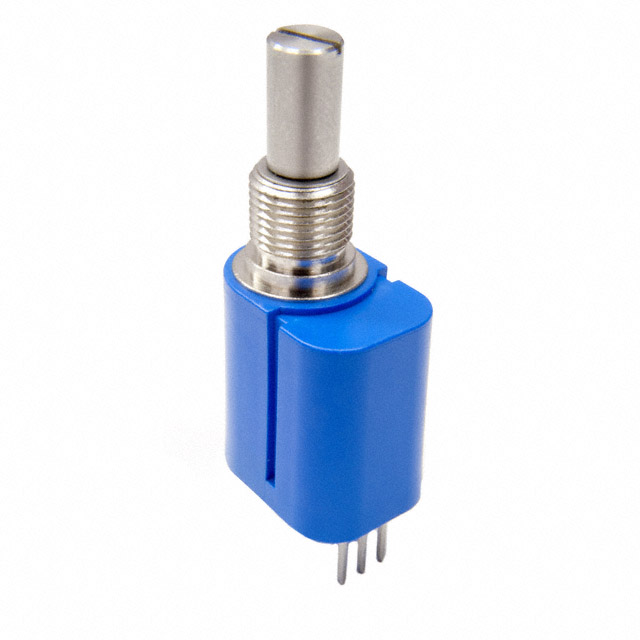

AMM20B Series

Catalog

SENSOR ROTARY 3960DEG PC PIN

Part	Output	Mounting Type	Output Signal	Technology	Linearity	Rotation Angle - Electrical, Mechanical [Min]	Rotation Angle - Electrical, Mechanical [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	For Measuring	Actuator Type	Termination Style
Bourns Inc. AMM20B5A1BHASL356	Analog Voltage	Panel Mount	Clockwise Increase	Hall Effect	0.5 %	0 ° 10 °	2520 ° 3960 °	Module Slotted Shaft	125 °C	-40 C	Rotary Position	Slotted Shaft	PC Pin
Bourns Inc. AMM20B5A1BLASL356	Analog Voltage	Panel Mount	Clockwise Increase	Hall Effect	0.5 %	0 ° 10 °	2520 ° 3960 °	Module Slotted Shaft	125 °C	-40 C	Rotary Position	Slotted Shaft	PC Pin
Bourns Inc. AMM20B5A1BHASL364	Analog Voltage	Panel Mount	Clockwise Increase	Hall Effect	0.5 %	0 ° 10 °	2880 ° 3960 °	Module Slotted Shaft	125 °C	-40 C	Rotary Position	Slotted Shaft	PC Pin
Bourns Inc. AMM20B5A1BHASL148	Analog Voltage	Panel Mount		Hall Effect	0.5 %	0 ° 10 °	2160 ° 3960 °	Module Slotted Shaft	125 °C	-40 C	Rotary Position	Slotted Shaft	PC Pin
Bourns Inc. AMM20B5A1CLASL324	Analog Voltage	Panel Mount	Clockwise Increase	Hall Effect	0.3 %	0 °	1080 ° 3960 °	Module Slotted Shaft	125 °C	-40 C	Rotary Position	Slotted Shaft	PC Pin
Bourns Inc. AMM20B5A1BHASL380	Analog Voltage	Panel Mount	Clockwise Increase	Hall Effect	0.5 %	0 ° 10 °	3600 ° 3960 °	Module Slotted Shaft	125 °C	-40 C	Rotary Position	Slotted Shaft	PC Pin
Bourns Inc. AMM20B5A1BLASL332	Analog Voltage	Panel Mount	Clockwise Increase	Hall Effect	0.5 %	0 ° 10 °	1440 ° 3960 °	Module Slotted Shaft	125 °C	-40 C	Rotary Position	Slotted Shaft	PC Pin
Bourns Inc. AMM20B5A1BHASL348	Analog Voltage	Panel Mount	Clockwise Increase	Hall Effect	0.5 %	0 ° 10 °	2160 ° 3960 °	Module Slotted Shaft	125 °C	-40 C	Rotary Position	Slotted Shaft	PC Pin
Bourns Inc. AMM20B5A1BLASL148	Analog Voltage	Panel Mount		Hall Effect	0.5 %	0 ° 10 °	2160 ° 3960 °	Module Slotted Shaft	125 °C	-40 C	Rotary Position	Slotted Shaft	PC Pin
Bourns Inc. AMM20B5A1BLASL156	Analog Voltage	Panel Mount		Hall Effect	0.5 %	0 ° 10 °	2520 ° 3960 °	Module Slotted Shaft	125 °C	-40 C	Rotary Position	Slotted Shaft	PC Pin
