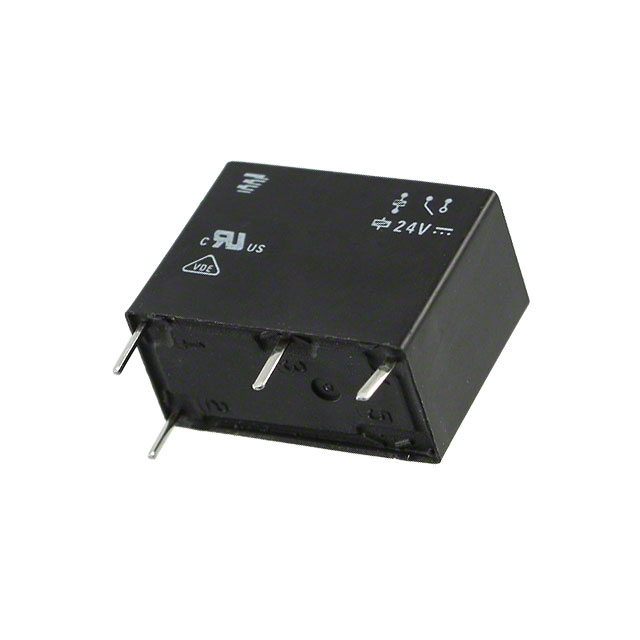

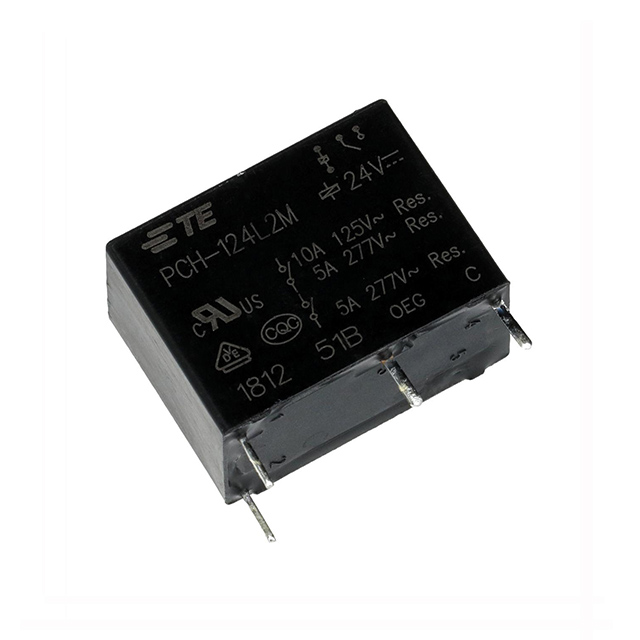

PCH-124 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPST 5A 24V
| Part | Coil Resistance | Seal Rating | Must Release Voltage | Coil Voltage | Must Operate Voltage | Coil Insulation | Operate Time | Termination Style | Contact Material | Coil Type | Switching Voltage [Max] | Contact Form | Load - Max Switching | Release Time | Contact Rating (Current) | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Relay Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.88 kOhms | Sealed - Flux Protection | 1.2 VDC | 24 VDC | 18 VDC | Class F | 10 ms | PC Pin | Silver Tin Oxide (AgSnO) | Non Latching | 30 VDC 277 VAC | SPST-NO (1 Form A) | 150 W 1385 VA | 5 ms | 5 A | CQC cURus VDE | 85 °C | -40 C | 8.3 mA | General Purpose | Through Hole |
 TE Connectivity AMP Connectors | 1440 Ohms | Sealed - Fully | 1.2 VDC | 24 VDC | 16.8 VDC | Class F | 10 ms | PC Pin | Silver Tin Oxide (AgSnO) | Non Latching | 30 VDC 277 VAC | SPDT (1 Form C) | 150 W 1385 VA | 5 ms | 5 A | CQC cURus VDE | 85 °C | -40 C | 16.7 mA | General Purpose | Through Hole |
TE Connectivity AMP Connectors | 1440 Ohms | Sealed - Flux Protection | 1.2 VDC | 24 VDC | 16.8 VDC | Class F | 10 ms | PC Pin | Silver Tin Oxide (AgSnO) | Non Latching | 30 VDC 277 VAC | SPDT (1 Form C) | 150 W 1385 VA | 5 ms | 5 A | CQC cURus VDE | 85 °C | -40 C | 16.7 mA | General Purpose | Through Hole |
 TE Connectivity AMP Connectors | 1440 Ohms | Sealed - Flux Protection | 1.2 VDC | 24 VDC | 16.8 VDC | Class F | 10 ms | PC Pin | Silver Tin Oxide (AgSnO) | Non Latching | 30 VDC 277 VAC | SPDT (1 Form C) | 150 W 1385 VA | 5 ms | 5 A | CQC cURus VDE | 85 °C | -40 C | 16.7 mA | General Purpose | Through Hole |
 TE Connectivity AMP Connectors | 2.88 kOhms | Sealed - Fully | 1.2 VDC | 24 VDC | 18 VDC | Class F | 10 ms | PC Pin | Silver Tin Oxide (AgSnO) | Non Latching | 30 VDC 277 VAC | SPST-NO (1 Form A) | 150 W 1385 VA | 5 ms | 5 A | CQC cURus VDE | 85 °C | -40 C | 8.3 mA | General Purpose | Through Hole |
