1904117 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

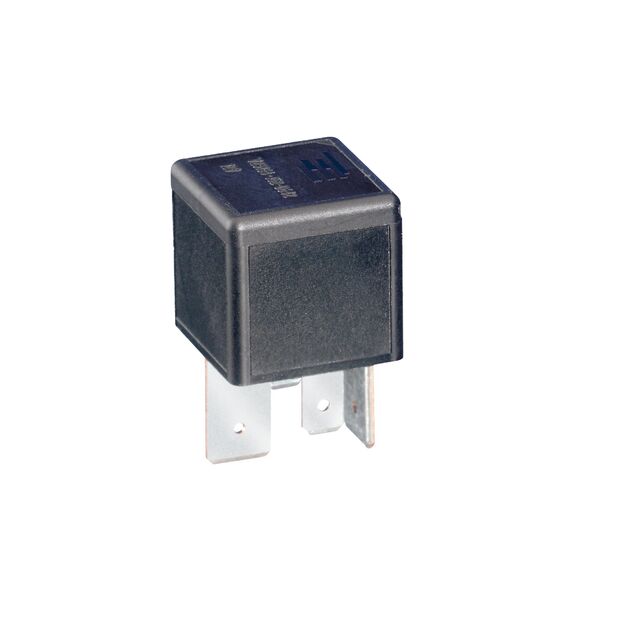

RELAY GEN PURPOSE SPST 70A 24V
| Part | Coil Resistance | Contact Material | Release Time | Coil Type | Must Release Voltage | Termination Style | Features | Contact Form | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Relay Type | Contact Rating (Current) | Operate Time | Coil Voltage | Coil Current | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 288 Ohms | Silver Alloy | 2 ms | Non Latching | 4 VDC | Plug In | Resistor | SPST-NO (1 Form A) | Socketable | 125 °C | -40 C | General Purpose | 70 A | 7 ms | 24 VDC | 83.3 mA | 16 VDC |
